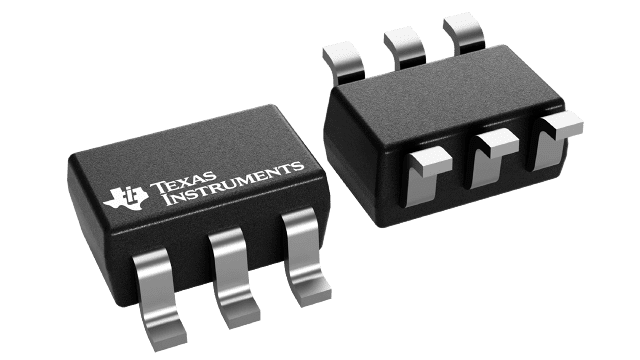

TXS0101DCKT

Texas Instruments 逻辑 - 变换器
  • 封装：*
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：*
  • 参考价格：$0.882-$1.26

更新日期：2024-04-01

TXS0101DCKT

Texas Instruments 逻辑 - 变换器

产品简介：适用于漏极开路和推挽应用的 1 位双向电压电平转换器

查看详情
  • 封装：*
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：*
  • 参考价格：$0.882-$1.26

TXS0101DCKT 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TXS0101DCKT 中文资料属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：逻辑 - 变换器
  • 系列：-
  • 逻辑功能：变换器，双向，开路漏极
  • 位数：1
  • 输入类型：电压
  • 输出类型：电压
  • 数据速率：24Mbps
  • 通道数：1
  • 输出/通道数目：1
  • 差分 - 输入:输出：无/无
  • 传输延迟（最大）：4.6ns
  • 电源电压：1.65 V ~ 3.6 V，2.3 V ~ 5.5 V
  • 工作温度：-40°C ~ 85°C
  • 封装/外壳：*
  • 供应商设备封装：*
  • 包装：*
  • 其它名称：296-32602-6

产品特性

  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • ESD Protection Exceeds JESD 22 A Port 2500 V Human-Body Model (A114-B) 200 V Machine Model (A115-A) 1500 V Charged-Device Model (C101) B Port 8 kV Human-Body Model (A114-B) 200 V Machine Model (A115-A) 1500 V Charged-Device Model (C101)
  • A Port 2500 V Human-Body Model (A114-B) 200 V Machine Model (A115-A) 1500 V Charged-Device Model (C101)
  • 2500 V Human-Body Model (A114-B)
  • 200 V Machine Model (A115-A)
  • 1500 V Charged-Device Model (C101)
  • B Port 8 kV Human-Body Model (A114-B) 200 V Machine Model (A115-A) 1500 V Charged-Device Model (C101)
  • 8 kV Human-Body Model (A114-B)
  • 200 V Machine Model (A115-A)
  • 1500 V Charged-Device Model (C101)
  • No Direction-Control Signal Needed
  • Maximum Data Rates 24 Mbps (Push Pull) 2 Mbps (Open Drain)
  • 24 Mbps (Push Pull)
  • 2 Mbps (Open Drain)
  • Available in the Texas Instruments NanoFree™ Package
  • 1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B port (VCCA  ≤ VCCB)
  • VCC Isolation Feature – If Either VCC Input Is at GND, Both Ports Are in the High-Impedance State
  • No Power-Supply Sequencing Required – Either VCCA or VCCB Can be Ramped First
  • Ioff Supports Partial-Power-Down Mode Operation

产品概述

This one-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 3.6 V. The B port is designed to track VCCB. VCCA must be less than or equal to VCCB. VCCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low voltage bidirectional translation between any of the 1.8 V, 2.5 V, 3.3 V, and 5 V voltage nodes.When the output-enable (OE) input is low, all outputs are placed in the high-impedance state.To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull-down resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
查看全部

TXS0101DCKT 数据手册

数据手册 说明 数量 操作
TXS0101DCKT

Voltage Level Translator Bidirectional 1 Circuit 1 Channel 24Mbps SC-70-6

 32页,1.07M 查看

TXS0101DCKT 电路图

TXS0101DCKT 电路图

TXS0101DCKT 电路图
