TPS51632QRSMTQ1

Texas Instruments 特殊用途稳压器

更新日期：2024-04-01 00:04:00

TPS51632QRSMTQ1

Texas Instruments 特殊用途稳压器

产品简介：适用于汽车应用的 NVIDIA Tegra 2.5V 至 24V、三相/两相/单相降压控制器

查看详情

TPS51632QRSMTQ1 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TPS51632QRSMTQ1 中文资料属性参数

  • 现有数量：245现货
  • 价格：1 : ￥73.93000剪切带（CT）250 : ￥52.80260卷带（TR）
  • 系列：Automotive, AEC-Q100, D-CAP+?
  • 包装：卷带（TR）剪切带（CT）Digi-Reel? 得捷定制卷带
  • 产品状态：在售
  • 应用：控制器，NVIDIA Tegra?
  • 电压 - 输入：2.5V ~ 24V
  • 输出数：1
  • 电压 - 输出：0.5V ~ 1.52V
  • 工作温度：-40°C ~ 125°C
  • 安装类型：表面贴装型
  • 封装/外壳：32-VFQFN 裸露焊盘
  • 供应商器件封装：32-VQFN（4x4）

产品特性

  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results: Device Temperature Grade 1: –40°C to 125°C Device Human Body Model ESD Classification Level H2 Device Charged Device Model ESD Classification Level C3B
  • Device Temperature Grade 1: –40°C to 125°C
  • Device Human Body Model ESD Classification Level H2
  • Device Charged Device Model ESD Classification Level C3B
  • Selectable Phase Count: 3, 2, or 1
  • Dynamic Voltage and Frequency Scaling (DVFS) Digital Interface
  • I2C Interface for VID Control and Telemetry With Eight Device Addresses
  • D-CAP+ Control for Fast Transient Response
  • Dynamic Phase Add and Drop Operation
  • Switching Frequency: 300 kHz to 1 MHz
  • Digital Current Monitor
  • 7-Bit DAC Output Range: 0.50-V to 1.52-V
  • Optimized Efficiency at Light and Heavy Loads
  • Accurate, Adjustable Voltage Positioning, or Zero Slope Load-Line
  • Patented AutoBalance Phase Balancing
  • Selectable 8-Level Current Limit
  • 2.5-V to 24-V Conversion Voltage Range
  • 4-mm x 4-mm, 32-Pin, VQFN Power-Pad Package

产品概述

The TPS51632-Q1 device is a driverless step-down controller with serial control. Advanced features such as D-CAP+ architecture provide fast transient response, lowest output capacitance, and high efficiency. The TPS51632-Q1 device supports both I2C and DVFS interfaces for dynamic control of the output voltage and current monitor telemetry. It also has dynamic phase add and drop control and enters single-phase, discontinuous-current-mode operation to maximize light-load efficiency.The TPS51632-Q1 device supports Tegra requirements for PGOOD interrupts for MaxVID violations and near OCP conditions. This interrupt behavior is programmable via I2C. Adjustable control of VCORE slew rate and voltage positioning round out the features. The TPS51604-Q1 driver is designed specifically for this generation of controllers. The TPS51632-Q1 device is packaged in a space saving, thermally-enhanced 32-pin VQFN and is rated to
查看全部

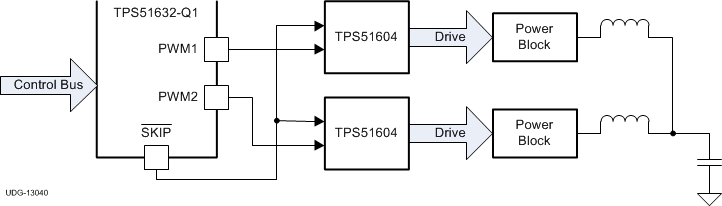

TPS51632QRSMTQ1 电路图

TPS51632QRSMTQ1 电路图

TPS51632QRSMTQ1 电路图
