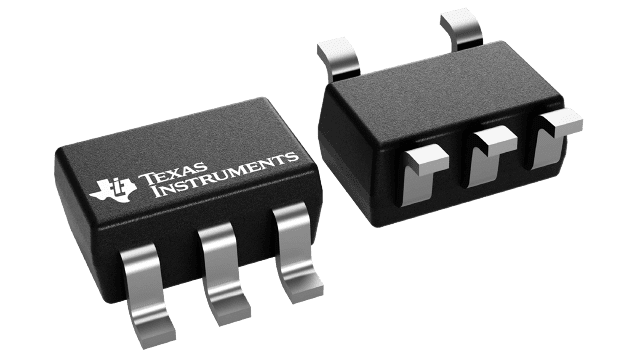

SN74AUP1G07DCKT

更新日期：2024-04-01 00:04:00

产品简介：具有漏极开路输出的单路 0.8V 至 3.6V 低功耗缓冲器

查看详情

SN74AUP1G07DCKT 供应商

Available in the Ultra Small 0.64 mm2 Package (DPW) with 0.5-mm Pitch
Low Static-Power Consumption (ICC = 0.9 µA Maximum)
Low Dynamic-Power Consumption (Cpd = 1 pF Typical at 3.3 V)
Low Input Capacitance (Ci = 1.5 pF Typical)
Low Noise – Overshoot and Undershoot <10% of VCC
Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at the Input (Vhys = 250 mV Typ at 3.3 V)
Wide Operating VCC Range of 0.8 V to 3.6 V
Optimized for 3.3-V Operation
3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
tpd = 3.3 ns Maximum at 3.3 V
Suitable for Point-to-Point Applications
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22 2000-V Human-Body Model (A114-B, Class II) 1000-V Charged-Device Model (C101)
2000-V Human-Body Model (A114-B, Class II)
1000-V Charged-Device Model (C101)

The SN74AUP1G07 device is a single buffer gate with open drain output that operates from 0.8 V to 3.6 V.

查看全部

数据手册	说明	数量	操作
SN74AUP1G07DCKT	LOW-POWER SINGLE BUFFER/DRIVER WITH OPEN-DRAIN OUTPUTS	12 Pages页,287K	查看
SN74AUP1G07DCKT	Buffer, Non-Inverting 1 Element 1 Bit per Element Open Drain Output SC-70-5	35页,1.58M	查看
SN74AUP1G07DCKTE4	LOW-POWER SINGLE BUFFER/DRIVER WITH OPEN-DRAIN OUTPUTS	12 Pages页,287K	查看
