LM10524TME/NOPB

Texas Instruments 特殊用途稳压器

更新日期：2024-04-01 00:04:00

LM10524TME/NOPB

Texas Instruments 特殊用途稳压器

产品简介：用于固态驱动器的三路降压电源管理 IC (PMIC)

查看详情

LM10524TME/NOPB 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

LM10524TME/NOPB 中文资料属性参数

  • 现有数量：57现货1,500Factory
  • 价格：1 : ￥51.28000剪切带（CT）250 : ￥36.62520卷带（TR）
  • 系列：-
  • 包装：卷带（TR）剪切带（CT）Digi-Reel? 得捷定制卷带
  • 产品状态：在售
  • 应用：转换器，固态硬盘
  • 电压 - 输入：3.3V ~ 5.5V
  • 输出数：3
  • 电压 - 输出：多重
  • 工作温度：-30°C ~ 85°C（TA）
  • 安装类型：表面贴装型
  • 封装/外壳：46-WFBGA，DSBGA
  • 供应商器件封装：46-DSBGA（2.82x3.22）

产品特性

  • Three Highly Efficient Programmable Buck Regulators Integrated FETs with Low RDSON Bucks Operate with Their Phases Shifted to Reduce the Input Current Ripple and Capacitor Size Programmable Output Voltage via the SPI Interface Over and Under-Voltage-Lockout Automatic Internal Soft Start with Power-On-Reset Current Overload and Thermal Shutdown Protection PFM Mode for High Efficiency at Light Load Conditions
  • Integrated FETs with Low RDSON
  • Bucks Operate with Their Phases Shifted to Reduce the Input Current Ripple and Capacitor Size
  • Programmable Output Voltage via the SPI Interface
  • Over and Under-Voltage-Lockout
  • Automatic Internal Soft Start with Power-On-Reset
  • Current Overload and Thermal Shutdown Protection
  • PFM Mode for High Efficiency at Light Load Conditions
  • Power-Down Data Protection Enhances Data Integrity
  • Bypass Mode Available on Buck 1
  • Sleep Mode to Save Power During Idle Times DEVSLP Function
  • DEVSLP Function
  • SPI-Programmable Interrupt Comparator (2.0V to 4.0V)
  • Factory Programmable Startup Sequencing for Varied Controllers
  • Fast Startup for all Voltage Rails in about 3.5ms to PWR_OK
  • Fast Turn-off / Active Discharge on Regulator Outputs
  • Single input rail with wide range: 3.3 to 5.5V
  • Programmable Buck Regulator Outputs: Buck 1: 1.1V to 3.6V; 1.6A Buck 2: 1.1V to 3.6V; 1A Buck 3: 0.7V to 1.95V; 2.5A
  • Buck 1: 1.1V to 3.6V; 1.6A
  • Buck 2: 1.1V to 3.6V; 1A
  • Buck 3: 0.7V to 1.95V; 2.5A
  • ±3% feedback voltage accuracy
  • Up to 95% efficient buck regulators
  • 2MHz switching frequency for smaller inductor size
  • 2.815mm, 3.215mm, 0.4mm pitch, 46 bump micro SMD package
  • Solid-State Drives

产品概述

LM10524 is an advanced PMU containing three configurable, high-efficiency buck regulators for supplying variable voltages. The device is ideal for supporting ASIC and SOC designs for SSD and Flash drives.The LM10524 can operate cooperatively with an ASIC to optimize the supply voltage for low-power conditions and to control power saving modes via the SPI interface.
查看全部

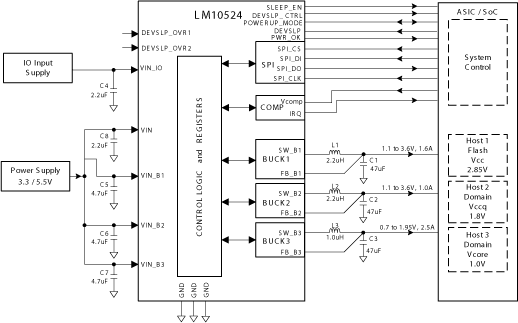

LM10524TME/NOPB 电路图

LM10524TME/NOPB 电路图

LM10524TME/NOPB 电路图
