LM10502TLE/NOPB

Texas Instruments 电源管理 - 专用

更新日期：2024-04-01 00:04:00

LM10502TLE/NOPB

Texas Instruments 电源管理 - 专用

产品简介：2MHz、1A/1A 双路降压转换器 + 低压降线性稳压器

查看详情

LM10502TLE/NOPB 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

LM10502TLE/NOPB 中文资料属性参数

  • 现有数量：250现货3,750Factory
  • 价格：1 : ￥28.30000剪切带（CT）250 : ￥19.78128卷带（TR）
  • 系列：-
  • 包装：卷带（TR）剪切带（CT）Digi-Reel? 得捷定制卷带
  • 产品状态：在售
  • 应用：固态驱动器（SSD）
  • 电流 - 供电：60μA
  • 电压 - 供电：3V ~ 5.5V
  • 工作温度：-30°C ~ 85°C
  • 安装类型：表面贴装型
  • 封装/外壳：25-WFBGA，DSBGA
  • 供应商器件封装：25-DSBGA

产品特性

  • Two Highly Efficient Programmable Buck Regulators Integrated FETs with Low RDSON Bucks Operate with Their Phases Shifted to Reduce the Input Current Ripple and Capacitor Size Programmable Output Voltage via the SPI interface Overvoltage and Undervoltage Lockout Automatic Internal Soft Start with Power-on Reset PFM Mode for Low-Load, High-Efficiency Operation
  • Integrated FETs with Low RDSON
  • Bucks Operate with Their Phases Shifted to Reduce the Input Current Ripple and Capacitor Size
  • Programmable Output Voltage via the SPI interface
  • Overvoltage and Undervoltage Lockout
  • Automatic Internal Soft Start with Power-on Reset
  • PFM Mode for Low-Load, High-Efficiency Operation
  • Low-Dropout LDO 3.0V, 250 mA
  • SPI-Programmable Interrupt Comparator (2.0V to 4.0V) to Monitor VIN
  • LM10502 - Programmable Buck Regulators: Buck 1: 1.1V to 3.6V; 1A Buck 2: 0.7V to 1.335V; 1A
  • Buck 1: 1.1V to 3.6V; 1A
  • Buck 2: 0.7V to 1.335V; 1A
  • ±3% Feedback Voltage Accuracy
  • Up to 95% Efficient Buck Regulators
  • 2MHz Switching Frequency for Smaller Inductor Size
  • 2.5 7times; 2.5 mm, 0.5 mm Pitch DSBGA Package

产品概述

The LM10502 are advanced PMUs each containing two configurable, high-efficiency buck regulators for supplying variable voltages. The device is ideal for supporting ASIC and SOC designs for Solid-State and Flash drives.The LM10502 operate cooperatively with the application ASIC to optimize the supply voltage for low-power conditions and Power Saving modes via the SPI interface. It also supports a 250 mA LDO and a programmable Interrupt Comparator to monitor VIN.
查看全部

LM10502TLE/NOPB 数据手册

数据手册 说明 数量 操作
LM10502TLE/NOPB

Solid State Drives (SSD) PMIC 25-DSBGA (2.46x2.46)

 35页,928K 查看

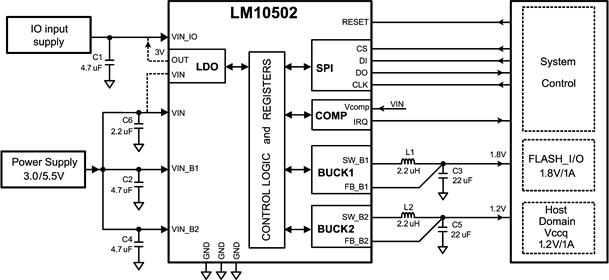

LM10502TLE/NOPB 电路图

LM10502TLE/NOPB 电路图

LM10502TLE/NOPB 电路图
