产品简介：采用 4x5 SON 小型封装的 40A 同步降压 NexFET 智能功率级
查看详情CSD95496QVMT 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
原厂原装
22+ -
3288
-
上海市
-
-
-
一级代理原装
-
TI(德州仪器)
-
VSON-18
2022+ -
12000
-
上海市
-
-
-
原装可开发票
CSD95496QVMT 中文资料属性参数
- 现有数量：240现货10,000Factory
- 价格：1 : ￥36.01000剪切带（CT）250 : ￥25.12012卷带（TR）
- 系列：NexFET?
- 包装：卷带（TR）剪切带（CT）? 得捷定制卷带
- 产品状态：在售
- 输出配置：半桥（3）
- 应用：同步降压转换器
- 接口：PWM
- 负载类型：电感，电容性
- 技术：功率 MOSFET
- 导通电阻（典型值）：-
- 电流 - 输出/通道：40A
- 电流 - 峰值输出：60A
- 电压 - 供电：4.5V ~ 5.5V
- 电压 - 负载：4.5V ~ 16V
- 工作温度：-40°C ~ 125°C（TJ）
- 特性：自举电路
- 故障保护：击穿
- 安装类型：表面贴装型
- 封装/外壳：18-PowerTFDFN
- 供应商器件封装：18-VSON（5x4）
产品特性
- 40-A Continuous Operating Current Capability
- Over 93% System Efficiency at 20 A
- High-Frequency Operation (up to 1.25 MHz)
- Diode Emulation Function
- Temperature Compensated Bi-Directional Current Sense
- Analog Temperature Output
- Fault Monitoring
- 3.3-V and 5-V PWM Signal Compatible
- Tri-State PWM Input
- Integrated Bootstrap Switch
- Optimized Dead Time for Shoot-Through Protection
- High-Density VSON 4-mm × 5-mm Footprint
- Ultra-Low-Inductance Package
- System Optimized PCB Footprint
- RoHS Compliant – Lead-Free Terminal Plating
- Halogen Free
产品概述
The CSD95496QVM NexFET™ power stage is a highly
optimized design for use in a high-power, high-density synchronous buck converter. This product
integrates the driver IC and power MOSFETs to complete the power stage switching function. This
combination produces high-current, high-efficiency, and high-speed switching capability in a small
4-mm × 5-mm outline package. It also integrates the accurate current sensing and temperature
sensing functionality to simplify system design and improve accuracy. In addition, the PCB
footprint has been optimized to help reduce design time and simplify the completion of the overall
system design.
CSD95496QVMT 电路图

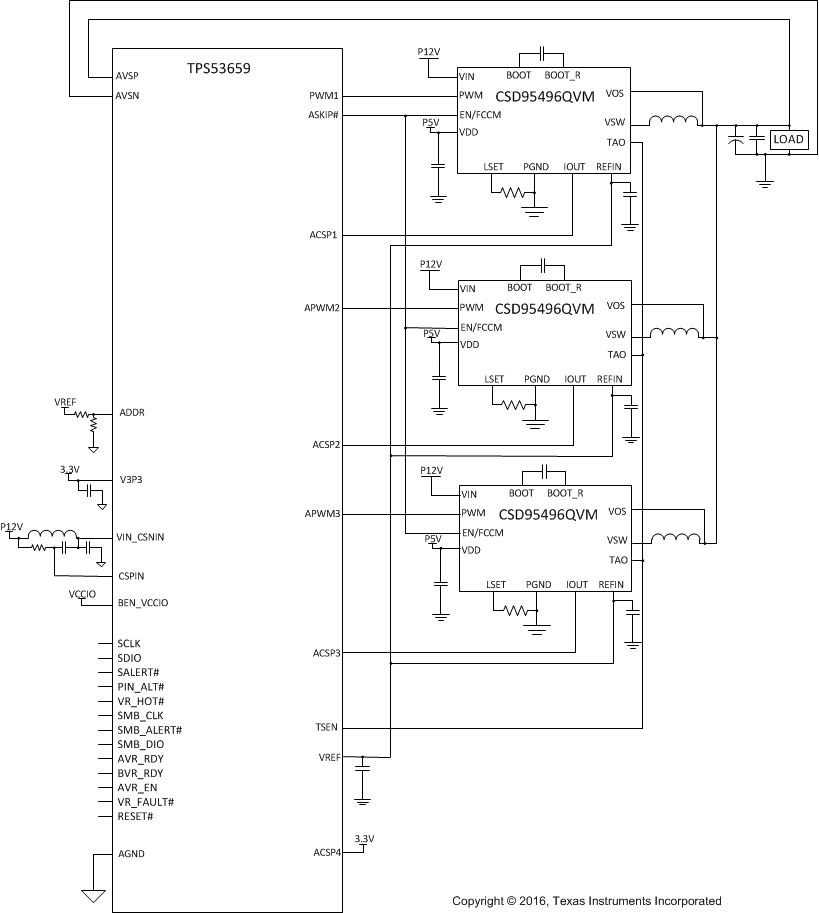

CSD95496QVMT 电路图
