CC1120RHBT 中文资料属性参数

现有数量：0现货查看交期
价格：1 : ￥52.07000剪切带（CT）250 : ￥34.40048卷带（TR）
系列：-
包装：卷带（TR）剪切带（CT）? 得捷定制卷带
产品状态：在售
类型：TxRx + MCU
射频系列/标准：通用 ISM < 1GHz
协议：-
调制：2FSK，2GFSK，4FSK，4GFSK，MSK，OOK
频率：164MHz ~ 192MHz，274MHz ~ 320MHz，410MHz ~ 480MHz，820MHz ~ 960MHz
数据速率（最大值）：200kbps
功率 - 输出：16dBm
灵敏度：-127dBm
存储容量：4kB ROM，256B RAM
串行接口：SPI
GPIO：4
电压 - 供电：2V ~ 3.6V
电流 - 接收：17mA ~ 23mA
电流 - 传输：32mA ~ 54mA
工作温度：-40°C ~ 85°C
安装类型：表面贴装型
封装/外壳：32-VFQFN 裸露焊盘
供应商器件封装：32-VQFN（5x5）

产品特性

High-Performance, Single-Chip Transceiver Adjacent Channel Selectivity: 64 dB at 12.5-kHz Offset Blocking Performance: 91 dB at 10 MHz Excellent Receiver Sensitivity: –123 dBm at 1.2 kbps –110 dBm at 50 kbps –127 dBm Using Built-in Coding Gain Very Low Phase Noise: –111 dBc/Hz at 10-kHz Offset
Adjacent Channel Selectivity: 64 dB at 12.5-kHz Offset
Blocking Performance: 91 dB at 10 MHz
Excellent Receiver Sensitivity: –123 dBm at 1.2 kbps –110 dBm at 50 kbps –127 dBm Using Built-in Coding Gain
–123 dBm at 1.2 kbps
–110 dBm at 50 kbps
–127 dBm Using Built-in Coding Gain
Very Low Phase Noise: –111 dBc/Hz at 10-kHz Offset
Suitable for Systems Targeting ETSI Category 1 Compliance in 169-MHz and 433-MHz Bands
High Spectral Efficiency (9.6 kbps in 12.5-kHz Channel in Compliance With FCC Narrowbanding Mandate)
Separate 128-Byte RX and TX FIFOs
Support for Seamless Integration With the CC1190 Device for Increased Range Giving up to 3-dB Improvement in Sensitivity and up to +27-dBm Output Power
Power Supply Wide Supply Voltage Range (2.0 V to 3.6 V) Low Current Consumption: RX: 2 mA in RX Sniff Mode RX: 17 mA Peak Current in Low-Power Mode RX: 22 mA Peak Current in High-Performance Mode TX: 45 mA at +14 dBm Power Down: 0.12 µA (0.5 µA With eWOR Timer Running)
Wide Supply Voltage Range (2.0 V to 3.6 V)
Low Current Consumption: RX: 2 mA in RX Sniff Mode RX: 17 mA Peak Current in Low-Power Mode RX: 22 mA Peak Current in High-Performance Mode TX: 45 mA at +14 dBm
RX: 2 mA in RX Sniff Mode
RX: 17 mA Peak Current in Low-Power Mode
RX: 22 mA Peak Current in High-Performance Mode
TX: 45 mA at +14 dBm
Power Down: 0.12 µA (0.5 µA With eWOR Timer Running)
Programmable Output Power up to +16 dBm With 0.4-dB Step Size
Automatic Output Power Ramping
Configurable Data Rates: 0 to 200 kbps
Supported Modulation Formats: 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, MSK, OOK
WaveMatch: Advanced Digital Signal Processing for Improved Sync Detect Performance
RoHS-Compliant 5-mm × 5-mm No-Lead QFN 32-Pin Package (RHB)
Regulations – Suitable for Systems Targeting Compliance With Europe: ETSI EN 300 220, ETSI EN 54-25 US: FCC CFR47 Part 15, FCC CFR47 Part 90, 24, and 101 Japan: ARIB RCR STD-T30, ARIB STD-T67, ARIB STD-T108
Europe: ETSI EN 300 220, ETSI EN 54-25
US: FCC CFR47 Part 15, FCC CFR47 Part 90, 24, and 101
Japan: ARIB RCR STD-T30, ARIB STD-T67, ARIB STD-T108
Peripherals and Support Functions Enhanced Wake-On-Radio (eWOR) Functionality for Automatic Low-Power Receive Polling Includes Functions for Antenna Diversity Support Support for Retransmissions Support for Automatic Acknowledge of Received Packets TCXO Support and Control, Also in Power Modes Automatic Clear Channel Assessment (CCA) for Listen-Before-Talk (LBT) Systems Built-in Coding Gain Support for Increased Range and Robustness Digital RSSI Measurement Temperature Sensor
Enhanced Wake-On-Radio (eWOR) Functionality for Automatic Low-Power Receive Polling
Includes Functions for Antenna Diversity Support
Support for Retransmissions
Support for Automatic Acknowledge of Received Packets
TCXO Support and Control, Also in Power Modes
Automatic Clear Channel Assessment (CCA) for Listen-Before-Talk (LBT) Systems
Built-in Coding Gain Support for Increased Range and Robustness
Digital RSSI Measurement
Temperature Sensor

产品概述

The CC1120 device is a fully integrated single-chip radio transceiver designed for high performance at very low-power and low-voltage operation in cost-effective wireless systems. All filters are integrated, thus removing the need for costly external SAW and IF filters. The device is mainly intended for Industrial, Scientific, and Medical (ISM) applications and Short Range Device (SRD) frequency bands at 164 to 192 MHz, 274 to 320 MHz, 410 to 480 MHz, and 820 to 960 MHz.The CC1120 device provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake-on-radio. The main operating parameters of the CC1120 device can be controlled through an SPI interface. In a typical system, the CC1120 device is used with a microcontroller and only a few external passive components.

查看全部

CC1120RHBT 数据手册

数据手册	说明	数量	操作
CC1120RHBT	IC RF TxRx + MCU General ISM < 1GHz 164MHz ~ 192MHz, 274MHz ~ 320MHz, 410MHz ~ 480MHz, 820MHz ~ 960MHz 32-VFQFN Exposed Pad	31页,700K	查看

CC1120RHBT 电路图

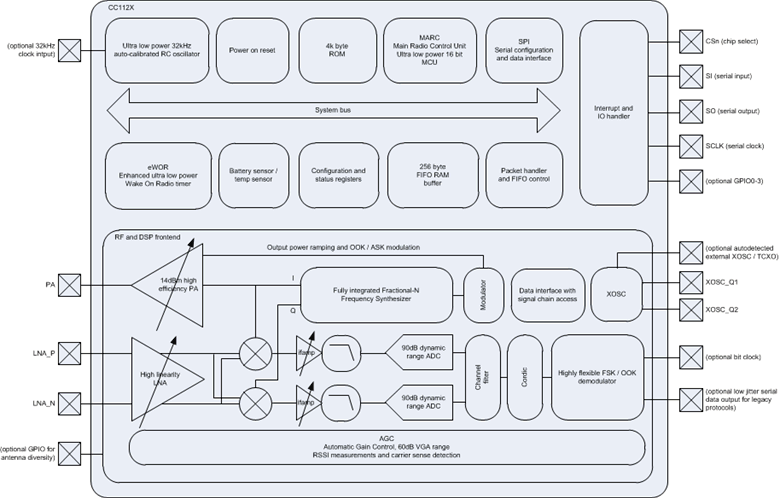

CC1120RHBT
