BQ25890RTWR

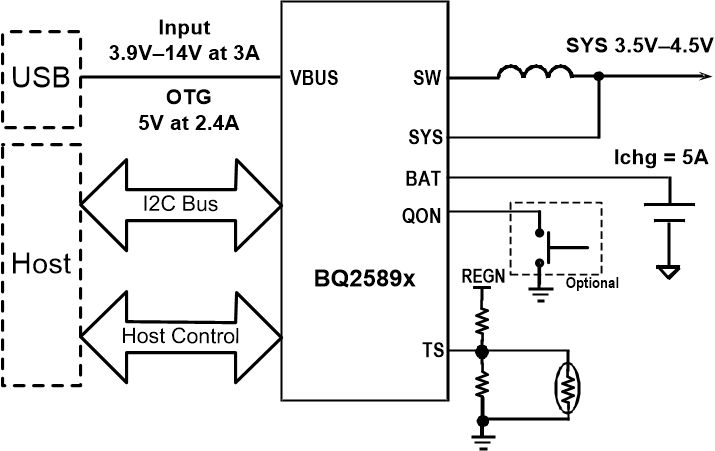

SYS BAT bq2589x Host Input 3.9V±14V at 3A USB OTG 5V at 2.4A Ichg = 5A SYS 3.5V±4.5V I2C Bus Host Control VBUS SW TS QON Optional REGN Product Folder Order Now Technical Documents Tools & Software Support & Community An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. bq25890,bq25892 SLUSC86C–MARCH 2015–REVISED MAY 2018 bq25890/2 I 2 C Controlled Single Cell 5-A Fast Charger with MaxCharge TM Technology for High Input Voltage and Adjustable Voltage USB On-the-Go Boost Mode 1 1 Features 1? High Efficiency 5-A, 1.5-MHz Switch Mode Buck Charge – 93% Charge Efficiency at 2 A and 91% Charge Efficiency at 3-A Charge Current – Optimize for High Voltage Input (9 V to 12 V) – Low Power PFM mode for Light-Load Operations ? USB On-the-Go (OTG) with Adjustable Output from 4.5 V to 5.5 V – Selectable 500-kHz and 1.5-MHz Boost Converter with
