BQ25708RSNR_BQ25708RSNR中文资料_价格

BQ25708RSNR 供应商

公司
型号
品牌
封装/批号
数量
地区
日期
说明
询价

上海三崧电子有限公司 保2千
BQ25708RSNR
TI
原厂原装
22+
3288
上海市
-
一级代理原装

深圳市讯运电子有限公司
BQ25708RSNR
TI(德州仪器)
WQFN-32
2022+
12000
上海市
-
原装可开发票

安徽芯海技术有限公司
BQ25708RSNR
TI
原厂原装
2318+
9200
合肥
-
科大讯飞战略投资企业

BQ25708RSNR 中文资料属性参数

现有数量：0现货9,000Factory查看交期
价格：1 : ￥40.86000剪切带（CT）3,000 : ￥23.13422卷带（TR）
系列：-
包装：卷带（TR）剪切带（CT）? 得捷定制卷带
产品状态：在售
电池化学成份：多化学
电池数：1 ~ 4
电流 - 充电：恒流
可编程特性：-
故障保护：超温，过压，短路
充电电流 - 最大值：8，128A
电池组电压：19.2V（最大）
电压 -?供电（最高）：24V
接口：SMBus
工作温度：-40°C ~ 155°C（TJ）
安装类型：表面贴装型
封装/外壳：32-WFQFN 裸露焊盘
供应商器件封装：32-QFN（4x4）

产品特性

Charge 1- to 4-Cell Battery From Wide Range of Input Sources 3.5-V to 24-V Input Operating Voltage Supports USB2.0, USB 3.0, USB 3.1 (Type C), and USB_PD Input Current Settings Seamless Transition Between Buck and Boost Operation Input current and Voltage Regulation (IDPM and VDPM) Against Source Overload
3.5-V to 24-V Input Operating Voltage
Supports USB2.0, USB 3.0, USB 3.1 (Type C), and USB_PD Input Current Settings
Seamless Transition Between Buck and Boost Operation
Input current and Voltage Regulation (IDPM and VDPM) Against Source Overload
Power/Current Monitor for CPU Throttling Comprehensive PROCHOT Profile, IMVP8 Compliant Input and Battery Current MonitorSystem Power Monitor, IMVP8 Compliant
Comprehensive PROCHOT Profile, IMVP8 Compliant
Input and Battery Current Monitor
System Power Monitor, IMVP8 Compliant
Narrow-VDC (NVDC) Power Path Management Instant-On With No Battery or Deeply Discharged Battery Battery Supplements System When Adapter is Fully-Loaded Ideal Diode Operation in Supplement Mode
Instant-On With No Battery or Deeply Discharged Battery
Battery Supplements System When Adapter is Fully-Loaded
Ideal Diode Operation in Supplement Mode
800-kHz or 1.2-MHz Programmable Switching Frequency for 1-µH to 3.3-µH Inductor
Host Control Interface for Flexible System Configuration SMBus Port for Optimal System Performance and Status Reporting Hardware Pin to Set Input Current Limit Without EC Control
SMBus Port for Optimal System Performance and Status Reporting
Hardware Pin to Set Input Current Limit Without EC Control
Integrated ADC to Monitor Voltage, Current and Power
High Accuracy Regulation and Monitor ±0.5% Charge Voltage Regulation±2% Input/Charge Current Regulation±2% Input/Charge Current Monitor±5% Power Monitor
±0.5% Charge Voltage Regulation
±2% Input/Charge Current Regulation
±2% Input/Charge Current Monitor
±5% Power Monitor
Safety Thermal Shutdown Input, System, Battery Overvoltage Protection MOSFET Inductor Overcurrent Protection
Thermal Shutdown
Input, System, Battery Overvoltage Protection
MOSFET Inductor Overcurrent Protection
Low Battery Quiescent Current
Input Current Optimizer (ICO) to Extract Max Input Power
Charge any Battery Chemistry: Li+, LiFePO4, NiCd, NiMH, Lead Acid
Package: 32-Pin 4 × 4 WQFN

产品概述

The bq25708 is a synchronous NVDC battery buck-boost charge controller, offering low component count, high efficiency solution for space-constraint, multi-chemistry battery charging applications.The NVDC-1 configuration allows the system to be regulated at battery voltage, but not drop below system minimum voltage. The system keeps operating even when the battery is completely discharged or removed. When load power exceeds input source rating, the battery goes into supplement mode and prevents the system from crashing.The bq25708 charges battery from a wide range of input sources including USB adapter, high voltage USB PD sources and traditional adapters.During power up, the charger sets converter to buck, boost or buck-boost configuration based on input source and battery conditions. The charger automatically transits among buck, boost and buck-boost configuration without host control.The bq25708 monitors adapter current, battery current and system power. The flexibly programmed PROCHOT output goes directly to CPU for throttle back when needed.

查看全部

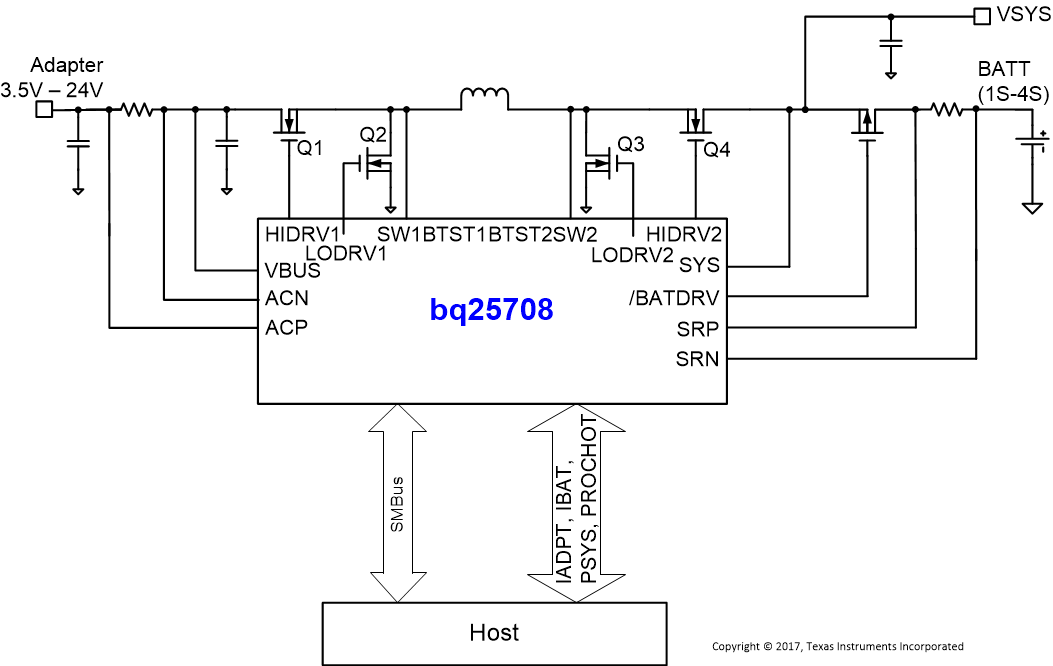

BQ25708RSNR 电路图
