  • 封装:6-TSSOP(5 引线),SC-88A,SOT-353
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:带卷 (TR)
  • 参考价格:$0.099

更新日期:2024-04-01

产品简介:具有三态输出的单路 0.8V 至 3.6V 低功耗缓冲器

查看详情
  • 封装:6-TSSOP(5 引线),SC-88A,SOT-353
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:带卷 (TR)
  • 参考价格:$0.099

74AUP1G125DCKRG4 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

74AUP1G125DCKRG4 中文资料属性参数

  • 标准包装:3,000
  • 类别:集成电路 (IC)
  • 家庭:逻辑 - 缓冲器,驱动器,接收器,收发器
  • 系列:74AUP
  • 逻辑类型:缓冲器/线路驱动器,非反相
  • 元件数:1
  • 每个元件的位元数:1
  • 输出电流高,低:4mA,4mA
  • 电源电压:0.8 V ~ 3.6 V
  • 工作温度:-40°C ~ 85°C
  • 安装类型:表面贴装
  • 封装/外壳:6-TSSOP(5 引线),SC-88A,SOT-353
  • 供应商设备封装:SC-70-5
  • 包装:带卷 (TR)

产品特性

  • Available in the Texas Instruments NanoStar™ Package
  • Low Static-Power Consumption (ICC = 0.9 µA Maximum)
  • Low Dynamic-Power Consumption (Cpd = 4 pF Typical at 3.3 V)
  • Low Input Capacitance (CI = 1.5 pF Typical)
  • Low Noise – Overshoot and Undershoot < 10% of VCC
  • Input-Disable Feature Allows Floating Input Conditions
  • Ioff Supports Partial-Power-Down Mode Operation
  • Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at Input
  • Wide Operating VCC Range of 0.8 V to 3.6 V
  • 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
  • tpd = 4.6 ns Maximum at 3.3 V

产品概述

The SN74AUP1G125 bus buffer gate is a single line driver with a 3-state output. The output is disabled when the output-enable (OE) input is high. This device has the input-disable feature, which allows floating input signals.To ensure the high-impedance state during power up or power down, OE must be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

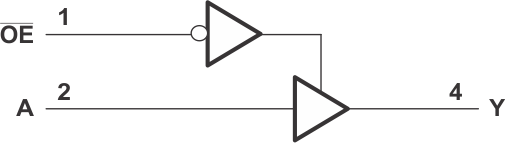

74AUP1G125DCKRG4 电路图
