TS3USB221AQRSERQ1

Texas Instruments 接口 - 模拟开关，多路复用器，多路分解器
  • 封装：10-UFQFN
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$1.043-$2.23

更新日期：2024-04-01

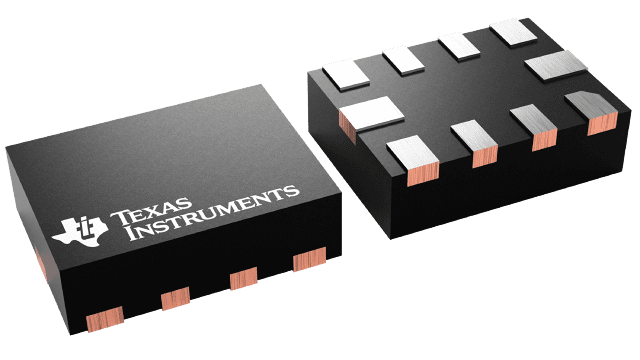

TS3USB221AQRSERQ1

Texas Instruments 接口 - 模拟开关，多路复用器，多路分解器

产品简介：具有 ESD 保护的汽车类高速 USB 2.0 (480Mbps) 1:2 多路复用器/多路解复用器开关

查看详情
  • 封装：10-UFQFN
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$1.043-$2.23

TS3USB221AQRSERQ1 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TS3USB221AQRSERQ1 中文资料属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：接口 - 模拟开关，多路复用器，多路分解器
  • 系列：-
  • 功能：USB 开关
  • 电路：1 x 1:2
  • 导通状态电阻：6 欧姆
  • 电压电源：单电源
  • 电压 - 电源，单路/双路(±)：2.3 V ~ 3.6 V
  • 电流 - 电源：30µA
  • 工作温度：-40°C ~ 125°C
  • 安装类型：表面贴装
  • 封装/外壳：10-UFQFN
  • 供应商设备封装：10-UQFN（2.0x1.5）
  • 包装：®
  • 其它名称：296-27719-6

产品特性

  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level H2 Device CDM ESD Classification Level C5
  • Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
  • Device HBM ESD Classification Level H2
  • Device CDM ESD Classification Level C5
  • VCC Operation at 2.5 V to 3.3 V
  • VI/O Accepts Signals Up to 5.5 V
  • 1.8-V Compatible Control-Pin Inputs
  • Low-Power Mode When OE Is Disabled (1 µA)
  • rON = 16 Ω Maximum
  • ΔrON = 0.2 Ω Typical
  • Cio(on) = 6 pF Typical
  • Low Power Consumption (30 µA Maximum)
  • High Bandwidth (900 MHz Typical)
  • ESD Performance Tested Per JESD 227000-V Human-Body Model (A114-B, Class II) 1000-V Charged-Device Model (C101)
  • 7000-V Human-Body Model (A114-B, Class II)
  • 1000-V Charged-Device Model (C101)
  • ESD Performance I/O to GND Per JESD 2212-kV Human-Body Model
  • 12-kV Human-Body Model

产品概述

The TS3USB221A-Q1 is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in automotive USB hubs or controllers with limited USB I/Os. The wide bandwidth (900 MHz) of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps). The TS3USB221A-Q1 integrates ESD protection cells on all pins, is available in a tiny UQFN package (2 mm × 1.5 mm) and is characterized over the free air temperature range from –40°C to 125°C.
