TPA2036D1YZFR

Texas Instruments 线性 - 音頻放大器
  • 封装：9-UFBGA，DSBGA
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$0.5425-$1.26

更新日期：2024-04-01 00:04:00

TPA2036D1YZFR

Texas Instruments 线性 - 音頻放大器

产品简介：具有可变增益和短路保护的 2.5W 单声道、模拟输入 D 级音频放大器

查看详情
  • 封装：9-UFBGA，DSBGA
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$0.5425-$1.26

TPA2036D1YZFR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TPA2036D1YZFR 中文资料属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：线性 - 音頻放大器
  • 系列：NanoFree™
  • 类型：D 类
  • 输出类型：1-通道（单声道）
  • 在某负载时最大输出功率 x 通道数量：2.5W x 1 @ 4 欧姆
  • 电源电压：2.5 V ~ 5.5 V
  • 特点：差分输入，短路保护和热保护，关机
  • 安装类型：表面贴装
  • 供应商设备封装：9-DSBGA（1.8x1.8）
  • 封装/外壳：9-UFBGA，DSBGA
  • 包装：®
  • 其它名称：296-23917-6

产品特性

  • Pin-to-pin compatibility with TPA2010D1
  • Short Circuit Auto-recovery
  • Maximum Battery Life and Minimum Heat Efficiency With an 8- Speaker: 88% at 400 mW 80% at 100 mW 2.8-mA Quiescent Current 0.5-µA Shutdown Current
  • Efficiency With an 8- Speaker: 88% at 400 mW 80% at 100 mW
  • 88% at 400 mW
  • 80% at 100 mW
  • 2.8-mA Quiescent Current
  • 0.5-µA Shutdown Current
  • Only Three External Components Optimized PWM Output Stage Eliminates LC Output Filter High PSRR (–75 dB) and Wide Supply Voltage (2.5 V to 5.5 V) Fully Differential Design Reduces RF Rectification and Eliminates Bypass Capacitor Improved CMRR Eliminates Two Input Coupling Capacitors
  • Optimized PWM Output Stage Eliminates LC Output Filter
  • High PSRR (–75 dB) and Wide Supply Voltage (2.5 V to 5.5 V)
  • Fully Differential Design Reduces RF Rectification and Eliminates Bypass Capacitor
  • Improved CMRR Eliminates Two Input Coupling Capacitors
  • 1,45mm × 1,45 mm 9-Ball WCSP NanoFree™ Lead-Free (YZF)
  • NanoFree™ Lead-Free (YZF)
  • APPLICATIONS Wireless or Cellular Handsets and PDAs Personal Navigation Devices General Portable Audio Devices Linear Vibrator Drivers
  • Wireless or Cellular Handsets and PDAs
  • Personal Navigation Devices
  • General Portable Audio Devices
  • Linear Vibrator Drivers
  • See Also TPA2031D1, TPA2032D1, TPA2033D1, TPA2034D1, TPA2035D1
  • TPA2031D1, TPA2032D1, TPA2033D1, TPA2034D1, TPA2035D1

产品概述

The TPA2036D1 is a 2.5-W high efficiency filter-free class-D audio power amplifier (class-D amp) in a 1,45 mm × 1,45 mm wafer chip scale package (WCSP) that requires only three external components.Features such as 88% efficiency, –75-dB PSRR, improved RF immunity, and 8 mm2 total PCB area make TPA2036D1 ideal for cellular handsets. A fast start-up time of 1 ms with minimal pop makes TPA2036D1 ideal for portable applications.In cellular handsets, TPA2036D1 is capable of driving the earpiece, speaker phone, and melody ringer. TPA2036D1 allows independent gain while summing signals from separate sources, and has a low 36 µVRMS noise floor, A-weighted.
查看全部

TPA2036D1YZFR 数据手册

数据手册 说明 数量 操作
TPA2036D1YZFR

Amplifier IC 1-Channel (Mono) Class D 9-DSBGA

 24页,1.07M 查看

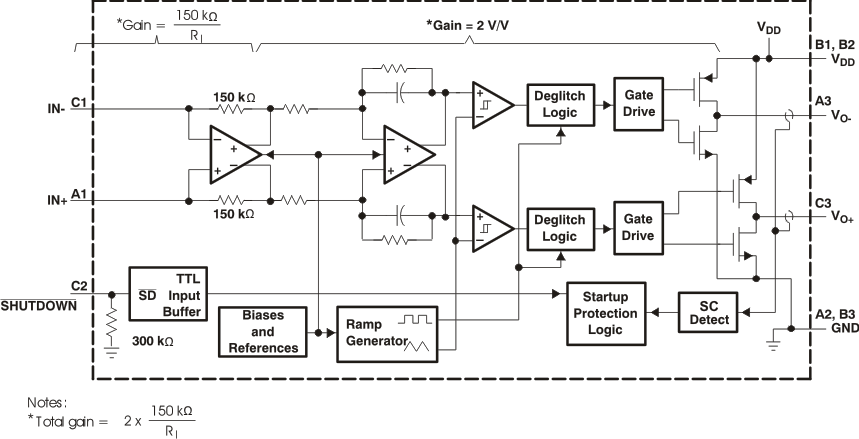

TPA2036D1YZFR 电路图

TPA2036D1YZFR 电路图

TPA2036D1YZFR 电路图
