DRV601RTJRG4

Texas Instruments 线性 - 音頻放大器
  • 封装：20-WFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：带卷 (TR)
  • 参考价格：$1.013

更新日期：2024-04-01

DRV601RTJRG4

Texas Instruments 线性 - 音頻放大器

产品简介：2Vrm DirectPath? 无杂声可变输入增益线路驱动器

查看详情
  • 封装：20-WFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：带卷 (TR)
  • 参考价格：$1.013

DRV601RTJRG4 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

DRV601RTJRG4 中文资料属性参数

  • 标准包装：3,000
  • 类别：集成电路 (IC)
  • 家庭：线性 - 音頻放大器
  • 系列：DirectPath™
  • 类型：AB 类
  • 输出类型：2 通道（立体声）
  • 在某负载时最大输出功率 x 通道数量：-
  • 电源电压：1.8 V ~ 4.5 V
  • 特点：消除爆音，短路保护和热保护，关闭
  • 安装类型：表面贴装
  • 供应商设备封装：20-QFN 裸露焊盘（4x4）
  • 封装/外壳：20-WFQFN 裸露焊盘
  • 包装：带卷 (TR)
  • 配用：296-30920-ND - EVAL MODULE 2 FOR DRV601296-30919-ND - EVAL MODULE FOR DRV601

产品特性

  • External Gain Setting Resistors
  • Space Saving Package 20-Pin, 4 mm × 4 mm Thin QFN, Thermally Optimized PowerPAD Package
  • 20-Pin, 4 mm × 4 mm Thin QFN, Thermally Optimized PowerPAD Package
  • Ground-Referenced Outputs Eliminate DC-Blocking Capacitor Reduce Board Area Reduce Component Cost Improve THD+N Performance No Degradation of Low-Frequency Response Due to Output Capacitors
  • Reduce Board Area
  • Reduce Component Cost
  • Improve THD+N Performance
  • No Degradation of Low-Frequency Response Due to Output Capacitors
  • Wide Power Supply Range: 1.8 V to 4.5 V
  • 2 Vrms/Ch Output Voltage into 600 at 3.3 V supply
  • Independent Right and Left Channel Shutdown Control
  • Short-Circuit and Thermal Protection
  • Pop Reduction Circuitry
  • APPLICATIONS Set-Top Boxes CD / DVD Players DVD-Receivers HTIB PDP / LCD TV's
  • Set-Top Boxes
  • CD / DVD Players
  • DVD-Receivers
  • HTIB
  • PDP / LCD TV's

产品概述

The DRV601 is a stereo line driver designed to allow the removal of the output dc-blocking capacitors for reduced component count and cost. The device is ideal for single supply electronics where size and cost are critical design parameters. The DRV601 is capable of driving 2 Vrms into a 600- load at 3.3 V. The device has external gain setting resistors, that support a gain range of -1V/V to -10V/V, and line outputs that has ±8-kV IEC ESD protection. The device has independent shutdown control for the right and left audio channels.The DRV601 is available in a 4 mm × 4 mm Thin QFN package.
查看全部

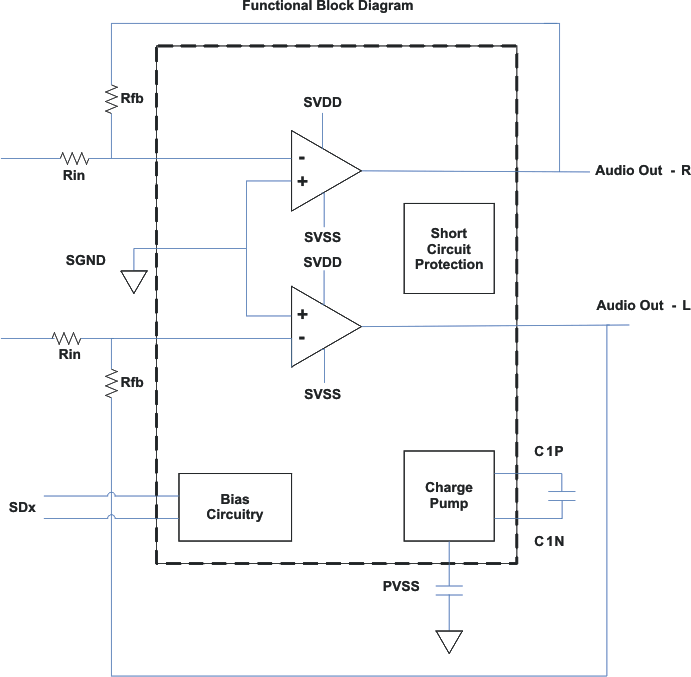

DRV601RTJRG4 电路图

DRV601RTJRG4 电路图

DRV601RTJRG4 电路图
