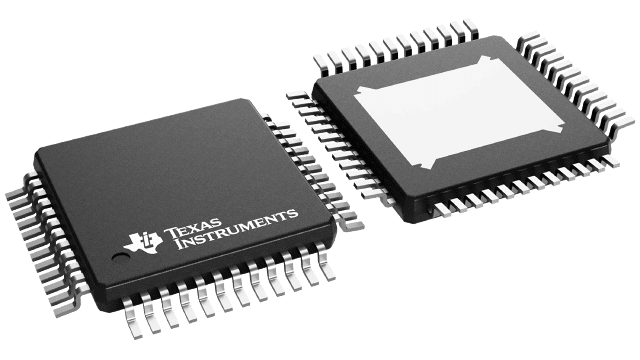

TAS5727PHP

Texas Instruments 线性 - 音頻放大器
  • 封装：48-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$2.816-$6.16

更新日期：2024-04-01

TAS5727PHP

Texas Instruments 线性 - 音頻放大器

产品简介：具有扬声器 EQ 和 DRC 的 25W 单声道、8V 至 26V 电源电压、数字输入、开环 D 级音频放大器

查看详情
  • 封装：48-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$2.816-$6.16

TAS5727PHP 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TAS5727PHP 中文资料属性参数

  • 标准包装：250
  • 类别：集成电路 (IC)
  • 家庭：线性 - 音頻放大器
  • 系列：-
  • 类型：D 类
  • 输出类型：2 通道（立体声）
  • 在某负载时最大输出功率 x 通道数量：41.5W x 2 @ 4 欧姆
  • 电源电压：8 V ~ 26 V
  • 特点：消除爆音，数字输入，I²C，I²S，静音，短路和热保护，关机，音量控制
  • 安装类型：表面贴装
  • 供应商设备封装：48-HTQFP（7x7）
  • 封装/外壳：48-TQFP 裸露焊盘
  • 包装：托盘
  • 其它名称：296-32736TAS5727PHP-ND

产品特性

  • Audio Input and Output 25 W Into an 8-Ω Load From a 20-V Supply Wide PVDD Range, From 8 V to 26 V Supports BTL Configuration With 4-Ω Load Efficient Class-D Operation Eliminates Need for Heatsinks One Serial Audio Input (Two Audio Channels) I2C Address Selection Pin (Chip Select) Single Output Filter PBTL Support Supports 44.1-kHz to 48-kHz Sample Rate (LJ/RJ/I2S)
  • 25 W Into an 8-Ω Load From a 20-V Supply
  • Wide PVDD Range, From 8 V to 26 V
  • Supports BTL Configuration With 4-Ω Load
  • Efficient Class-D Operation Eliminates Need for Heatsinks
  • One Serial Audio Input (Two Audio Channels)
  • I2C Address Selection Pin (Chip Select)
  • Single Output Filter PBTL Support
  • Supports 44.1-kHz to 48-kHz Sample Rate (LJ/RJ/I2S)
  • Audio and PWM Processing Independent Channel Volume Controls With Gain of 24 dB to Mute With 0.125-dB Resolution Steps Programmable Two-Band Dynamic-Range Control 18 Programmable Biquads for Speaker EQ and Other Audio-Processing Features Programmable Coefficients for DRC Filters DC Blocking Filters
  • Independent Channel Volume Controls With Gain of 24 dB to Mute With 0.125-dB Resolution Steps
  • Programmable Two-Band Dynamic-Range Control
  • 18 Programmable Biquads for Speaker EQ and Other Audio-Processing Features
  • Programmable Coefficients for DRC Filters
  • DC Blocking Filters
  • General Features I2C Serial Control Interface Operational Without MCLK Requires Only 3.3 V and PVDD No External Oscillator: Internal Oscillator for Automatic Rate Detection Surface-Mount, 48-Pin HTQFP Package Thermal and Short-Circuit Protection 106-dB SNR, A-Weighted AD, BD, and Ternary Modulation Up to 90% Efficient PWM Level Meter to Measure the Digital Power Profile
  • I2C Serial Control Interface Operational Without MCLK
  • Requires Only 3.3 V and PVDD
  • No External Oscillator: Internal Oscillator for Automatic Rate Detection
  • Surface-Mount, 48-Pin HTQFP Package
  • Thermal and Short-Circuit Protection
  • 106-dB SNR, A-Weighted
  • AD, BD, and Ternary Modulation
  • Up to 90% Efficient
  • PWM Level Meter to Measure the Digital Power Profile
  • Benefits EQ: Speaker Equalization Improves Audio Performance Two-Band DRC: Dynamic Range Compression. Can Be Used As Power Limiter. Enables Speaker Protection, Easy Listening, Night-Mode Listening Autodetect: Automatically Detects Sample-Rate Changes. No Need for External Microprocessor Intervention
  • EQ: Speaker Equalization Improves Audio Performance
  • Two-Band DRC: Dynamic Range Compression. Can Be Used As Power Limiter. Enables Speaker Protection, Easy Listening, Night-Mode Listening
  • Autodetect: Automatically Detects Sample-Rate Changes. No Need for External Microprocessor Intervention

产品概述

The TAS5727 is a 25-W, efficient, digital-audio power amplifier for driving stereo bridge-tied speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.The TAS5727 is a slave-only device receiving all clocks from external sources. The TAS5727 operates with a PWM carrier between a 384-kHz switching rate and a 288-KHz switching rate, depending on the input sample rate. Oversampling combined with a fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz.
查看全部

TAS5727PHP 数据手册

数据手册 说明 数量 操作
TAS5727PHP

Amplifier IC 2-Channel (Stereo) Class D 48-HTQFP (7x7)

 70页,1.59M 查看

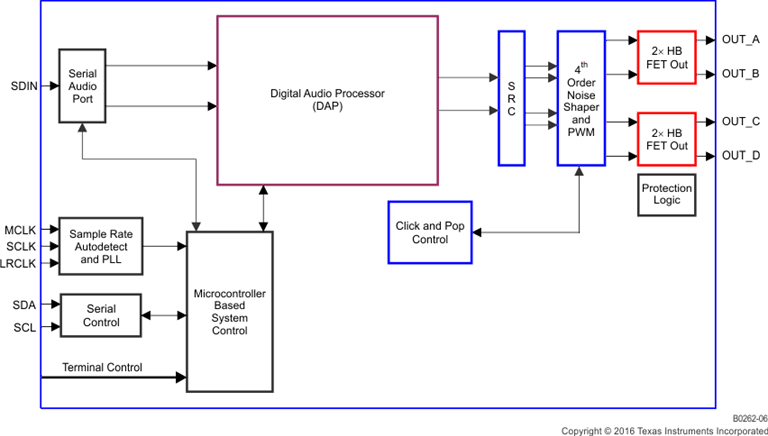

TAS5727PHP 电路图

TAS5727PHP 电路图

TAS5727PHP 电路图
