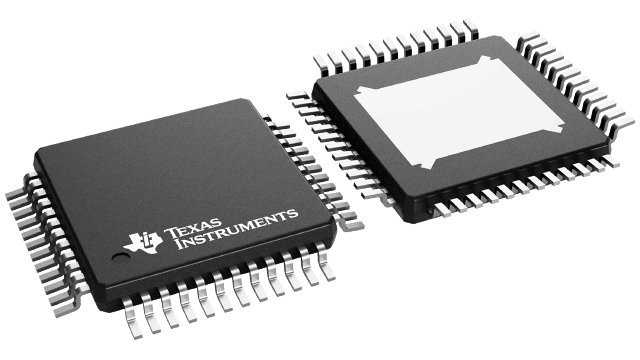

TAS5719PHP

Texas Instruments 线性 - 音頻放大器
  • 封装：48-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$3.60752

更新日期：2024-04-01

TAS5719PHP

Texas Instruments 线性 - 音頻放大器

产品简介：具有集成式无电容耳机的 15W 立体声、4.5V 至 26V、数字输入开环 D 级放大器

查看详情
  • 封装：48-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$3.60752

TAS5719PHP 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TAS5719PHP 中文资料属性参数

  • 标准包装：250
  • 类别：集成电路 (IC)
  • 家庭：线性 - 音頻放大器
  • 系列：-
  • 类型：D 类
  • 输出类型：2-通道（立体声）带立体声耳机
  • 在某负载时最大输出功率 x 通道数量：15W x 2 @ 8 欧姆
  • 电源电压：3 V ~ 3.6 V
  • 特点：消除爆音，差分输入，I²C，关机，热保护，音量控制
  • 安装类型：表面贴装
  • 供应商设备封装：48-HTQFP（7x7）
  • 封装/外壳：48-TQFP 裸露焊盘
  • 包装：托盘

产品特性

  • Audio Input/Output TAS5717 Supports 2×10 W and TAS5719 Supports 2×15 W Output Wide PVDD Range, From 4.5 V to 26 V Efficient Class-D Operation Eliminates Need for Heatsinks Requires Only 3.3 V and PVDD One Serial Audio Input (Two Audio Channels) I2C Address Selection via PIN (Chip Select) Supports 8-kHz to 48-kHz Sample Rate (LJ/RJ/I2S) External Headphone-Amplifier Shutdown Signal Integrated CAP-Free Headphone Amplifier Stereo Headphone (Stereo 2-V RMS Line Driver) Outputs
  • TAS5717 Supports 2×10 W and TAS5719 Supports 2×15 W Output
  • Wide PVDD Range, From 4.5 V to 26 V
  • Efficient Class-D Operation Eliminates Need for Heatsinks
  • Requires Only 3.3 V and PVDD
  • One Serial Audio Input (Two Audio Channels)
  • I2C Address Selection via PIN (Chip Select)
  • Supports 8-kHz to 48-kHz Sample Rate (LJ/RJ/I2S)
  • External Headphone-Amplifier Shutdown Signal
  • Integrated CAP-Free Headphone Amplifier
  • Stereo Headphone (Stereo 2-V RMS Line Driver) Outputs
  • Audio/PWM Processing Independent Channel Volume Controls With 24-dB to Mute Programmable Two-Band Dynamic Range Control 14 Programmable Biquads for Speaker EQ Programmable Coefficients for DRC Filters DC Blocking Filters 0.125-dB Fine Volume Support
  • Independent Channel Volume Controls With 24-dB to Mute
  • Programmable Two-Band Dynamic Range Control
  • 14 Programmable Biquads for Speaker EQ
  • Programmable Coefficients for DRC Filters
  • DC Blocking Filters
  • 0.125-dB Fine Volume Support
  • General Features Serial Control Interface Operational Without MCLK Factory-Trimmed Internal Oscillator for Automatic Rate Detection Surface Mount, 48-Pin, 7-mm × 7-mm HTQFP Package AD, BD, and Ternary PWM-Mode Support Thermal and Short-Circuit Protection
  • Serial Control Interface Operational Without MCLK
  • Factory-Trimmed Internal Oscillator for Automatic Rate Detection
  • Surface Mount, 48-Pin, 7-mm × 7-mm HTQFP Package
  • AD, BD, and Ternary PWM-Mode Support
  • Thermal and Short-Circuit Protection
  • Benefits EQ: Speaker Equalization Improves Audio Performance DRC: Dynamic Range Compression. Can Be Used As Power Limiter. Enables Speaker Protection, Easy Listening, Night-Mode Listening DirectPath Technology: Eliminates Bulky DC Blocking Capacitors Stereo Headphone/Stereo Line Drivers: Adjust Gain via External Resistors, Dedicated Active Headpone Mute Pin, High Signal-to-Noise Ratio Two-Band DRC: Set Two Different Thresholds for Low- and High-Frequency Content
  • EQ: Speaker Equalization Improves Audio Performance
  • DRC: Dynamic Range Compression. Can Be Used As Power Limiter. Enables Speaker Protection, Easy Listening, Night-Mode Listening
  • DirectPath Technology: Eliminates Bulky DC Blocking Capacitors
  • Stereo Headphone/Stereo Line Drivers: Adjust Gain via External Resistors, Dedicated Active Headpone Mute Pin, High Signal-to-Noise Ratio
  • Two-Band DRC: Set Two Different Thresholds for Low- and High-Frequency Content

产品概述

The TAS5717/TAS5719 is a 10-W/15-W, efficient, digital audio-power amplifier for driving stereo bridge-tied speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.The TAS5717/9 is a slave-only device receiving all clocks from external sources. The TAS5717/TAS5719 operates with a PWM carrier between a 384-kHz switching rate and a 352-KHz switching rate, depending on the input sample rate. Oversampling combined with a fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz.
查看全部

TAS5719PHP 电路图

TAS5719PHP 电路图

TAS5719PHP 电路图
