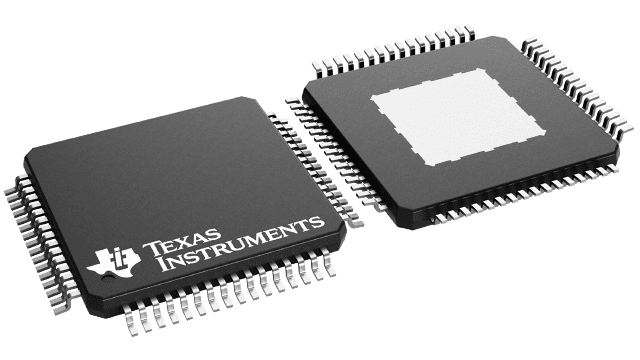

TAS5716PAP

Texas Instruments 线性 - 音頻放大器
  • 封装：64-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$3.0996-$6.3

更新日期：2024-04-01

TAS5716PAP

Texas Instruments 线性 - 音頻放大器

产品简介：具有扬声器 EQ、DRC 和低音增强功能的 20W 立体声、10V 至 26V、数字输入、D 级音频放大器

查看详情
  • 封装：64-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$3.0996-$6.3

TAS5716PAP 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TAS5716PAP 中文资料属性参数

  • 标准包装：160
  • 类别：集成电路 (IC)
  • 家庭：线性 - 音頻放大器
  • 系列：-
  • 类型：D 类
  • 输出类型：2-通道（立体声）或 4 通道（四路）
  • 在某负载时最大输出功率 x 通道数量：20.6W x 2 @ 8 欧姆
  • 电源电压：10 V ~ 26 V
  • 特点：数字输入，I²C，I²S，静音，短路和热保护，关机，音量控制
  • 安装类型：表面贴装
  • 供应商设备封装：64-HTQFP（10x10）
  • 封装/外壳：64-TQFP 裸露焊盘
  • 包装：托盘
  • 其它名称：296-32735TAS5716PAP-ND

产品特性

  • Audio Input/Output20-W into an 8-Ω Load From an 18-V Supply Two Serial Audio Inputs (Four Audio Channels) Supports Multiple Output Configurations: 2-Ch Bridged Outputs (20 W × 2) 4-Ch Single-Ended Outputs (10 W × 4) 2-Ch Single-Ended + 1-Ch Bridged (2.1) (10 W × 2 + 20 W)
  • 20-W into an 8-Ω Load From an 18-V Supply
  • Two Serial Audio Inputs (Four Audio Channels)
  • Supports Multiple Output Configurations: 2-Ch Bridged Outputs (20 W × 2) 4-Ch Single-Ended Outputs (10 W × 4) 2-Ch Single-Ended + 1-Ch Bridged (2.1) (10 W × 2 + 20 W)
  • 2-Ch Bridged Outputs (20 W × 2)
  • 4-Ch Single-Ended Outputs (10 W × 4)
  • 2-Ch Single-Ended + 1-Ch Bridged (2.1) (10 W × 2 + 20 W)
  • Closed Loop Power Stage ArchitectureImproved PSRR Reduces Power Supply Performance Requirements Higher Damping Factor Provides for Tighter, More Accurate Sound With Improved Bass ResponseConstant Output Power Over Variation in Supply
  • Improved PSRR Reduces Power Supply Performance Requirements
  • Higher Damping Factor Provides for Tighter, More Accurate Sound With Improved Bass Response
  • Constant Output Power Over Variation in Supply
  • Wide PVCC Range From (10 V to 26 V)No Separate Supply Required for Gate Drive
  • No Separate Supply Required for Gate Drive
  • Supports 32-kHz—192-kHz Sample Rates (LJ/RJ/I2S)
  • Headphone PWM Outputs
  • Subwoofer PWM Outputs
  • AM Interference Avoidance Support
  • Audio/PWM ProcessingIndependent Channel Volume Controls With 24-dB to -100-dB Range—Soft Mute (50% Duty Cycle)Programmable Dynamic Range Control16 Programmable Biquads for Speaker Equalization Adaptive Biquad Coefficients for EQ and DRC FiltersProgrammable Input and Output MixersLoudness Compensation for SubwooferAutomatic Sample-Rate Detection and Coefficient Banking3D SupportPseudo-Bass Support
  • Independent Channel Volume Controls With 24-dB to -100-dB Range—Soft Mute (50% Duty Cycle)
  • Programmable Dynamic Range Control
  • 16 Programmable Biquads for Speaker Equalization
  • Adaptive Biquad Coefficients for EQ and DRC Filters
  • Programmable Input and Output Mixers
  • Loudness Compensation for Subwoofer
  • Automatic Sample-Rate Detection and Coefficient Banking
  • 3D Support
  • Pseudo-Bass Support
  • General FeaturesSerial Control Interface Operational Without MCLKFactory-Trimmed Internal Oscillator Avoids the Need for External CrystalSurface Mount, 64-Terminal, 10-mm × 10-mm HTQFP PackageThermal and Short-Circuit Protection
  • Serial Control Interface Operational Without MCLK
  • Factory-Trimmed Internal Oscillator Avoids the Need for External Crystal
  • Surface Mount, 64-Terminal, 10-mm × 10-mm HTQFP Package
  • Thermal and Short-Circuit Protection

产品概述

The TAS5716 is a 20-W, efficient, digital audio power amplifier for driving stereo bridged-tied speakers. Two serial data inputs allow processing of up to four discrete audio channels and seamless integration to most digital audio processors and MPEG decoders, accepting a wide range of input data and clock rates. A fully programmable data path allows these channels to be routed to the internal speaker drivers or output via the subwoofer or headphone PWM outputs.The TAS5716 is a slave-only device receiving all clocks from external sources. The TAS5716 operates at a 384-kHz switching rate for 32-, 48-, 96-, and 192-kHz data, and at a 352.8 kHz switching rate for 44.1-, 88.2-, and 176.4-kHz data. The 8× oversampling combined with the fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz.
查看全部

TAS5716PAP 数据手册

数据手册 说明 数量 操作
TAS5716PAP

Amplifier IC 2-Channel (Stereo) or 4-Channel (Quad) Class D 64-HTQFP (10x10)

 64页,1.31M 查看
TAS5716PAPR

Amplifier IC 2-Channel (Stereo) or 4-Channel (Quad) Class D 64-HTQFP (10x10)

 64页,1.31M 查看
