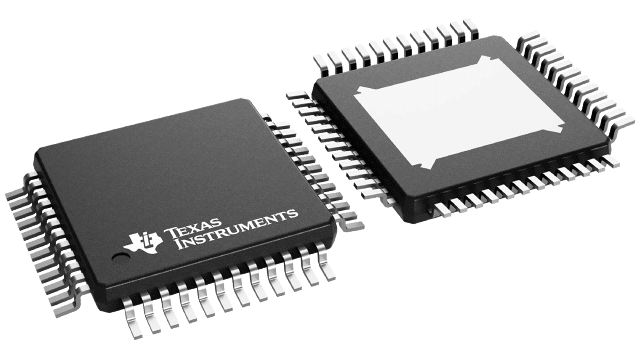

TAS5715PHP

Texas Instruments 线性 - 音頻放大器
  • 封装：48-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$3.125-$6.25

更新日期：2024-04-01

TAS5715PHP

Texas Instruments 线性 - 音頻放大器

产品简介：具有 EQ、DRC 和 HP 的 25W 立体声、8V 至 26V、数字输入、开环 D 级音频放大器

查看详情
  • 封装：48-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$3.125-$6.25

TAS5715PHP 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TAS5715PHP 中文资料属性参数

  • 标准包装：250
  • 类别：集成电路 (IC)
  • 家庭：线性 - 音頻放大器
  • 系列：-
  • 类型：D 类
  • 输出类型：2 通道（立体声）
  • 在某负载时最大输出功率 x 通道数量：41.5W x 2 @ 4 欧姆
  • 电源电压：8 V ~ 26 V
  • 特点：消除爆音，I²C，短路和热保护，关机，音量控制
  • 安装类型：表面贴装
  • 供应商设备封装：48-HTQFP（7x7）
  • 封装/外壳：48-TQFP 裸露焊盘
  • 包装：托盘
  • 其它名称：296-32734TAS5715PHP-ND

产品特性

  • Audio Input/Output 25-W Into an 8- Load From an 18-V Supply 50-W Support in PBTL Mode With 4- Load Wide PVDD Range, From 8 V to 26 V Efficient Class-D Operation Eliminates Need for Heatsinks Requires Only 3.3 V and PVDD One Serial Audio Input (Two Audio Channels) I2C Address Selection via PIN (Chip Select) Supports 8-kHz to 48-kHz Sample Rate (LJ/RJ/I2S) Headphone PWM Outputs Dedicated Pin for External Headphone-Amplifier Shutdown Single-Filter PBTL Support
  • 25-W Into an 8- Load From an 18-V Supply
  • 50-W Support in PBTL Mode With 4- Load
  • Wide PVDD Range, From 8 V to 26 V
  • Efficient Class-D Operation Eliminates Need for Heatsinks
  • Requires Only 3.3 V and PVDD
  • One Serial Audio Input (Two Audio Channels)
  • I2C Address Selection via PIN (Chip Select)
  • Supports 8-kHz to 48-kHz Sample Rate (LJ/RJ/I2S)
  • Headphone PWM Outputs
  • Dedicated Pin for External Headphone-Amplifier Shutdown
  • Single-Filter PBTL Support
  • Audio/PWM Processing Independent Channel Volume Controls With 24-dB to Mute Independent Headphone Volume Programmable Two-Band Dynamic Range Control Up to Eight User-Programmable Biquads per Channel Programmable Coefficients for DRC Filters DC Blocking Filters and PWM DC Detect CRC Checksum to Detect Biquad Coefficient Corruption
  • Independent Channel Volume Controls With 24-dB to Mute
  • Independent Headphone Volume
  • Programmable Two-Band Dynamic Range Control
  • Up to Eight User-Programmable Biquads per Channel
  • Programmable Coefficients for DRC Filters
  • DC Blocking Filters and PWM DC Detect
  • CRC Checksum to Detect Biquad Coefficient Corruption
  • General Features Serial Control Interface Operational Without MCLK Factory-Trimmed Internal Oscillator for Automatic Rate Detection Surface Mount, 48-Pin, 7-mm × 7-mm HTQFP Package Thermal and Short-Circuit Protection
  • Serial Control Interface Operational Without MCLK
  • Factory-Trimmed Internal Oscillator for Automatic Rate Detection
  • Surface Mount, 48-Pin, 7-mm × 7-mm HTQFP Package
  • Thermal and Short-Circuit Protection
  • Benefits EQ: Speaker Equalization Improves Audio Performance DRC: Automatic Gain Limiter. Can Be Used As Power Limiter. Enables Speaker Protection, Easy Listening Two-Band DRC: Set Two Different Thresholds for Low- and High-Frequency Content Autobank Switching: Preload Coefficients for Different Sample Rates. No Need to Write New Coefficients to the Part When Sample Rate Changes Autodetect: Automatically Detects Sample-Rate Changes. No Need for External Microprocessor Intervention Single-Filter PBTL Support Reduces BOM Cost Thgermal Dissipation, Improving System Stability
  • EQ: Speaker Equalization Improves Audio Performance
  • DRC: Automatic Gain Limiter. Can Be Used As Power Limiter. Enables Speaker Protection, Easy Listening
  • Two-Band DRC: Set Two Different Thresholds for Low- and High-Frequency Content
  • Autobank Switching: Preload Coefficients for Different Sample Rates. No Need to Write New Coefficients to the Part When Sample Rate Changes
  • Autodetect: Automatically Detects Sample-Rate Changes. No Need for External Microprocessor Intervention
  • Single-Filter PBTL Support Reduces BOM Cost
  • Thgermal Dissipation, Improving System Stability

产品概述

The TAS5715 is a 25-W, efficient, digital audio-power amplifier for driving stereo bridge-tied speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.The TAS5715 is a slave-only device receiving all clocks from external sources. The TAS5715 operates with a PWM carrier between a 384-kHz switching rate and a 352-KHz switching rate, depending on the input sample rate. Oversampling combined with a fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20  kHz.
查看全部

TAS5715PHP 数据手册

数据手册 说明 数量 操作
TAS5715PHP

Amplifier IC 2-Channel (Stereo) Class D 48-HTQFP (7x7)

 75页,3.07M 查看
