TAS5707PHP

Texas Instruments 线性 - 音頻放大器
  • 封装：48-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$4.335

更新日期：2024-04-01

TAS5707PHP

Texas Instruments 线性 - 音頻放大器

产品简介：具有扬声器 EQ 和 DRC 的 20W 开环立体声数字输入 D 类音频放大器

查看详情
  • 封装：48-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$4.335

TAS5707PHP 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TAS5707PHP 中文资料属性参数

  • 视频文件：TAS57xx Graphical Development Environment
  • 标准包装：250
  • 类别：集成电路 (IC)
  • 家庭：线性 - 音頻放大器
  • 系列：-
  • 类型：D 类
  • 输出类型：2 通道（立体声）
  • 在某负载时最大输出功率 x 通道数量：20.6W x 2 @ 8 欧姆
  • 电源电压：8 V ~ 24 V
  • 特点：消除爆音，数字输入，I²C，I²S，短路和热保护，关机，音量控制
  • 安装类型：表面贴装
  • 供应商设备封装：48-HTQFP（7x7）
  • 封装/外壳：48-TQFP 裸露焊盘
  • 包装：托盘

产品特性

  • Audio Input/Output 20-W Into an 8- Load From an 18-V Supply Wide PVDD Range, From 8 V to 26 V Efficient Class-D Operation Eliminates Need for Heatsinks Requires Only 3.3 V and PVDD One Serial Audio Input (Two Audio Channels) Supports 8-kHz to 48-kHz Sample Rate (LJ/RJ/I2S)
  • 20-W Into an 8- Load From an 18-V Supply
  • Wide PVDD Range, From 8 V to 26 V
  • Efficient Class-D Operation Eliminates Need for Heatsinks
  • Requires Only 3.3 V and PVDD
  • One Serial Audio Input (Two Audio Channels)
  • Supports 8-kHz to 48-kHz Sample Rate (LJ/RJ/I2S)
  • Audio/PWM Processing Independent Channel Volume Controls With 24 dB to Mute Soft Mute (50% Duty Cycle) Programmable Dynamic Range Control 14 Programmable Biquads for Speaker EQ and Other Audio Processing Features Programmable Coefficients for DRC Filters DC Blocking Filters
  • Independent Channel Volume Controls With 24 dB to Mute
  • Soft Mute (50% Duty Cycle)
  • Programmable Dynamic Range Control
  • 14 Programmable Biquads for Speaker EQ and Other Audio Processing Features
  • Programmable Coefficients for DRC Filters
  • DC Blocking Filters
  • General Features Serial Control Interface Operational Without MCLK Factory-Trimmed Internal Oscillator for Automatic Rate Detection Surface Mount, 48-PIN, 7-mm × 7-mm HTQFP Package Thermal and Short-Circuit Protection
  • Serial Control Interface Operational Without MCLK
  • Factory-Trimmed Internal Oscillator for Automatic Rate Detection
  • Surface Mount, 48-PIN, 7-mm × 7-mm HTQFP Package
  • Thermal and Short-Circuit Protection
  • Benefits EQ: Speaker Equalization Improves Audio Performance DRC: Dynamic Range Compression. Can Be Used As Power Limiter. Enables Speaker Protection, Easy Listening, Night-Mode Listening Autobank Switching: Preload Coefficients for Different Sample Rates. No Need to Write New Coefficients to the Part When Sample Rate Changes. Autodetect: Automatically Detects Sample-Rate Changes. No Need for External Microprocessor Intervention
  • EQ: Speaker Equalization Improves Audio Performance
  • DRC: Dynamic Range Compression. Can Be Used As Power Limiter. Enables Speaker Protection, Easy Listening, Night-Mode Listening
  • Autobank Switching: Preload Coefficients for Different Sample Rates. No Need to Write New Coefficients to the Part When Sample Rate Changes.
  • Autodetect: Automatically Detects Sample-Rate Changes. No Need for External Microprocessor Intervention
  • APPLICATIONS TelevisioniPod DockSound Bar
  • Television
  • iPod Dock
  • Sound Bar

产品概述

The TAS5707 is a 20-W, efficient, digital-audio power amplifier for driving stereo bridge-tied speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.The TAS5707 is a slave-only device receiving all clocks from external sources. The TAS5707 operates with a PWM carrier between a 384-kHz switching rate and 352-KHz switching rate, depending on the input sample rate. Oversampling combined with a fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20  kHz.The TAS5707A is identical in function to the HTQFP packaged TAS5707, but has a unique I2C device address. The address of the TAS5707 is 0x36. The address of the TAS5707A is 0x3A.
查看全部

TAS5707PHP 数据手册

数据手册 说明 数量 操作
TAS5707PHP

20-W Stereo I2S Audio Power Amplifier with Speaker EQ and DRC 48-HTQFP 0 to 85

56页,1.22M 查看

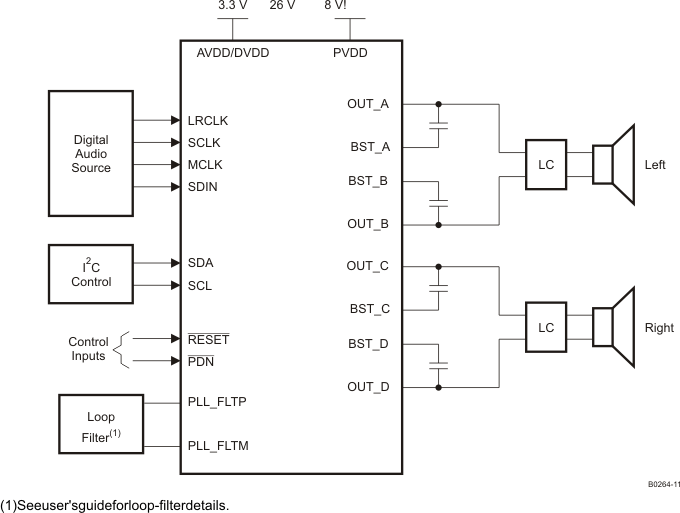

TAS5707PHP 电路图

TAS5707PHP 电路图

TAS5707PHP 电路图
