TAS5705PAP

Texas Instruments 线性 - 音頻放大器
  • 封装：64-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$5.4575

更新日期：2024-04-01

TAS5705PAP

Texas Instruments 线性 - 音頻放大器

产品简介：具有扬声器 EQ 和 DRC 的 20W 立体声、8V 至 23V 电源电压、数字输入、开环 D 级音频放大器

查看详情
  • 封装：64-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$5.4575

TAS5705PAP 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TAS5705PAP 中文资料属性参数

  • 视频文件：TAS57xx Graphical Development Environment
  • 标准包装：160
  • 类别：集成电路 (IC)
  • 家庭：线性 - 音頻放大器
  • 系列：-
  • 类型：D 类
  • 输出类型：2-通道（立体声）带立体声耳机和超低音器
  • 在某负载时最大输出功率 x 通道数量：20W x 2 @ 8 欧姆
  • 电源电压：8 V ~ 23 V
  • 特点：消除爆音, I²C, I²S, 静音, PWM, 短路和热保护，音量控制
  • 安装类型：表面贴装
  • 供应商设备封装：64-HTQFP（10x10）
  • 封装/外壳：64-TQFP 裸露焊盘
  • 包装：托盘

产品特性

  • Audio Input/Output 20-W Into an 8- Load From an 18-V Supply Wide Power-Supply Range From (8 V to 23 V) Efficient Class-D Operation Eliminates Need for Heat Sinks Requires Only Two Power-Supply Rails Two Serial Audio Inputs (Four Audio Channels) Supports 32-kHz–192-kHz Sample Rates (LJ/RJ/I2S) Headphone PWM Outputs Subwoofer PWM Outputs
  • 20-W Into an 8- Load From an 18-V Supply
  • Wide Power-Supply Range From (8 V to 23 V)
  • Efficient Class-D Operation Eliminates Need for Heat Sinks
  • Requires Only Two Power-Supply Rails
  • Two Serial Audio Inputs (Four Audio Channels)
  • Supports 32-kHz–192-kHz Sample Rates (LJ/RJ/I2S)
  • Headphone PWM Outputs
  • Subwoofer PWM Outputs
  • Audio/PWM Processing Independent Channel Volume Controls With 24-dB to –100-dB Range Soft Mute (50% Duty Cycle) Programmable Dynamic Range Control 16 Adaptable Biquads for Speaker EQ Seven Biquads for Left and Right Channels Two Biquads for Subwoofer Channel Adaptive Coefficients for DRC Filters Programmable Input and Output Mixers DC Blocking Filters Loudness Compensation for Subwoofer Automatic Sample Rate Detection and Coefficient Banking for DRC and EQ
  • Independent Channel Volume Controls With 24-dB to –100-dB Range
  • Soft Mute (50% Duty Cycle)
  • Programmable Dynamic Range Control
  • 16 Adaptable Biquads for Speaker EQ Seven Biquads for Left and Right Channels Two Biquads for Subwoofer Channel
  • Seven Biquads for Left and Right Channels
  • Two Biquads for Subwoofer Channel
  • Adaptive Coefficients for DRC Filters
  • Programmable Input and Output Mixers
  • DC Blocking Filters
  • Loudness Compensation for Subwoofer
  • Automatic Sample Rate Detection and Coefficient Banking for DRC and EQ
  • General Features Serial Control Interface Operational Without MCLK Factory-Trimmed Internal Oscillator Enables Automatic Detection of Incoming Sample Rates Thermal and Short-Circuit Protection
  • Serial Control Interface Operational Without MCLK
  • Factory-Trimmed Internal Oscillator Enables Automatic Detection of Incoming Sample Rates
  • Thermal and Short-Circuit Protection
  • Benefits EQ: Speaker Equalization Improves Audio Performance DRC: Dynamic Range Compression. Enables Power Limiting, Speaker Protection, Easy Listening, Night-Mode Listening Autobank Switching: Preload Coefficients for Different Sample Rates. No Need to Write Any Coefficients to the Part When Sample Rate Changes. Autodetect: Automatically Detects Sample-Rate Changes. No Need for External Microprocessor Intervention
  • EQ: Speaker Equalization Improves Audio Performance
  • DRC: Dynamic Range Compression. Enables Power Limiting, Speaker Protection, Easy Listening, Night-Mode Listening
  • Autobank Switching: Preload Coefficients for Different Sample Rates. No Need to Write Any Coefficients to the Part When Sample Rate Changes.
  • Autodetect: Automatically Detects Sample-Rate Changes. No Need for External Microprocessor Intervention

产品概述

The TAS5705 is a 20-W, efficient, digital audio power amplifier for driving stereo bridge-tied speakers. Two serial data inputs allow processing of up to four discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and clock rates. A fully programmable data path allows these channels to be routed to the internal speaker drivers or output via the line-level subwoofer or headphone PWM outputs.The TAS5705 is a slave-only device receiving clocks from external sources. The TAS5705 operates at a 384-kHz switching rate for 32-, 48-, 96-,and 192-kHz data and 352.8-kHz switching rate for 44.1-, 88.2- and 176.4-kHz data. The 8× oversampling combined with the fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz.
查看全部

TAS5705PAP 数据手册

数据手册 说明 数量 操作
TAS5705PAP

20-W Stereo I2S Audio Power Amplifier with Speaker EQ and DRC 64-HTQFP 0 to 85

72页,1.55M 查看
TAS5705PAPR

Amplifier IC 2-Channel (Stereo) with Stereo Headphones and Subwoofer Class D 64-HTQFP (10x10)

 73页,1.31M 查看

TAS5705PAP 电路图

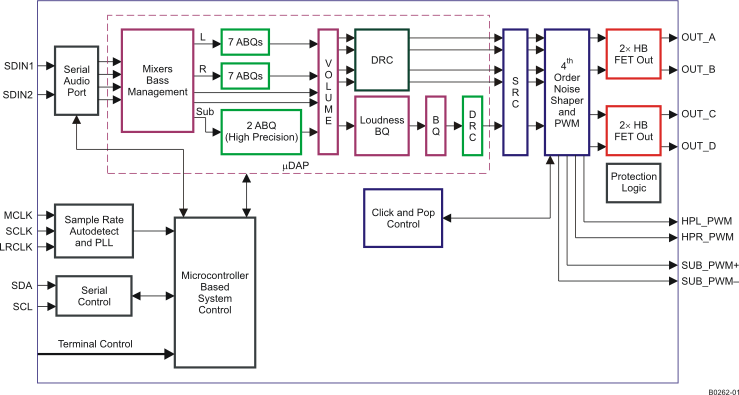

TAS5705PAP 电路图

TAS5705PAP 电路图
