TAS5631BPHD

Texas Instruments 线性 - 音頻放大器
  • 封装：64-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：散装
  • 参考价格：$10.15252-$9.4975

更新日期：2024-04-01

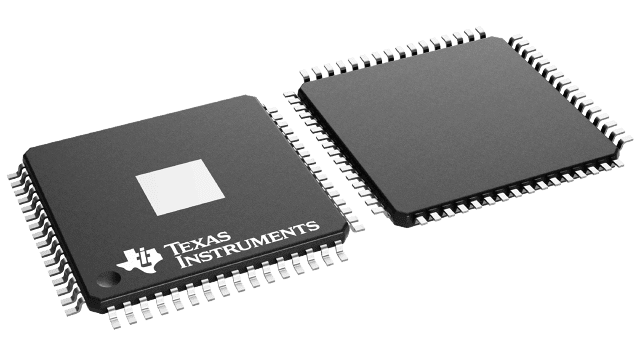

TAS5631BPHD

Texas Instruments 线性 - 音頻放大器

产品简介：300W 立体声、400W 单声道、25V 至 52.5V 电源电压、PWM 输入 D 级音频放大器

查看详情
  • 封装：64-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：散装
  • 参考价格：$10.15252-$9.4975

TAS5631BPHD 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TAS5631BPHD 中文资料属性参数

  • 标准包装：90
  • 类别：集成电路 (IC)
  • 家庭：线性 - 音頻放大器
  • 系列：PurePath™ HD
  • 类型：D 类
  • 输出类型：1-通道（单声道）或 2-通道（立体声）
  • 在某负载时最大输出功率 x 通道数量：600W x 1 @ 2 欧姆; 300W x 2 @ 4 欧姆
  • 电源电压：25 V ~ 52.5 V
  • 特点：消除爆音，数字输入，短路和热保护，关机
  • 安装类型：表面贴装
  • 供应商设备封装：64-HTQFP（14x14）
  • 封装/外壳：64-TQFP 裸露焊盘
  • 包装：散装
  • 其它名称：296-32728TAS5631BPHD-ND

产品特性

  • PurePath™ HD Enabled Integrated Feedback Provides: Signal Bandwidth up to 80 kHz for High-Frequency Content From HD Sources Ultralow 0.03% THD at 1 W Into 4 Ω Flat THD at All Frequencies for Natural Sound 80-dB PSRR (BTL, No Input Signal) >100-dB (A-weighted) SNR Click- and Pop-Free Start-Up
  • Signal Bandwidth up to 80 kHz for High-Frequency Content From HD Sources
  • Ultralow 0.03% THD at 1 W Into 4 Ω
  • Flat THD at All Frequencies for Natural Sound
  • 80-dB PSRR (BTL, No Input Signal)
  • >100-dB (A-weighted) SNR
  • Click- and Pop-Free Start-Up
  • Multiple Configurations Possible on the Same PCB With Stuffing Options: Mono Parallel Bridge-Tied Load (PBTL) Stereo Bridge-Tied Load (BTL) 2.1 Single-Ended Stereo Pair and Bridge-Tied Load Subwoofer Quad Single-Ended Outputs
  • Mono Parallel Bridge-Tied Load (PBTL)
  • Stereo Bridge-Tied Load (BTL)
  • 2.1 Single-Ended Stereo Pair and Bridge-Tied Load Subwoofer
  • Quad Single-Ended Outputs
  • Total Output Power at 10% THD+N 400 W per Channel in Mono PBTL Configuration 300 W per Channel in Stereo BTL Configuration 145 W per Channel in Quad Single-Ended Configuration
  • 400 W per Channel in Mono PBTL Configuration
  • 300 W per Channel in Stereo BTL Configuration
  • 145 W per Channel in Quad Single-Ended Configuration
  • High-Efficiency Power Stage (>88%) With 60-mΩ Output MOSFETs
  • Two Thermally Enhanced Package Options: PHD (64-Pin QFP) DKD (44-Pin PSOP3)
  • PHD (64-Pin QFP)
  • DKD (44-Pin PSOP3)
  • Self-Protection Design (Including Undervoltage, Overtemperature, Clipping, and Short-Circuit Protection) With Error Reporting
  • EMI Compliant When Used With Recommended System Design
  • APPLICATIONS Mini Combo System AV Receivers DVD Receivers Active Speakers
  • Mini Combo System
  • AV Receivers
  • DVD Receivers
  • Active Speakers

产品概述

The TAS5631B is a high-performance PWM input class-D amplifier with integrated closed-loop feedback technology (known as PurePath HD technology) with the ability to drive up to 300 W (1) stereo into 4-Ω to 8-Ω speakers from a single 50-V supply.PurePath HD technology enables traditional AB-amplifier performance (<0.03% THD) levels while providing the power efficiency of traditional class-D amplifiers.Unlike traditional class-D amplifiers, the distortion curve does not increase until the output levels move into clipping.PurePath HD technology enables lower idle losses, making the device even more efficient.
查看全部

TAS5631BPHD 数据手册

数据手册 说明 数量 操作
TAS5631BPHD

Amplifier IC 1-Channel (Mono) or 2-Channel (Stereo) Class D 64-HTQFP (14x14)

 37页,1.87M 查看

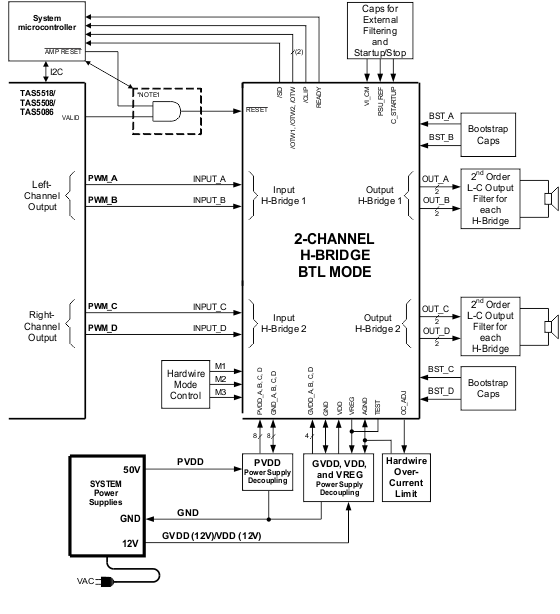

TAS5631BPHD 电路图

TAS5631BPHD 电路图

TAS5631BPHD 电路图
