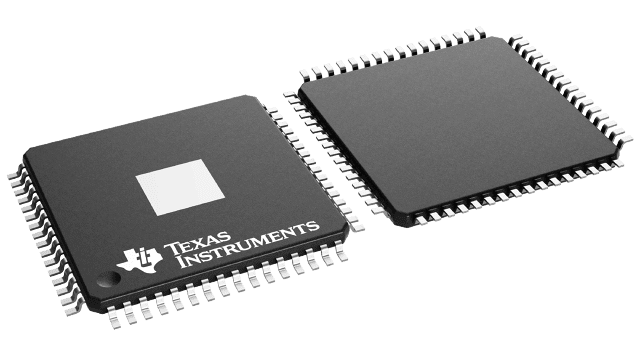

TAS5630BPHDR

Texas Instruments 线性 - 音頻放大器
  • 封装：64-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$10.4096-$9.5375

更新日期：2024-04-01

TAS5630BPHDR

Texas Instruments 线性 - 音頻放大器

产品简介：300W 立体声、400W 单声道、25V 至 52.5V 电源电压、模拟输入 D 级音频放大器

查看详情
  • 封装：64-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$10.4096-$9.5375

TAS5630BPHDR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TAS5630BPHDR 中文资料属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：线性 - 音頻放大器
  • 系列：PurePath™ HD
  • 类型：D 类
  • 输出类型：1-通道（单声道）或 2-通道（立体声）
  • 在某负载时最大输出功率 x 通道数量：480W x 1 @ 2 欧姆; 300W x 2 @ 4 欧姆
  • 电源电压：25 V ~ 52.5 V
  • 特点：消除爆音，差分输入，短路和热保护，关闭
  • 安装类型：表面贴装
  • 供应商设备封装：64-HTQFP（14x14）
  • 封装/外壳：64-TQFP 裸露焊盘
  • 包装：®
  • 其它名称：296-30006-6

产品特性

  • PurePath™ HD Enabled Integrated Feedback Provides: Signal Bandwidth up to 80 kHz for High- Frequency Content From HD Sources Ultralow 0.03% THD at 1 W into 4 Ω Flat THD at All Frequencies for Natural Sound 80-dB PSRR (BTL, No Input Signal) > 100-dB (A-weighted) SNR Click- and Pop-Free Start-up
  • Signal Bandwidth up to 80 kHz for High- Frequency Content From HD Sources
  • Ultralow 0.03% THD at 1 W into 4 Ω
  • Flat THD at All Frequencies for Natural Sound
  • 80-dB PSRR (BTL, No Input Signal)
  • > 100-dB (A-weighted) SNR
  • Click- and Pop-Free Start-up
  • Multiple Configurations Possible on the Same PCB With Stuffing Options: Mono Parallel Bridge-Tied Load (PBTL) Stereo Bridge-Tied Load (BTL) 2.1 Single-Ended Stereo Pair and BTL Subwoofer Quad Single-Ended Outputs
  • Mono Parallel Bridge-Tied Load (PBTL)
  • Stereo Bridge-Tied Load (BTL)
  • 2.1 Single-Ended Stereo Pair and BTL Subwoofer
  • Quad Single-Ended Outputs
  • Total Output Power at 10% THD+N 400 W in Mono PBTL Configuration 300 W per Channel in Stereo BTL Configuration 145 W per Channel in Quad Single-Ended Configuration
  • 400 W in Mono PBTL Configuration
  • 300 W per Channel in Stereo BTL Configuration
  • 145 W per Channel in Quad Single-Ended Configuration
  • High-Efficiency Power Stage (> 88%) With 60-mΩ Output MOSFETs
  • Two Thermally Enhanced Package Options: PHD (64-Pin QFP) DKD (44-Pin PSOP3)
  • PHD (64-Pin QFP)
  • DKD (44-Pin PSOP3)
  • Self-Protection Design (Including Undervoltage, Overtemperature, Clipping, and Short-Circuit Protection) With Error Reporting
  • EMI Compliant When Used With Recommended System Design
  • APPLICATIONS Mini Combo System AV Receivers DVD Receivers Active Speakers
  • Mini Combo System
  • AV Receivers
  • DVD Receivers
  • Active Speakers

产品概述

The TAS5630B device is a high-performance analog-input class-D amplifier with integrated closed-loop feedback technology (known as PurePath HD technology) with the ability to drive up to 300 W Achievable output power levels are dependent on the thermal configuration of the target application. A high-performance thermal interface material between the exposed package heat slug and the heat sink should be used to achieve high output power levels. stereo into 4-Ω to 8-Ω speakers from a single 50-V supply.PurePath HD technology enables traditional AB-amplifier performance (< 0.03% THD) levels while providing the power efficiency of traditional class-D amplifiers.Unlike traditional class-D amplifiers, the distortion curve does not increase until the output levels move into clipping. PurePath HD technology enables lower idle losses, making the device even more efficient. When coupled with TI’s class-G power-supply reference design for TAS563x, industry-leading levels of efficiency can be achieved.
查看全部

TAS5630BPHDR 数据手册

数据手册 说明 数量 操作
TAS5630BPHDR

PurePath TM HD Class-G Power Supply Ref. Design 110 VAC 240 VAC ? 25 V–50 V ANALOG AUDIO INPUT 12 V PurePath TM HD TAS5630B (2.1 Configuration) ?? ?? ?? 3 OPA1632 ′ ±15 V TAS5630B www.ti.com SLES217C –NOVEMBER 2010–REVISED SEPTEMBER 2012 300-W STEREO / 400-W MONO PurePath? HD ANALOG-INPUT POWER STAGE Check for Samples: TAS5630B 1FEATURES APPLICATIONS 23? PurePath? HD Enabled Integrated Feedback ? Mini Combo System Provides: ? AV Receivers – Signal Bandwidth up to 80 kHz for High- ? DVD Receivers Frequency Content From HD Sources ? Active Speakers – Ultralow 0.03% THD at 1 W into 4 ? – Flat THD at all Frequencies for Natural DESCRIPTION Sound The TAS5630B is a high-performance analog-input class-D amplifier with integrated closed-loop – 80-dB PSRR (BTL, No Input Signal) feedback technology (known as PurePath HD – >100-dB (A-weighted) SNR technology) with the ability to drive up to 300 W (1) – Click- and Pop-Free Start-Up stereo into 4- ? to 8- ? speakers from a single 50-V supply. ? Mul

 36页,2.47M 查看
TAS5630BPHDR

PurePath TM HD Class-G Power Supply Ref. Design 110 VAC 240 VAC ? 25 V–50 V ANALOG AUDIO INPUT 12 V PurePath TM HD TAS5630B (2.1 Configuration) ?? ?? ?? 3 OPA1632 ′ ±15 V TAS5630B www.ti.com SLES217C –NOVEMBER 2010–REVISED SEPTEMBER 2012 300-W STEREO / 400-W MONO PurePath? HD ANALOG-INPUT POWER STAGE Check for Samples: TAS5630B 1FEATURES APPLICATIONS 23? PurePath? HD Enabled Integrated Feedback ? Mini Combo System Provides: ? AV Receivers – Signal Bandwidth up to 80 kHz for High- ? DVD Receivers Frequency Content From HD Sources ? Active Speakers – Ultralow 0.03% THD at 1 W into 4 ? – Flat THD at all Frequencies for Natural DESCRIPTION Sound The TAS5630B is a high-performance analog-input class-D amplifier with integrated closed-loop – 80-dB PSRR (BTL, No Input Signal) feedback technology (known as PurePath HD – >100-dB (A-weighted) SNR technology) with the ability to drive up to 300 W (1) – Click- and Pop-Free Start-Up stereo into 4- ? to 8- ? speakers from a single 50-V supply. ? Mul

 36页,2.47M 查看
TAS5630BPHDR_782

PurePath TM HD Class-G Power Supply Ref. Design 110 VAC 240 VAC ? 25 V–50 V ANALOG AUDIO INPUT 12 V PurePath TM HD TAS5630B (2.1 Configuration) ?? ?? ?? 3 OPA1632 ′ ±15 V TAS5630B www.ti.com SLES217C –NOVEMBER 2010–REVISED SEPTEMBER 2012 300-W STEREO / 400-W MONO PurePath? HD ANALOG-INPUT POWER STAGE Check for Samples: TAS5630B 1FEATURES APPLICATIONS 23? PurePath? HD Enabled Integrated Feedback ? Mini Combo System Provides: ? AV Receivers – Signal Bandwidth up to 80 kHz for High- ? DVD Receivers Frequency Content From HD Sources ? Active Speakers – Ultralow 0.03% THD at 1 W into 4 ? – Flat THD at all Frequencies for Natural DESCRIPTION Sound The TAS5630B is a high-performance analog-input class-D amplifier with integrated closed-loop – 80-dB PSRR (BTL, No Input Signal) feedback technology (known as PurePath HD – >100-dB (A-weighted) SNR technology) with the ability to drive up to 300 W (1) – Click- and Pop-Free Start-Up stereo into 4- ? to 8- ? speakers from a single 50-V supply. ? Mul

 36页,2.47M 查看
TAS5630BPHDR_782

PurePath TM HD Class-G Power Supply Ref. Design 110 VAC 240 VAC ? 25 V–50 V ANALOG AUDIO INPUT 12 V PurePath TM HD TAS5630B (2.1 Configuration) ?? ?? ?? 3 OPA1632 ′ ±15 V TAS5630B www.ti.com SLES217C –NOVEMBER 2010–REVISED SEPTEMBER 2012 300-W STEREO / 400-W MONO PurePath? HD ANALOG-INPUT POWER STAGE Check for Samples: TAS5630B 1FEATURES APPLICATIONS 23? PurePath? HD Enabled Integrated Feedback ? Mini Combo System Provides: ? AV Receivers – Signal Bandwidth up to 80 kHz for High- ? DVD Receivers Frequency Content From HD Sources ? Active Speakers – Ultralow 0.03% THD at 1 W into 4 ? – Flat THD at all Frequencies for Natural DESCRIPTION Sound The TAS5630B is a high-performance analog-input class-D amplifier with integrated closed-loop – 80-dB PSRR (BTL, No Input Signal) feedback technology (known as PurePath HD – >100-dB (A-weighted) SNR technology) with the ability to drive up to 300 W (1) – Click- and Pop-Free Start-Up stereo into 4- ? to 8- ? speakers from a single 50-V supply. ? Mul

 36页,2.47M 查看

TAS5630BPHDR 电路图

TAS5630BPHDR 电路图

TAS5630BPHDR 电路图
