SN65HVD11SHKQ

Texas Instruments 驱动器，接收器，收发器

更新日期：2024-04-01

SN65HVD11SHKQ

Texas Instruments 驱动器，接收器，收发器

产品简介：高温 3.3V RS-485 收发器

查看详情

SN65HVD11SHKQ 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

SN65HVD11SHKQ 中文资料属性参数

  • 现有数量：0现货729Factory
  • 价格：在售
  • 系列：-
  • 包装：管件
  • 产品状态：在售
  • 类型：收发器
  • 协议：RS422，RS485
  • 驱动器/接收器数：1/1
  • 双工：半
  • 接收器滞后：41 mV
  • 数据速率：10Mbps
  • 电压 - 供电：3V ~ 3.6V
  • 工作温度：-55°C ~ 210°C
  • 安装类型：表面贴装型
  • 封装/外壳：8-CSOIC（0.220"，5.65mm 宽）
  • 供应商器件封装：8-CFP

产品特性

  • Operates With a 3.3-V Supply
  • Bus-Pin ESD Protection Exceeds 16-kV Human- Body Model (HBM)
  • 1/8 Unit-Load Option Available (up to 256 Nodes on Bus)
  • Optional Driver Output Transition Times for Signaling Rates(1) of 1 Mbps, 10 Mbps, and 32 Mbps
  • Based on ANSI TIA/EIA-485-A
  • Bus-Pin Short Circuit Protection From –7 V to 12 V
  • Open-Circuit, Idle-Bus, and Shorted-Bus Fail-Safe Receiver
  • Glitch-Free Power-Up and Power-Down Protection for Hot-Plugging Applications
  • SN75176 Footprint
  • Supports Extreme Temperature Applications: Controlled Baselines One Assembly and Test Sites One Fabrication Sites Available in Extreme (–55°C/210°C) Temperature Range(2) Extended Product Life Cycles Extended Product-Change Notifications Product Traceability Texas Instruments’ High Temperature Products Use Highly Optimized Silicon (Die) Solutions With Design and Process Enhancements to Maximize Performance Over Extended Temperatures.
  • Controlled Baselines
  • One Assembly and Test Sites
  • One Fabrication Sites
  • Available in Extreme (–55°C/210°C) Temperature Range(2)
  • Extended Product Life Cycles
  • Extended Product-Change Notifications
  • Product Traceability
  • Texas Instruments’ High Temperature Products Use Highly Optimized Silicon (Die) Solutions With Design and Process Enhancements to Maximize Performance Over Extended Temperatures.

产品概述

The SN65HVD11-HT device combines a 3-state differential line driver and differential input line receiver that operates with a single 3.3-V power supply. It is designed for balanced transmission lines and meets or exceeds ANSI TIA/EIA-485-A and ISO 8482:1993, with the exception that the thermal shutdown is removed. This differential bus transceiver is a monolithic integrated circuit designed for bidirectional data communication on multipoint bus-transmission lines. The driver and receiver have active-high and active-low enables, respectively, that can be externally connected together to function as direction control.The driver differential outputs and receiver differential inputs connect internally to form a differential input/ output (I/O) bus port that is designed to offer minimum loading to the bus when the driver is disabled or VCC = 0.
查看全部

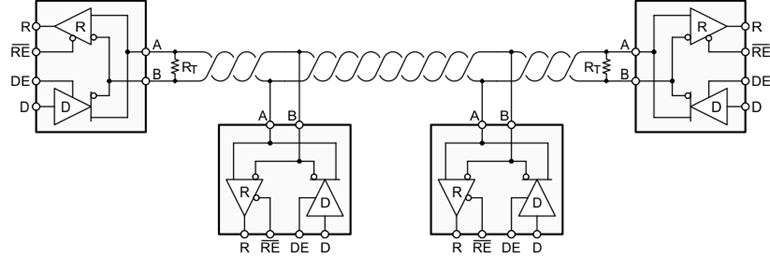

SN65HVD11SHKQ 电路图
