INA271SHKJ

Texas Instruments PMIC - 稳流/电流管理
  • 封装：8-CDFF
  • RoHS：含铅 / 不符合限制有害物质指令(RoHS)规范要求
  • 包装方式：管件
  • 参考价格：$100.8-$96

更新日期：2024-04-01

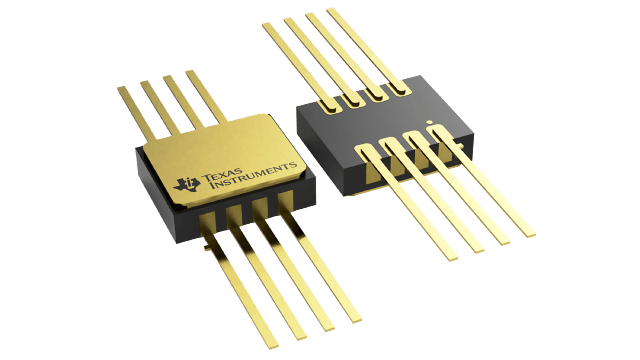

INA271SHKJ

Texas Instruments PMIC - 稳流/电流管理

产品简介：具有直列式滤波器功能的高温、-16V 至 80V、分级电流感应放大器

查看详情
  • 封装：8-CDFF
  • RoHS：含铅 / 不符合限制有害物质指令(RoHS)规范要求
  • 包装方式：管件
  • 参考价格：$100.8-$96

INA271SHKJ 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

INA271SHKJ 中文资料属性参数

  • 标准包装：25
  • 类别：集成电路 (IC)
  • 家庭：PMIC - 稳流/电流管理
  • 系列：-
  • 功能：电流监控器
  • 检测方法：高端
  • 精确度：±1%
  • 输入电压：-16 V ~ 80 V
  • 电流 - 输出：-
  • 工作温度：-55°C ~ 210°C
  • 安装类型：表面贴装
  • 封装/外壳：8-CDFF
  • 供应商设备封装：8-CFP
  • 包装：管件
  • 其它名称：296-28278-5INA271SHKJ-ND

产品特性

  • Wide Common-Mode Range: –16V to +80V
  • CMRR: 78dB
  • Accuracy: ±10mV Offset (max) ±7.5% Gain Error (max) 100µV/°C Offset Drift (max)
  • Bandwidth: Up to 130kHz
  • Transfer Function: 20V/V
  • Quiescent Current: 1600µA (max)
  • Power Supply: +2.7V to +18V
  • Provision for Filtering
  • APPLICATIONS Down-Hole Drilling High Temperature Environments
  • Down-Hole Drilling
  • High Temperature Environments
  • Supports Extreme Temperature Applications Controlled Baseline One Assembly/Test Site One Fabrication Site Available in Extreme (–55°C/210°C) Temperature Range(1) Extended Product Life Cycle Extended Product-Change Notification Product Traceability Texas Instruments high temperature products utilize highly optimized silicon (die) solutions with design and process enhancements to maximize performance over extended temperatures.
  • Controlled Baseline
  • One Assembly/Test Site
  • One Fabrication Site
  • Available in Extreme (–55°C/210°C) Temperature Range(1)
  • Extended Product Life Cycle
  • Extended Product-Change Notification
  • Product Traceability
  • Texas Instruments high temperature products utilize highly optimized silicon (die) solutions with design and process enhancements to maximize performance over extended temperatures.

产品概述

The INA271 is a current-shunt monitor with voltage output and can sense drops across current shunts at common-mode voltages from –16V to +80V, independent of the supply voltage. The INA271 pinouts readily enable filtering.The INA271 is available with a 20V/V output voltage scale. The 130kHz bandwidth simplifies use in current-control loops.The INA271 operates from a single +2.7V to +18V supply, drawing a maximum of 1600µA of supply current. This device is specified over the extended operating temperature range of –55°C to +210°C.
查看全部

INA271SHKJ 数据手册

数据手册 说明 数量 操作
INA271SHKJ

Current Monitor Regulator High-Side 8-CFP

 18页,370K 查看
