HDC2080DMBR

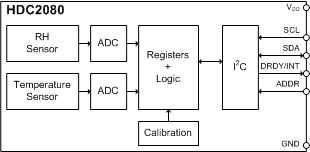

RH (%RH) Accuracy (r%RH) 0 10 20 30 40 50 60 70 80 90 100 0 1 2 3 4 5 6 7 8 9 10 Typical RH Sensor Temperature Sensor Registers + Logic Calibration I 2 C ADC ADC SCL SDA DRDY/INT ADDR HDC2080 V DD MCU V DD GPIO I 2 C Master GND GND 1.80V Product Folder Order Now Technical Documents Tools & Software Support & Community An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. HDC2080 SNAS678–MAY 2018 HDC2080 Low Power Humidity and Temperature Digital Sensor 1 1 Features 1? Relative Humidity Range: 0% to 100% ? Humidity Accuracy: ±2% (Typical), ±3% (Maximum) ? Temperature Accuracy: ±0.2°C (Typical), ±0.4°C (Maximum) ? Sleep Mode Current: 50 nA (Typical), 100 nA (Maximum ) ? Average Supply Current (1 measurement/second) – 300 nA: RH% Only (11 Bit) – 550 nA: RH% (11 Bit) + Temperature (11 Bit) ? Temperature Range: – Operating: –40°C to 85°C
