  • 封装:16-SOIC(0.154",3.90mm 宽)
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:Digi-Reel®
  • 参考价格:$0.9685-$2.07

更新日期:2024-04-01 00:04:00

产品简介:增强型产品,高速 Cmos 逻辑模拟多路复用器/多路解复用器

查看详情
  • 封装:16-SOIC(0.154",3.90mm 宽)
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:Digi-Reel®
  • 参考价格:$0.9685-$2.07

CD74HC4051MM96EP 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

CD74HC4051MM96EP 中文资料属性参数

  • 标准包装:1
  • 类别:集成电路 (IC)
  • 家庭:接口 - 模拟开关,多路复用器,多路分解器
  • 系列:74HC
  • 功能:多路复用器/多路分解器
  • 电路:1 x 8:1
  • 导通状态电阻:130 欧姆
  • 电压电源:单/双电源
  • 电压 - 电源,单路/双路(±):2 V ~ 6 V,±1 V ~ 5 V
  • 电流 - 电源:-
  • 工作温度:-55°C ~ 125°C
  • 安装类型:表面贴装
  • 封装/外壳:16-SOIC(0.154",3.90mm 宽)
  • 供应商设备封装:16-SOIC N
  • 包装:®
  • 其它名称:296-22105-6

产品特性

  • Controlled Baseline One Assembly and Test Site, One Fabrication Site
  • One Assembly and Test Site, One Fabrication Site
  • Extended Temperature Performance of –55°C to 125°C
  • Enhanced Diminishing Manufacturing Sources (DMS) Support
  • Enhanced Product Change Notification
  • Qualification Pedigree(1)
  • Wide Analog Input Voltage Range of ±5 V Max
  • Low ON-Resistance 70 Ω Typical (VCC – VEE = 4.5 V) 40 Ω Typical (VCC – VEE = 9 V)
  • 70 Ω Typical (VCC – VEE = 4.5 V)
  • 40 Ω Typical (VCC – VEE = 9 V)
  • Low Crosstalk Between Switches
  • Fast Switching and Propagation Speeds
  • Break-Before-Make Switching
  • Operation Control Voltage = 2 V to 6 V
  • Switch Voltage = 0 V to 10 V
  • High Noise Immunity NIL = 30%, NIH = 30% of VCC, VCC = 5 V

产品概述

The CD74HC4051-EP is a digitally controlled analog switch that uses silicon gate CMOS technology to achieve operating speeds similar to LSTTL, with the low power consumption of standard CMOS integrated circuits.This analog multiplexer and demultiplexer controls analog voltages that may vary across the voltage supply range (that is, VCC to VEE). These bidirectional switches allow the use of any analog input as an output and vice versa. The switches have low ON-resistance and low OFF leakages. In addition, the device has an enable control (E) that, when high, disables all switches to their OFF state.

CD74HC4051MM96EP 数据手册

数据手册 说明 数量 操作
CD74HC4051MM96EP

1 Circuit IC Switch 8:1 130 Ohm 16-SOIC

23页,939K 查看

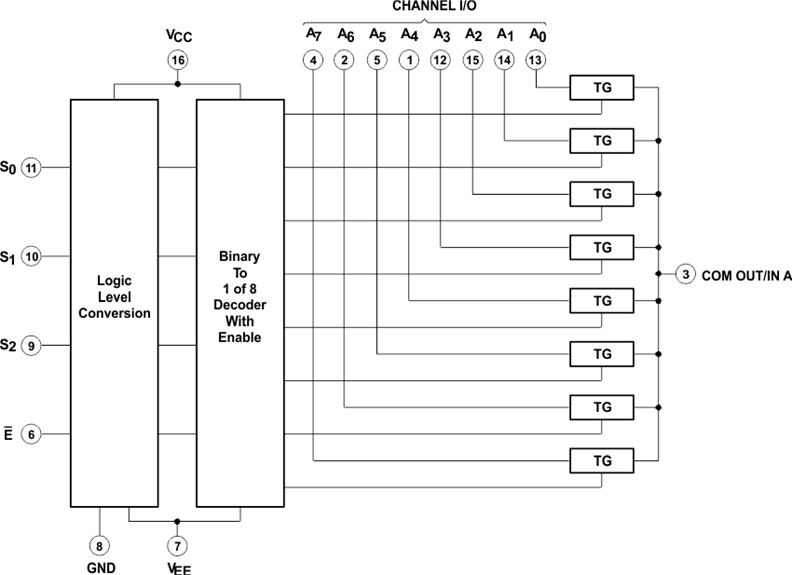

CD74HC4051MM96EP 电路图

CD74HC4051MM96EP 电路图

CD74HC4051MM96EP 电路图
