CC2590RGVT

Texas Instruments RF 前端 (LNA + PA)
  • 封装：16-VQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel?
  • 参考价格：$3.798-$5.18

更新日期：2024-04-01

CC2590RGVT

Texas Instruments RF 前端 (LNA + PA)

产品简介：具有高达 +14dBm 输出功率的 2.4GHz 范围扩展器

查看详情
  • 封装：16-VQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel?
  • 参考价格：$3.798-$5.18

CC2590RGVT 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

CC2590RGVT 中文资料属性参数

  • 产品培训模块：RFID Technology and Applications
  • 标准包装：1
  • 类别：RF/IF 和 RFID
  • 家庭：RF 前端 (LNA + PA)
  • 系列：-
  • RF 型：ISM
  • 频率：2.4GHz
  • 特点：-
  • 封装/外壳：16-VQFN 裸露焊盘
  • 供应商设备封装：16-VQFN-EP（4x4）
  • 包装：?
  • 其它名称：296-23853-6

产品特性

  • Seamless Interface to 2.4-GHz Low Power RF Devices from Texas Instruments
  • Up to +14-dBm (25mW) Output Power
  • 6-dB Typical Improved Sensitivity on CC24xx and CC2500, CC2510, and CC2511
  • Few External ComponentsIntegrated SwitchesIntegrated Matching NetworkIntegrated BalunIntegrated InductorsIntegrated PAIntegrated LNA
  • Integrated Switches
  • Integrated Matching Network
  • Integrated Balun
  • Integrated Inductors
  • Integrated PA
  • Integrated LNA
  • Digital Control of LNA Gain by HGM Pin
  • 100-nA in Power Down (EN = PAEN = 0)
  • Low Transmit Current Consumption22-mA at 3-V for +12-dBm, PAE = 23%
  • 22-mA at 3-V for +12-dBm, PAE = 23%
  • Low Receive Current Consumption3.4-mA for High Gain Mode1.8-mA for Low Gain Mode
  • 3.4-mA for High Gain Mode
  • 1.8-mA for Low Gain Mode
  • 4.6-dB LNA Noise Figure, including T/R Switch and external antenna match
  • RoHS Compliant 4×4-mm QFN-16 Package
  • 2.0-V to 3.6-V Operation
  • APPLICATIONSAll 2.4-GHz ISM Band SystemsWireless Sensor NetworksWireless Industrial SystemsIEEE 802.15.4 and ZigBee SystemsWireless Consumer SystemsWireless Audio Systems
  • All 2.4-GHz ISM Band Systems
  • Wireless Sensor Networks
  • Wireless Industrial Systems
  • IEEE 802.15.4 and ZigBee Systems
  • Wireless Consumer Systems
  • Wireless Audio Systems

产品概述

CC2590 is a cost-effective and high performance RF Front End for low-power and low-voltage 2.4-GHz wireless applications.CC2590 is a range extender for all existing and future 2.4-GHz low-power RF transceivers, transmitters and System-on-Chip products from Texas Instruments.CC2590 increases the link budget by providing a power amplifier for increased output power, and an LNA with low noise figure for improved receiver sensitivity.CC2590 provides a small size, high output power RF design with its 4x4-mm QFN-16 package.CC2590 contains PA, LNA, switches, RF-matching, and balun for simple design of high performance wireless applications.
查看全部

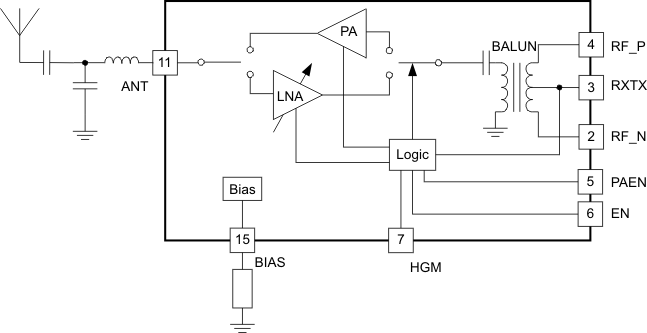

CC2590RGVT 电路图

CC2590RGVT 电路图

CC2590RGVT 电路图
