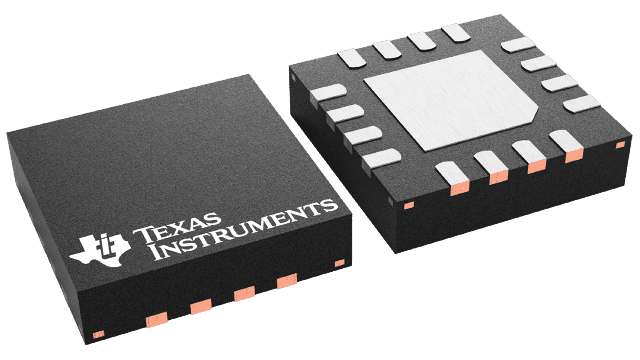

CC1190RGVR

Texas Instruments RF 前端 (LNA + PA)
  • 封装：16-VQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：带卷 (TR)
  • 参考价格：$1.995

更新日期：2024-04-01

CC1190RGVR

Texas Instruments RF 前端 (LNA + PA)

产品简介：850MHz 至 950MHz 射频前端

查看详情
  • 封装：16-VQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：带卷 (TR)
  • 参考价格：$1.995

CC1190RGVR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

CC1190RGVR 中文资料属性参数

  • 标准包装：2,500
  • 类别：RF/IF 和 RFID
  • 家庭：RF 前端 (LNA + PA)
  • 系列：-
  • RF 型：ISM
  • 频率：850MHz ~ 950MHz
  • 特点：-
  • 封装/外壳：16-VQFN 裸露焊盘
  • 供应商设备封装：16-VQFN-EP（4x4）
  • 包装：带卷 (TR)

产品特性

  • Seamless Interface to Sub-1 GHz Low Power RF Devices from Texas Instruments
  • Up to 27 dBm (0.5 W) Output Power
  • 6 dB Typical Sensitivity Improvement with CC11xx and CC430
  • Few External ComponentsIntegrated PAIntegrated LNAIntegrated SwitchesIntegrated Matching NetworkIntegrated Inductors
  • Integrated PA
  • Integrated LNA
  • Integrated Switches
  • Integrated Matching Network
  • Integrated Inductors
  • Digital Control of LNA and PA Gain by HGM Pin
  • 50-nA in Power Down (LNA_EN = PA_EN = 0)
  • High Transmit Power Efficiency PAE = 50% at 26 dBm Output Power
  • PAE = 50% at 26 dBm Output Power
  • Low Receive Current Consumption3 mA for High Gain Mode26 µA for Low Gain Mode
  • 3 mA for High Gain Mode
  • 26 µA for Low Gain Mode
  • 2.9 dB LNA Noise Figure, Including Switch and External Antenna Match
  • RoHS Compliant 4-mm × 4-mm QFN-16 Package
  • 2 V to 3.7 V Operation
  • APPLICATIONS 850 - 950 MHz ISM Bands Wireless Systems Wireless Sensor NetworksWireless Industrial SystemsIEEE 802.15.4 SystemsWireless Consumer SystemsWireless Metering (AMR/AMI) SystemsSmart Grid Wireless Networks
  • 850 - 950 MHz ISM Bands Wireless Systems
  • Wireless Sensor Networks
  • Wireless Industrial Systems
  • IEEE 802.15.4 Systems
  • Wireless Consumer Systems
  • Wireless Metering (AMR/AMI) Systems
  • Smart Grid Wireless Networks

产品概述

CC1190 is a cost-effective and high-performance RF Front End for low-power and low-voltage wireless applications at 850 - 950 MHz.CC1190 is a range extender for the sub-1 GHz low-power RF transceivers, transmitters, and System-on-Chip devices from Texas Instruments.CC1190 integrates a power amplifier (PA), a low-noise amplifier (LNA), switches, and RF matching for the design of a high-performance wireless systems. CC1190 increases the link budget by providing a power amplifier for increased output power, and an LNA with low noise figure for improved receiver sensitivity.CC1190 provides an efficient and easy-to-use range extender in a compact 4-mm × 4-mm QFN-16 package.
