V62/08631-01YE 中文资料属性参数

现有数量：0现货查看交期
价格：250 : ￥88.73604卷带（TR）
系列：*
包装：卷带（TR）
产品状态：在售
核心处理器：-
内核规格：-
速度：-
连接能力：-
外设：-
I/O 数：-
程序存储容量：-
程序存储器类型：-
EEPROM 容量：-
RAM 大小：-
电压 - 供电 (Vcc/Vdd)：-
数据转换器：-
振荡器类型：-
工作温度：-
安装类型：-
封装/外壳：-
供应商器件封装：-

产品特性

Low Supply Voltage Range 1.8 V to 3.6 V
Ultralow-Power Consumption Active Mode: 270 µA at 1 MHz, 2.2 V Standby Mode: 0.7 µA Off Mode (RAM Retention): 0.1 µA
Active Mode: 270 µA at 1 MHz, 2.2 V
Standby Mode: 0.7 µA
Off Mode (RAM Retention): 0.1 µA
Ultrafast Wake-Up From Standby Mode in Less than 1 µs
16-Bit RISC Architecture, 62.5 ns Instruction Cycle Time
Basic Clock Module Configurations Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1% Internal Very Low Power LF Oscillator 32-kHz Crystal (Available Only from –55°C to 105°C) High-Frequency Crystal up to 16 MHz (Available Only from –55°C to 125°C) Resonator External Digital Clock Source External Resistor
Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1%
Internal Very Low Power LF Oscillator
32-kHz Crystal (Available Only from –55°C to 105°C)
High-Frequency Crystal up to 16 MHz (Available Only from –55°C to 125°C)
Resonator
External Digital Clock Source
External Resistor
16-Bit Timer_A With Three Capture/Compare Registers
16-Bit Timer_B With Three Capture/Compare Registers
Universal Serial Communication Interface Enhanced UART Supporting Auto-Baud-Rate Detection (LIN) IrDA Encoder and Decoder Synchronous SPI I2C™
Enhanced UART Supporting Auto-Baud-Rate Detection (LIN)
IrDA Encoder and Decoder
Synchronous SPI
I2C™
10-Bit, 200-ksps A/D Converter With Internal Reference, Sample-and-Hold, and Autoscan and Data Transfer Controller
Two Configurable Operational Amplifiers
Brownout Detector
Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse
Bootstrap Loader
On-Chip Emulation Logic
Family Members Include the MSP430F2274 With 32KB + 256B Flash Memory, 1KB RAM
Available in 40-Pin QFN Package and 38-Pin Thin Shrink Small-Outline DA Package
For Complete Module Descriptions, Refer to the MSP430x2xx Family User–sGuide
SUPPORTS DEFENSE, AEROSPACE, AND MEDICAL APPLICATIONS Controlled Baseline One Assembly/Test Site One Fabrication Site Available in Military (–55°C/125°C) Temperature Range(1) Extended Product Life Cycle Extended Product-Change Notification Product Traceability
Controlled Baseline
One Assembly/Test Site
One Fabrication Site
Available in Military (–55°C/125°C) Temperature Range(1)
Extended Product Life Cycle
Extended Product-Change Notification
Product Traceability

产品概述

The Texas Instruments MSP430 family of ultralow power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.The MSP430F2274M series is an ultralow-power mixed signal microcontroller with two built-in 16-bit timers, a universal serial communication interface, 10-bit A/D converter with integrated reference and data transfer controller (DTC), two general-purpose operational amplifiers in the MSP430F2274M devices, and 32 I/O pins.Typical applications include sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system. Stand-alone RF sensor front end is another area of application.

查看全部

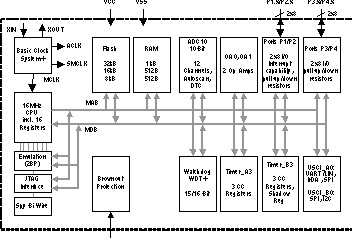

V62/08631-01YE 电路图
