V62/04659-01XE

Texas Instruments 逻辑集成电路
  • 参考价格：￥2.82-￥7.11

更新日期：2024-04-01 00:04:00

V62/04659-01XE

Texas Instruments 逻辑集成电路

产品简介：增强型产品四路 2 线至 1 线数据选择器/多路复用器

查看详情
  • 参考价格：￥2.82-￥7.11

V62/04659-01XE 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

V62/04659-01XE 中文资料属性参数

  • 制造商：Texas Instruments
  • 产品种类：编码器、解码器、复用器和解复用器
  • 产品：Selector / Multiplexer
  • 逻辑系列：LVC
  • 线路数量（输入/输出）：2 / 1
  • 传播延迟时间：5.4 ns
  • Supply Voltage - Max：3.6 V
  • Supply Voltage - Min：2 V
  • 最大工作温度：+ 125 C
  • 安装风格：SMD/SMT

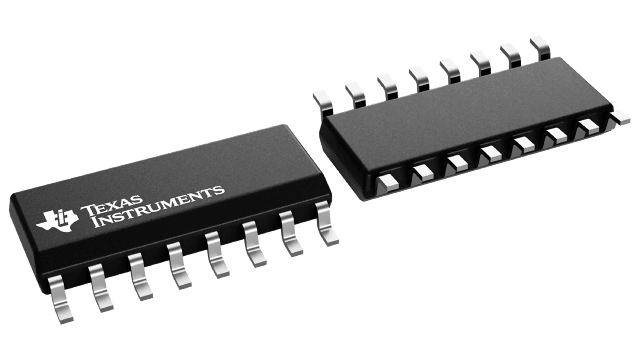

  • 封装 / 箱体：SOIC-16
  • 封装：Reel
  • 最小工作温度：- 40 C
  • 输入线路数量：2
  • 输出线路数量：1
  • 工作温度范围：- 40 C to + 125 C
  • 工作电压：2 V to 3.6 V
  • 工厂包装数量：2500

产品特性

  • Controlled Baseline One Assembly/Test Site, One Fabrication Site
  • One Assembly/Test Site, One Fabrication Site
  • Extended Temperature Performance of –40°C to 125°C
  • Enhanced Diminishing Manufacturing Sources (DMS) Support
  • Enhanced Product-Change Notification
  • Qualification Pedigree
  • ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
  • Operates From 2 V to 3.6 V
  • Inputs Accept Voltages to 5.5 V
  • Max tpd of 5.4 ns at 3.3 V
  • Typical VOLP (Output Ground Bounce)    <0.8 V at VCC = 3.3 V, TA = 25°C
  • Typical VOHV (Output VOH Undershoot)    >2 V at VCC = 3.3 V, TA = 25°C

产品概述

The SN74LVC157A-EP quadruple 2-line to 1-line data selector/multiplexer is designed for 2.7-V to 3.6-V VCC operation.This device features a common strobe (G)\ input. When G\ is high, all outputs are low. When G\ is low, a 4-bit word is selected from one of two sources and is routed to the four outputs. The device provides true data.Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in a mixed 3.3-V/5-V system environment.
