UCD90124RGCT

Texas Instruments PMIC - 监控器
  • 封装：64-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$13.2475-$17.18

更新日期：2024-04-01

UCD90124RGCT

Texas Instruments PMIC - 监控器

产品简介：具有风扇控制的 12 导轨序列发生器和系统安全控制器

查看详情
  • 封装：64-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$13.2475-$17.18

UCD90124RGCT 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

UCD90124RGCT 中文资料属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：PMIC - 监控器
  • 系列：-
  • 类型：序列发生器
  • 监视电压数目：12
  • 输出：-
  • 复位：低有效
  • 复位超时：最小为 2 µs
  • 电压 - 阀值：可调节/可选择
  • 工作温度：-40°C ~ 110°C
  • 安装类型：表面贴装
  • 封装/外壳：64-VFQFN 裸露焊盘
  • 供应商设备封装：64-VQFN 裸露焊盘（9x9）
  • 包装：®
  • 其它名称：296-25837-6

产品特性

  • Monitor and Sequence 12 Voltage Rails All Rails Sampled Every 400 µs 12-bit ADC With 2.5-V, 0.5% Internal VREF Sequence Based on Time, Rail and Pin Dependencies Four Programmable Undervoltage and Overvoltage Thresholds per Monitor
  • All Rails Sampled Every 400 µs
  • 12-bit ADC With 2.5-V, 0.5% Internal VREF
  • Sequence Based on Time, Rail and Pin Dependencies
  • Four Programmable Undervoltage and Overvoltage Thresholds per Monitor
  • Fan Control and Monitoring Supports Four Fans With Five User-Defined Speed-vs-Temperature Setpoints Supports Two-, Three-, and Four-Wire Fans
  • Supports Four Fans With Five User-Defined Speed-vs-Temperature Setpoints
  • Supports Two-, Three-, and Four-Wire Fans
  • Nonvolatile Error and Peak-Value Logging per Monitor (up to 10 Fault Detail Entries)
  • Closed-Loop Margining for 10 Rails Margin Output Adjusts Rail Voltage to Match User-Defined Margin Thresholds
  • Margin Output Adjusts Rail Voltage to Match User-Defined Margin Thresholds
  • Programmable Watchdog Timer and System Reset
  • Flexible Digital I/O Configuration
  • Multiphase PWM Clock Generator Clock Frequencies From 15.259 kHz to 125 MHz Capability to Configure Independent Clock Outputs for Synchronizing Switch-Mode Power Supplies
  • Clock Frequencies From 15.259 kHz to 125 MHz
  • Capability to Configure Independent Clock Outputs for Synchronizing Switch-Mode Power Supplies
  • Internal Temperature Sensor
  • JTAG and I2C/SMBus/PMBus™ Interfaces
  • APPLICATIONS Industrial / ATE Telecommunications and Networking Equipment Servers and Storage Systems Embedded Computing Any System Requiring Sequencing and Monitoring of Multiple Power Rails
  • Industrial / ATE
  • Telecommunications and Networking Equipment
  • Servers and Storage Systems
  • Embedded Computing
  • Any System Requiring Sequencing and Monitoring of Multiple Power Rails

产品概述

The UCD90124 is a 12-rail PMBus/I2C addressable power-supply sequencer and system-health monitor. The device integrates a 12-bit ADC for monitoring up to 13 power-supply voltage, current, or temperature inputs. Twenty-six GPIO pins can be used for power supply enables, power-on reset signals, external interrupts, cascading, or other system functions. Twelve of these pins offer PWM functionality. Using these pins, the UCD90124 offers support for fan control, margining, and general-purpose PWM functions.Fan-control signals can be sent using PMBus commands or generated from one of two built-in fan-control algorithms. PWM outputs combined with temperature and fan-speed measurements provide a complete fan-control solution for up to four independent fans.The TI Fusion Digital Power designer software is provided for device configuration. This PC-based graphical user interface (GUI) offers an intuitive interface for configuring, storing, and monitoring all system operating parameters.
查看全部

UCD90124RGCT 数据手册

数据手册 说明 数量 操作
UCD90124RGCT

Supervisor 12 Channel 64-VQFN (9x9)

 47页,2.99M 查看

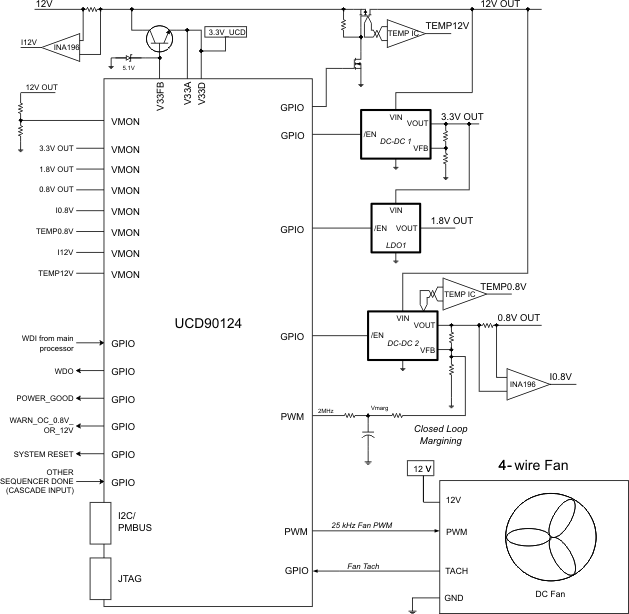

UCD90124RGCT 电路图
