UCC28600DR

Texas Instruments PMIC - AC-DC 转换器，离线开关
  • 封装：8-SOIC（0.154"，3.90mm 宽）
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$0.62-$1.44

更新日期：2024-04-01

UCC28600DR

Texas Instruments PMIC - AC-DC 转换器，离线开关

产品简介：8 引脚准谐振绿色环保模式反激式控制器

查看详情
  • 封装：8-SOIC（0.154"，3.90mm 宽）
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$0.62-$1.44

UCC28600DR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

UCC28600DR 中文资料属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：PMIC - AC-DC 转换器，离线开关
  • 系列：-
  • 输出隔离：隔离
  • 频率范围：40kHz ~ 130kHz
  • 输入电压：9.3 V ~ 32 V
  • 输出电压：-
  • 功率（瓦特）：-
  • 工作温度：-40°C ~ 105°C
  • 封装/外壳：8-SOIC（0.154"，3.90mm 宽）
  • 供应商设备封装：8-SOIC
  • 包装：®
  • 其它名称：296-27161-6

产品特性

  • Green-Mode Controller With Advanced Energy Saving Features
  • Quasi-Resonant Mode Operation for Reduced EMI and Low Switching Losses (Low-Voltage Valley Switching)
  • Low Standby Current for Minimum System No- Load Power Consumption
  • Low Start-up Current: 25-µA Maximum
  • Programmable Line and Load Over-Voltage Protection
  • Internal Over-Temperature Protection
  • Current Limit Protection Cycle-by-Cycle Power Limit Primary-Side Over-Current Hiccup Restart Mode
  • Cycle-by-Cycle Power Limit
  • Primary-Side Over-Current Hiccup Restart Mode
  • 1-A Sink, –0.75-A Source TrueDrive™ Gate Drive Output
  • Programmable Soft-Start
  • Green-Mode Status Pin (PFC Disable Function)

产品概述

The UCC28600 is a PWM controller with advanced energy features to meet stringent world-wide energy efficiency requirements. UCC28600 integrates built-in advanced energy saving features with high-level protection features to provide cost-effective solutions for energy-efficient power supplies. UCC28600 incorporates frequency fold-back and green-mode operation to reduce the switching losses at light-load and no-load conditions.UCC28600 is available in the 8-pin SOIC package. Operating junction temperature range is –40°C to +105°C.The UCC28600 Design Calculator, (SLVC104), located in the Tools and Software section of the UCC28600 product folder, provides a user-interactive iterative process for selecting recommended component values for an optimal design.
查看全部

UCC28600DR 数据手册

数据手册 说明 数量 操作
UCC28600DR

8-Pin Quasi Resonant Flyback Green Mode Controller 8-SOIC -40 to 105

27页,591K 查看

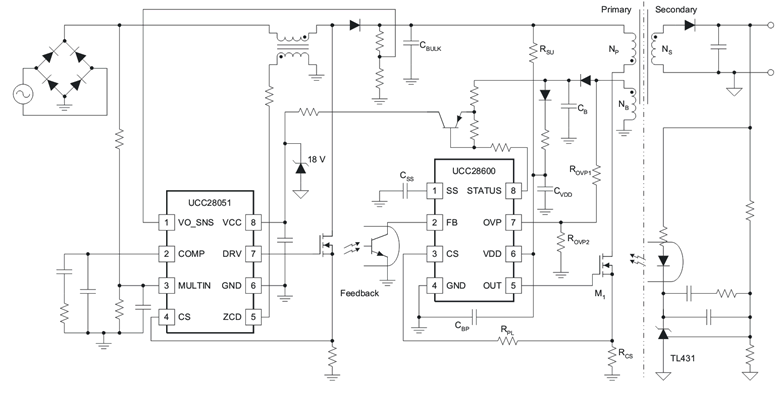

UCC28600DR 电路图

UCC28600DR 电路图

UCC28600DR 电路图
