- 封装：24-VFQFN 裸露焊盘
- RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
- 包装方式：Digi-Reel?
- 参考价格：$10.8872-$9.975
更新日期：2024-04-01
产品简介：350MHz 至 4.0GHz 正交调制器，3.3V 共模电压
查看详情- 封装：24-VFQFN 裸露焊盘
- RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
- 包装方式：Digi-Reel?
- 参考价格：$10.8872-$9.975
TRF370333IRGET 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
原厂原装
22+ -
3288
-
上海市
-
-
-
一级代理原装
-
TI/德州仪器
-
QFN
21+ -
10000
-
杭州
-
-
-
只做原装现货，大量现货热卖
-
TI
-
原厂原封装
新批号 -
887000
-
上海市
-
-
-
原厂发货进口原装微信同步QQ893727827
TRF370333IRGET 中文资料属性参数
- 产品培训模块：RFID Technology and Applications
- 标准包装：1
- 类别：RF/IF 和 RFID
- 家庭：RF 调制器
- 系列：-
- 功能：调制器
- LO 频率：400MHz ~ 4GHz
- RF 频率：400MHz ~ 4GHz
- P1dB：9.5dBm
- 底噪：-163dBm/Hz
- 输出功率：-4.5dBm
- 电流 - 电源：235mA
- 电源电压：4.5 V ~ 5.5 V
- 测试频率：2.14GHz
- 封装/外壳：24-VFQFN 裸露焊盘
- 包装：Digi-Reel?
- 配用：296-31300-ND - EVAL MODULE FOR TRF3703-33
- 其它名称：296-21288-6
产品特性
- 75-dBc Single-Carrier WCDMA ACPR at –11-dBm Channel Power
- Low Noise Floor: –163 dBm/Hz
- OIP3 of 23 dBm
- P1dB of 9 dBm
- Unadjusted Carrier Feedthrough of –40 dBm
- Unadjusted Side-Band Suppression of –40 dBc
- Single Supply: 4.5 V–5.5 V Operation
- Silicon Germanium Technology
- TRF370333 With 3.3-V CM at I, Q Baseband Inputs
- TRF370315 With 1.5-V CM at I, Q Baseband Inputs
- APPLICATIONS Cellular Base Transceiver Station Transmit Channel CDMA: IS95, UMTS, CDMA2000, TD-SCDMA TDMA: GSM, IS-136, EDGE/UWC-136 Wireless Local Loop Wireless MAN Wideband Transceivers
- Cellular Base Transceiver Station Transmit Channel
- CDMA: IS95, UMTS, CDMA2000, TD-SCDMA
- TDMA: GSM, IS-136, EDGE/UWC-136
- Wireless Local Loop
- Wireless MAN Wideband Transceivers
产品概述
The TRF370315 and TRF370333 are low-noise direct quadrature modulators, capable of converting complex
modulated signals from baseband or IF directly up to RF. The TRF370315 and TRF370333 are ideal for
high-performance direct RF modulation from 350 MHz up to 4 GHz. These modulators are implemented as a
double-balanced mixer. The RF output block consists of a differential to single-ended converter and an RF
amplifier capable of driving a single-ended 50-Ω load without any need of external components. The TRF370333
and TRF370315 devices have different common-mode voltage ratings at the I/Q baseband inputs. The
TRF370315 requires a 1.5-V common-mode voltage, and the TRF370333 requires a 3.3-V common-mode voltage.

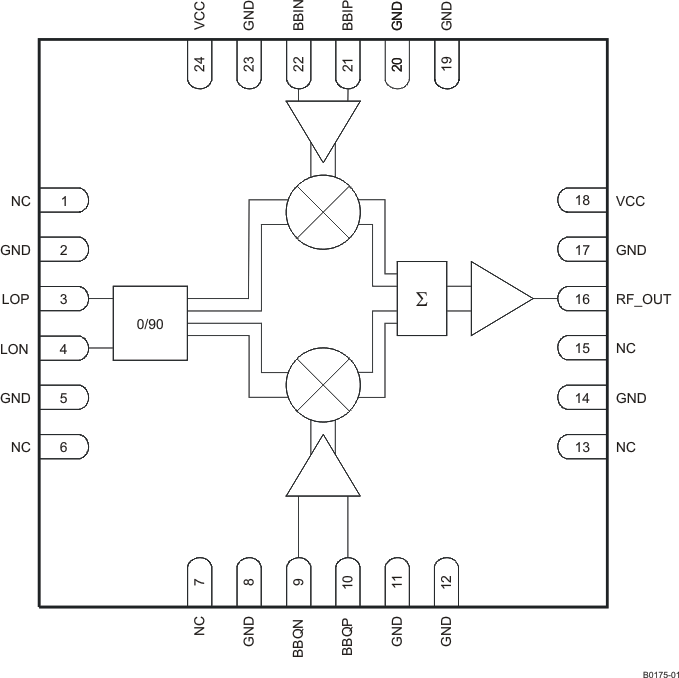

TRF370333IRGET 电路图
TRF370333IRGET 电路图
