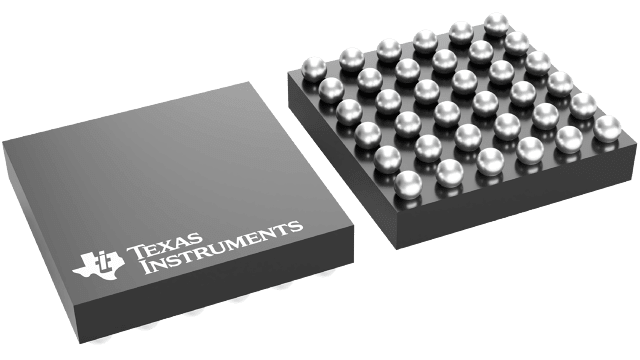

TPS65200YFFR

Texas Instruments PMIC - 电池管理
  • 封装：36-DSBGA
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$3.528-$7.06

更新日期：2024-04-01

TPS65200YFFR

Texas Instruments PMIC - 电池管理

产品简介：具有 WLED 驱动器和电流并联监控器的锂离子电池充电器

查看详情
  • 封装：36-DSBGA
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$3.528-$7.06

TPS65200YFFR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TPS65200YFFR 中文资料属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：PMIC - 电池管理
  • 系列：-
  • 功能：充电管理
  • 电池化学：锂离子（Li-Ion）、锂聚合物（Li-Pol）
  • 电源电压：4 V ~ 6 V
  • 工作温度：-40°C ~ 85°C
  • 安装类型：表面贴装
  • 封装/外壳：36-DSBGA
  • 供应商设备封装：36-DSBGA
  • 包装：®
  • 其它名称：296-28043-6

产品特性

  • Battery Switching Charger, WLED Driver, and Current Shunt Monitor in a Single Package
  • Battery Charger Charges Faster Than Linear Chargers High-Accuracy Voltage and Current Regulation Input Current Regulation Accuracy: ±5% (100 mA, 500 mA) Charge Voltage Regulation Accuracy: ±0.5% (25°C) ±1% (0 - 125°C) Charge Current Regulation Accuracy: ±5% Bad Adaptor Detection and Rejection Safety Limit Register for Maximum Charge Voltage and Current Limiting High-Efficiency Mini-USB/AC Battery Charger for Single-Cell Li-Ion and Li-Polymer Battery Packs Built-In Input Current Sensing and Limiting Integrated Power FETs for Up to 1.25-A Charge Rate Programmable Charge Parameters through I2C Interface (Up to 400 Kbps): Input Current Fast-Charge/Termination Current Charge Voltage (3.5 V – 4.44 V) Safety Timer Termination Enable Synchronous Fixed-Frequency PWM Controller Operating at 3 MHz With 0% to 99.5% Duty Cycle Safety Timer With Reset Control Reverse Leakage Protection Prevents Battery Drainage Thermal Regulation and Protection Input/Output Overvoltage Protection Automatic Charging Boost Mode Operation for USB OTG Input Voltage Range (VSYS): 2.5 V to 4.5 V Output Voltage for VBUS: 5 V
  • Charges Faster Than Linear Chargers
  • High-Accuracy Voltage and Current Regulation Input Current Regulation Accuracy: ±5% (100 mA, 500 mA) Charge Voltage Regulation Accuracy: ±0.5% (25°C) ±1% (0 - 125°C) Charge Current Regulation Accuracy: ±5%
  • Input Current Regulation Accuracy: ±5% (100 mA, 500 mA)
  • Charge Voltage Regulation Accuracy: ±0.5% (25°C) ±1% (0 - 125°C)
  • Charge Current Regulation Accuracy: ±5%
  • Bad Adaptor Detection and Rejection
  • Safety Limit Register for Maximum Charge Voltage and Current Limiting
  • High-Efficiency Mini-USB/AC Battery Charger for Single-Cell Li-Ion and Li-Polymer Battery Packs
  • Built-In Input Current Sensing and Limiting
  • Integrated Power FETs for Up to 1.25-A Charge Rate
  • Programmable Charge Parameters through I2C Interface (Up to 400 Kbps): Input Current Fast-Charge/Termination Current Charge Voltage (3.5 V – 4.44 V) Safety Timer Termination Enable
  • Input Current
  • Fast-Charge/Termination Current
  • Charge Voltage (3.5 V – 4.44 V)
  • Safety Timer
  • Termination Enable
  • Synchronous Fixed-Frequency PWM Controller Operating at 3 MHz With 0% to 99.5% Duty Cycle
  • Safety Timer With Reset Control
  • Reverse Leakage Protection Prevents Battery Drainage
  • Thermal Regulation and Protection
  • Input/Output Overvoltage Protection
  • Automatic Charging
  • Boost Mode Operation for USB OTG Input Voltage Range (VSYS): 2.5 V to 4.5 V Output Voltage for VBUS: 5 V
  • Input Voltage Range (VSYS): 2.5 V to 4.5 V
  • Output Voltage for VBUS: 5 V
  • 35-V Open LED Protection for Up to 8 LEDs
  • 200-mV Reference Voltage With ±2% Accuracy
  • Built-In Soft Start for WLED Boost
  • Up to 90% Efficiency
  • Fixed Gain of 25 V/V
  • Input Referred Offset Voltage Less Than ±40 µV Typical Enables Use of Shunt Resistors as Low as 20 mΩ
  • Buffered Reference Voltage
  • 36-Ball, 0.4-mm Pitch DSBGA Package
  • Mobile Phones and Smart Phones
  • MP3 Players
  • Portable Navigation Devices
  • Handheld Devices

产品概述

The TPS65200 device integrates a high-efficiency, USB-friendly switched-mode charger with OTG support for single-cell Li-ion and Li-polymer batteries, D+D– detection, a 50-mA fixed-voltage LDO, a high-efficiency WLED boost converter, and high-accuracy current-shunt monitor into a single chip.The TPS65200 comes in a tiny, 2.8-mm × 2.6-mm, 36-pin, 0.4-mm pitch die size ball grid array (DSBGA).
