TPS650244RHBT

Texas Instruments PMIC - 电池管理
  • 封装：32-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$6.494-$8.77

更新日期：2024-04-01 00:04:00

TPS650244RHBT

Texas Instruments PMIC - 电池管理

产品简介：适用于单节锂离子电池系统的 6 通道电源管理 IC (PMIC)

查看详情
  • 封装：32-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$6.494-$8.77

TPS650244RHBT 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TPS650244RHBT 中文资料属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：PMIC - 电池管理
  • 系列：-
  • 功能：电源管理
  • 电池化学：锂离子（Li-Ion）、锂聚合物（Li-Pol）
  • 电源电压：2.5 V ~ 6 V
  • 工作温度：-40°C ~ 85°C
  • 安装类型：表面贴装
  • 封装/外壳：32-VFQFN 裸露焊盘
  • 供应商设备封装：32-QFN 裸露焊盘（5x5）
  • 包装：®
  • 其它名称：296-23067-6

产品特性

  • 1.6-A, 1.0-A, or 0.8-A, 97% Efficient Step-Down Converter for System Voltage (VDCDC1) 3.3 V or 2.80 V or Adjustable
  • 3.3 V or 2.80 V or Adjustable
  • 1.6-A, 1.0-A, or 0.8-A, up to 95% Efficient Step-Down Converter for Memory Voltage (VDCDC2) 1.8 V or 2.5 V or Adjustable
  • 1.8 V or 2.5 V or Adjustable
  • 0.8-A, 90% Efficient Step-Down Converter for Processor Core (VDCDC3)
  • Two Selectable Voltages for VDCDC3 TPS650240: DEFDCDC3 = LOW: VO = 1.0 V DEFDCDC3 = HIGH: VO = 1.3 V TPS650241: DEFDCDC3 = LOW: VO = 0.9 V DEFDCDC3 = HIGH: VO= 1.375 V TPS650242: DEFDCDC3 = LOW: VO = 1.0 V DEFDCDC3 = HIGH: VO = 1.5 V TPS650243: DEFDCDC3 = LOW: VO = 1.0 V DEFDCDC3 = HIGH: VO = 1.2 V TPS650244: DEFDCDC3 = LOW: VO = 1.55 V DEFDCDC3 = HIGH: VO = 1.6 V TPS650245: DEFDCDC3 = LOW: VO = 0.9 V DEFDCDC3 = HIGH: VO = 1.1 V
  • TPS650240: DEFDCDC3 = LOW: VO = 1.0 V DEFDCDC3 = HIGH: VO = 1.3 V
  • DEFDCDC3 = LOW: VO = 1.0 V
  • DEFDCDC3 = HIGH: VO = 1.3 V
  • TPS650241: DEFDCDC3 = LOW: VO = 0.9 V DEFDCDC3 = HIGH: VO= 1.375 V
  • DEFDCDC3 = LOW: VO = 0.9 V
  • DEFDCDC3 = HIGH: VO= 1.375 V
  • TPS650242: DEFDCDC3 = LOW: VO = 1.0 V DEFDCDC3 = HIGH: VO = 1.5 V
  • DEFDCDC3 = LOW: VO = 1.0 V
  • DEFDCDC3 = HIGH: VO = 1.5 V
  • TPS650243: DEFDCDC3 = LOW: VO = 1.0 V DEFDCDC3 = HIGH: VO = 1.2 V
  • DEFDCDC3 = LOW: VO = 1.0 V
  • DEFDCDC3 = HIGH: VO = 1.2 V
  • TPS650244: DEFDCDC3 = LOW: VO = 1.55 V DEFDCDC3 = HIGH: VO = 1.6 V
  • DEFDCDC3 = LOW: VO = 1.55 V
  • DEFDCDC3 = HIGH: VO = 1.6 V
  • TPS650245: DEFDCDC3 = LOW: VO = 0.9 V DEFDCDC3 = HIGH: VO = 1.1 V
  • DEFDCDC3 = LOW: VO = 0.9 V
  • DEFDCDC3 = HIGH: VO = 1.1 V
  • 30-mA LDO for Vdd_alive
  • 2 × 200-mA General-Purpose LDOs (LDO1 and LDO2)
  • Dynamic Voltage Management for Processor Core
  • LDO1 and LDO2 Voltage Externally Adjustable
  • Separate Enable Pins for Inductive Converters
  • 2.25-MHz Switching Frequency
  • 85-μA Quiescent Current
  • Thermal Shutdown Protection

产品概述

The TPS65024x devices are integrated power management ICs for applications powered by one Li-Ion or Li-Polymer cell, which require multiple power rails. The TPS65024x provide three highly efficient, step-down converters targeted at providing the core voltage, peripheral, I/O, and memory rails in a processor-based system. All three step-down converters enter a low power mode at light load for maximum efficiency across the widest possible range of load currents. The converters can be forced into fixed-frequency PWM mode by pulling the MODE pin high.
查看全部

TPS650244RHBT 数据手册

数据手册 说明 数量 操作
TPS650244RHBT

Battery Power Management IC Lithium-Ion/Polymer 32-VQFN (5x5)

 38页,1.32M 查看

TPS650244RHBT 电路图

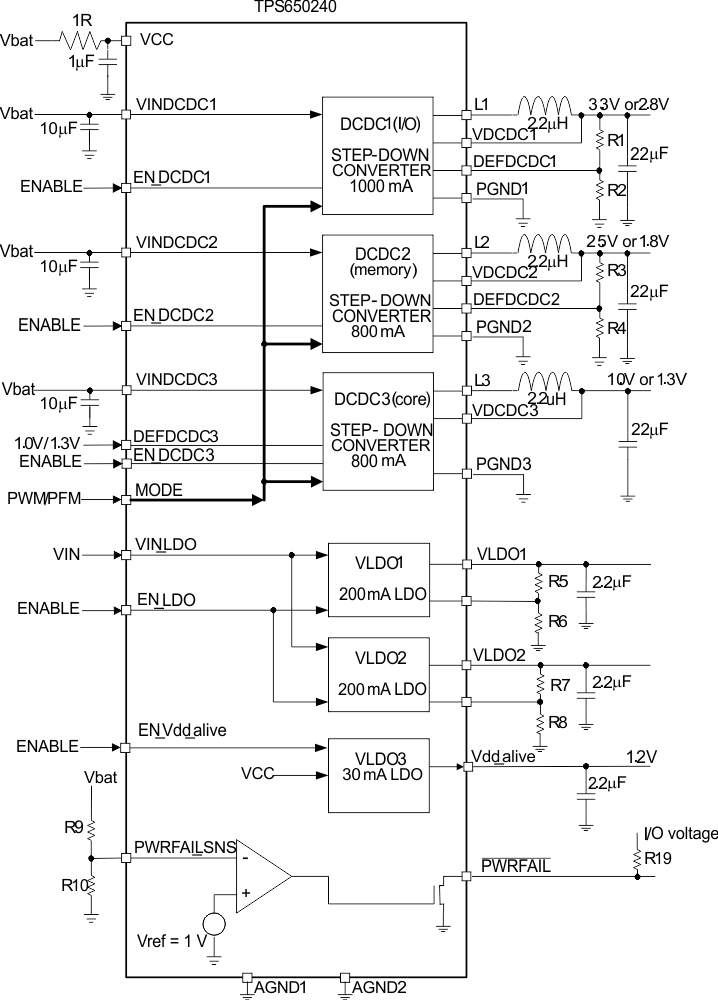

TPS650244RHBT 电路图
