- 封装:6-UFBGA,DSBGA
- RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
- 包装方式:带卷 (TR)
- 参考价格:$1.215
更新日期:2024-04-01 00:04:00
产品简介:采用芯片级封装的 1000mA、6MHz 同步降压转换器
查看详情- 封装:6-UFBGA,DSBGA
- RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
- 包装方式:带卷 (TR)
- 参考价格:$1.215
TPS62660YFFR 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
原厂原装
22+ -
3288
-
上海市
-
-
-
一级代理原装
-
TI(德州仪器)
-
DSBGA-6
2022+ -
12000
-
上海市
-
-
-
原装可开发票
-
TI
-
TSSOP
23+ -
46000
-
合肥
-
-
-
科大讯飞战略投资企业,提供一站式配套服务
TPS62660YFFR 中文资料属性参数
- 标准包装:3,000
- 类别:集成电路 (IC)
- 家庭:PMIC - 稳压器 - DC DC 开关稳压器
- 系列:-
- 类型:降压(降压)
- 输出类型:固定
- 输出数:1
- 输出电压:1.8V
- 输入电压:2.3 V ~ 5.5 V
- PWM 型:电压模式
- 频率 - 开关:6MHz
- 电流 - 输出:1A
- 同步整流器:是
- 工作温度:-40°C ~ 85°C
- 安装类型:表面贴装
- 封装/外壳:6-UFBGA,DSBGA
- 包装:带卷 (TR)

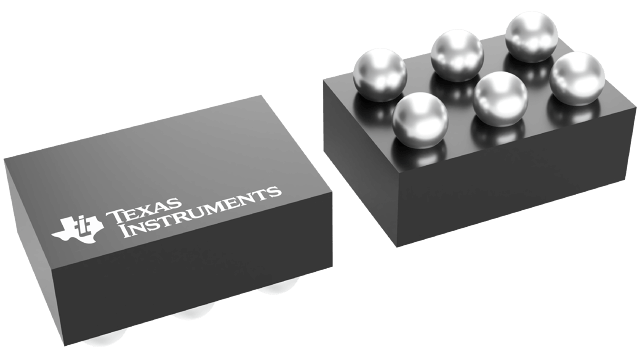

- 供应商设备封装:6-DSBGA (1.30x .93)
产品特性
- 91% Efficiency at 6-MHz Operation
- 31-µA Quiescent Current
- Wide VIN Range from 2.3 V to 5.5 V
- 6-MHz Regulated Frequency Operation
- Best in Class Load and Line Transient
- ±2% Total DC Voltage Accuracy
- Automatic PFM or PWM Mode Switching
- Low Ripple Light-Load PFM Mode
- Fast Turnon Time: < 60-µs Start-Up Time
- Integrated Active Power-Down Sequencing (Optional)
- Current Overload and Thermal Shutdown Protection
- Three Surface-Mount External Components Required (One MLCC Inductor, Two Ceramic Capacitors)
- Complete Sub 1-mm Component Profile Solution
- Total Solution Size <12 mm2
- Available in a 6-Pin NanoFree (DSBGA)
- APPLICATIONS Cell Phones and Smart Phones PDAs and Pocket PCs Portable Hard Disk Drives DC-DC Micro Modules
- Cell Phones and Smart Phones
- PDAs and Pocket PCs
- Portable Hard Disk Drives
- DC-DC Micro Modules
产品概述
The TPS6266x device is a high-frequency synchronous step-down DC-DC converter optimized
for battery-powered portable applications. Intended for low-power applications, the TPS6266x
supports up to 1000-mA peak load current, and allows the use of low-cost chip inductor and
capacitors.With a wide input voltage range of 2.3 V to 5.5 V, the device supports applications
powered by Li-Ion batteries with extended voltage range. Different fixed voltage output versions
are available from 1.2 V to 2.3 V.The TPS6266x operates at a regulated 6-MHz switching frequency and enters the power-save
mode operation at light load currents to maintain high efficiency over the entire load current
range.The PFM mode extends the battery life by reducing the quiescent current to 31 µA
(typical) during light load and standby operation. For noise-sensitive applications, the device can
be forced into fixed frequency PWM mode by pulling the MODE pin high. In the shutdown mode, the
current consumption is reduced to less than 1 µA.The TPS6266x is available in an 6-pin chip scale package (DSBGA).

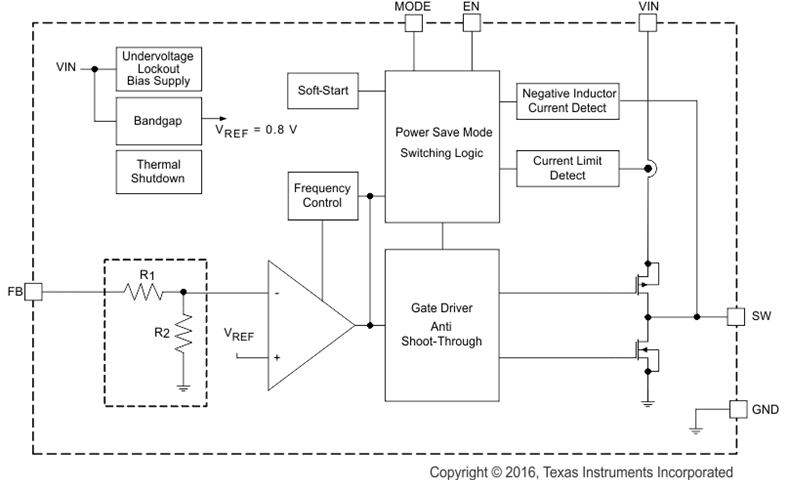

TPS62660YFFR 电路图

TPS62660YFFR 电路图
