产品简介:具有 Eco-Mode™ 的汽车类 3.5V 至 42V、1.5A 降压转换器

查看详情
  • 封装:10-TFSOP,10-MSOP(0.118",3.00mm 宽)裸露焊盘
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:Digi-Reel®
  • 参考价格:$2.736-$5.47

TPS57140QDGQRQ1 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TPS57140QDGQRQ1 中文资料属性参数

  • 标准包装:1
  • 类别:集成电路 (IC)
  • 家庭:PMIC - 稳压器 - DC DC 开关稳压器
  • 系列:SWIFT™, Eco-Mode™
  • 类型:降压(降压)
  • 输出类型:可调式
  • 输出数:1
  • 输出电压:0.8 V ~ 39 V
  • 输入电压:3.5 V ~ 42 V
  • PWM 型:电流模式
  • 频率 - 开关:581kHz
  • 电流 - 输出:1.5A
  • 同步整流器:
  • 工作温度:-40°C ~ 150°C
  • 安装类型:表面贴装
  • 封装/外壳:10-TFSOP,10-MSOP(0.118",3.00mm 宽)裸露焊盘
  • 包装:®
  • 供应商设备封装:10-MSOP-PowerPad
  • 其它名称:296-28157-6

产品特性

  • Qualified for Automotive Applications
  • AEC-Q100 Qualified with the Following Results:Device Temperature Grade 1: –40°C to +125°C Device HBM ESD Classification Level 2 Device CDM ESD Classification Level C4B
  • Device Temperature Grade 1: –40°C to +125°C
  • Device HBM ESD Classification Level 2
  • Device CDM ESD Classification Level C4B
  • 3.5-V to 42-V Input Voltage Range
  • 200-mΩ High-Side MOSFET
  • High Efficiency at Light Loads With Pulse-Skipping Eco-mode Control Scheme
  • 116-μA Operating Quiescent Current
  • 1.5-μA Shutdown Current
  • 100-kHz to 2.5-MHz Switching Frequency
  • Synchronizes to External Clock
  • Adjustable Slow Start and Sequencing
  • Undervoltage and Overvoltage Power-Good Output
  • Adjustable Undervoltage Lockout Voltage and Hysteresis
  • 0.8-V Internal Voltage Reference
  • Supported by SwitcherPro Software Tool (www.ti.com/tool/switcherpro)

产品概述

The TPS57140-Q1 device is a 42-V, 1.5-A step-down regulator with an integrated high-side MOSFET. Current-mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode reduces the no-load, regulated output supply current to 116 μA. When the enable pin is in the low state, the shutdown current is reduced to 1.5 µA.Undervoltage lockout is internally set at 2.5 V, but can be increased using the enable pin. The output voltage startup ramp is controlled by the slow-start pin that can also be configured for sequencing or tracking. An open-drain power-good signal indicates the output is within 92% to 109% of its nominal voltage.A wide switching-frequency range allows optimization of efficiency and external component size. Frequency foldback and thermal shutdown protect the part during an overload condition.The TPS57140-Q1 is available in a 10-pin thermally enhanced MSOP-PowerPAD package (DGQ) and a 10-pin VSON package (DRC).

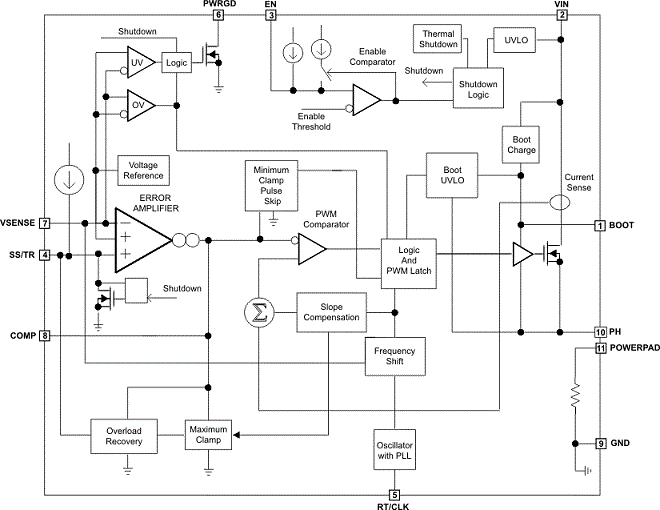

TPS57140QDGQRQ1 电路图
