TPS54231DR

3.5- to 28-V Input Voltage Range
Adjustable Output Voltage Down to 0.8 V
Integrated 80-mΩ High-Side MOSFET Supports up to 2 A Continuous Output Current
High Efficiency at Light Loads with a Pulse Skipping Eco-mode™
Fixed 570-kHz Switching Frequency
Typical 1-µA Shutdown Quiescent Current
Adjustable Slow-Start Limits Inrush Currents
Programmable UVLO Threshold
Overvoltage Transient Protection
Cycle-by-Cycle Current Limit, Frequency Fold Back and Thermal Shutdown Protection
Available in Easy-to-Use SOIC8 Package
Supported by WEBENCH® Software Tool (www.TI.com/WEBENCH)
APPLICATIONS Consumer Applications such as Set-Top Boxes, CPE Equipment, LCD Displays, Peripherals, and Battery Chargers Industrial and Car Audio Power Supplies 5-V, 12-V and 24-V Distributed Power Systems
Consumer Applications such as Set-Top Boxes, CPE Equipment, LCD Displays, Peripherals, and Battery Chargers
Industrial and Car Audio Power Supplies
5-V, 12-V and 24-V Distributed Power Systems

产品概述

The TPS54231 device is a 2-V, 2-A non-synchronous buck converter that integrates a low RDS(on) high-side MOSFET. To increase efficiency at light loads, a pulse skipping Eco-mode™ feature is automatically activated. Furthermore, the 1-µA shutdown supply current allows the device to be used in battery powered applications. Current mode control with internal slope compensation simplifies the external compensation calculations and reduces component count while allowing the use of ceramic output capacitors. A resistor divider programs the hysteresis of the input undervoltage lockout. An overvoltage transient protection circuit limits voltage overshoots during startup and transient conditions. A cycle-by-cycle current limit scheme, frequency fold back and thermal shutdown protect the device and the load in the event of an overload condition. The TPS54231 device is available in an 8-pin SOIC package that has been internally optimized to improve thermal performance.

查看全部

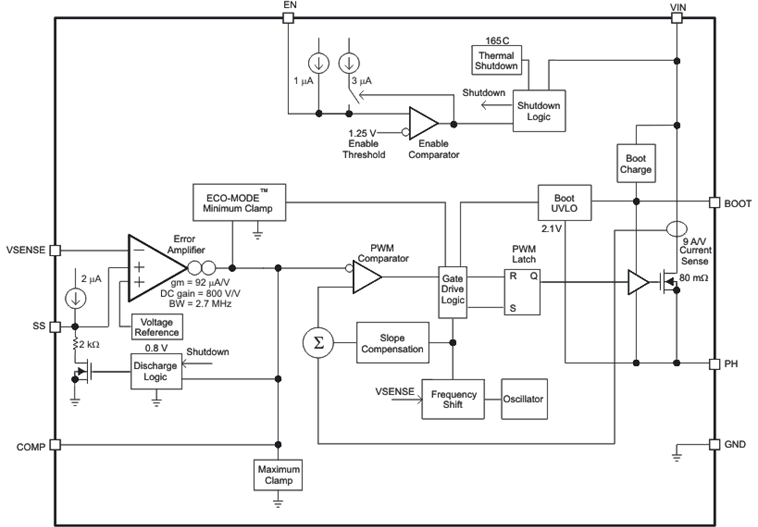

TPS54231DR 电路图
