TPS22934YZVR

Texas Instruments PMIC - 电源分配开关
  • 封装：4-XFBGA，DSBGA
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$0.363-$0.91

更新日期：2024-04-01 00:04:00

TPS22934YZVR

Texas Instruments PMIC - 电源分配开关

产品简介：具有输出放电功能的 3.6V、1A、63mΩ 负载开关

查看详情
  • 封装：4-XFBGA，DSBGA
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$0.363-$0.91

TPS22934YZVR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TPS22934YZVR 中文资料属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：PMIC - 电源分配开关
  • 系列：-
  • 类型：通用
  • 输出数：1
  • Rds（开）：77 毫欧
  • 内部开关：是
  • 电流限制：1A
  • 输入电压：1.5 V ~ 3.6 V
  • 工作温度：-40°C ~ 85°C
  • 安装类型：表面贴装
  • 封装/外壳：4-XFBGA，DSBGA
  • 供应商设备封装：4-DSBGA（0.9x0.9）
  • 包装：®
  • 其它名称：296-27727-6

产品特性

  • Integrated Single Channel Load Switch
  • Input Voltage: 1.5 V to 3.6 V
  • ON-Resistance rDS(ON) = 63 mΩ at VIN = 3.6 V rDS(ON) = 69 mΩ at VIN = 2.5 V rDS(ON) = 78 mΩ at VIN = 1.8 V rDS(ON) = 87 mΩ at VIN = 1.5 V
  • rDS(ON) = 63 mΩ at VIN = 3.6 V
  • rDS(ON) = 69 mΩ at VIN = 2.5 V
  • rDS(ON) = 78 mΩ at VIN = 1.8 V
  • rDS(ON) = 87 mΩ at VIN = 1.5 V
  • 1-A Maximum Continuous Switch Current
  • Integrated Hysteresis Enable Input (ON Pin) Allows Easy Power-Rail Sequencing
  • Controlled Slew Rate Option: 26 µs at 3.6 V
  • Quick Output Discharge Transistor
  • Ultra-Small CSP-4 Package
  • ESD Performance Tested Per JESD 22 3000-V Human-Body Model (A114-B, Class II) 1000-V Charged-Device Model (C101)
  • 3000-V Human-Body Model (A114-B, Class II)
  • 1000-V Charged-Device Model (C101)
  • APPLICATIONS Battery-Powered Equipment Portable Industrial Equipment Portable Medical Equipment Portable Media Players Point-of-Sales Terminals GPS Devices Digital Cameras Portable Instrumentation Smart Phones
  • Battery-Powered Equipment
  • Portable Industrial Equipment
  • Portable Medical Equipment
  • Portable Media Players
  • Point-of-Sales Terminals
  • GPS Devices
  • Digital Cameras
  • Portable Instrumentation
  • Smart Phones

产品概述

The TPS22934 is a small, low ON-resistance (rON) load switch with controlled turnon. The devices contain a P-channel MOSFETs that can operate over an input voltage range of 1.5 V to 3.6 V.The switch is controlled by an ON/OFF input (ON), which has built-in hysteresis (VTH+(typ) = 2.35 V) allowing an easy use of TPS22934 in power-rail sequencing applications.In the TPS22934 a 35-Ω on-chip load resistor is added for output quick discharge when switch is turned off.In the TPS22934, the rise time of the device is internally controlled to avoid inrush current. The TPS22934 features a typical rise time of 26 µs with a 3.6-V input.The the TPS22934 is available in an ultra-small space-saving 4-pin CSP package and is characterized for operation over the free-air temperature range of –40°C to 85°C.
查看全部

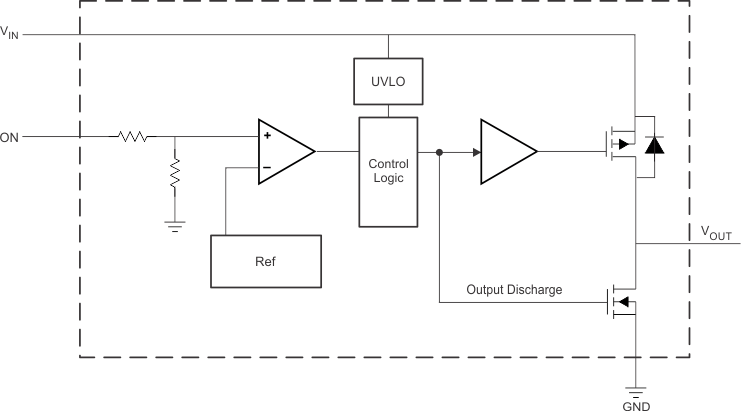

TPS22934YZVR 电路图

TPS22934YZVR 电路图

TPS22934YZVR 电路图
