TMS320F28044PZA

Texas Instruments 嵌入式 - 微控制器，
  • 封装：100-LQFP
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$18.40756

更新日期：2024-04-01 00:04:00

TMS320F28044PZA

Texas Instruments 嵌入式 - 微控制器，

产品简介：具有 100MHz 频率、128KB 闪存、16 个 HRPWM 通道的 C2000? 32 位 MCU

查看详情
  • 封装：100-LQFP
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：托盘
  • 参考价格：$18.40756

TMS320F28044PZA 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TMS320F28044PZA 中文资料属性参数

  • 产品培训模块：ControlSUITEMotor Signal Chain OverviewTPS75005 Single IC Power for C2000 MCU
  • 标准包装：90
  • 类别：集成电路 (IC)
  • 家庭：嵌入式 - 微控制器，
  • 系列：TMS320F2804x, Piccolo™, C2000™
  • 核心处理器：C28x
  • 芯体尺寸：32-位
  • 速度：100MHz
  • 连通性：I²C，SCI，SPI，UART/USART
  • 外围设备：POR，PWM，WDT
  • 输入/输出数：35
  • 程序存储器容量：128KB（64K x 16）
  • 程序存储器类型：闪存
  • EEPROM 大小：-
  • RAM 容量：10K x 16
  • 电压 - 电源 (Vcc/Vdd)：1.71 V ~ 1.89 V
  • 数据转换器：A/D 16x12b
  • 振荡器型：内部
  • 工作温度：-40°C ~ 85°C
  • 封装/外壳：100-LQFP
  • 包装：托盘
  • 配用：296-31059-ND - TMDSCNCD28044296-23541-ND - DAUGHTER CARD TMS320F2808296-23045-ND - EZDSP STARTR KIT FOR TMS320F8044
  • 其它名称：296-21877

产品特性

  • High-performance 100-MHz (10-ns cycle time) processor
  • TMS320C28x 32-bit CPU Single-cycle 16 × 16 and 32 × 32 multiply-accumulate (MAC) operations Dual 16 × 16 MAC Fast interrupt response Unified memory programming model
  • Single-cycle 16 × 16 and 32 × 32 multiply-accumulate (MAC) operations
  • Dual 16 × 16 MAC
  • Fast interrupt response
  • Unified memory programming model
  • On-chip memory 64K × 16 flash 10K × 16 SARAM 1K × 16 OTP 4K × 16 Boot ROM Code Security Module protects against unauthorized memory access
  • 64K × 16 flash
  • 10K × 16 SARAM
  • 1K × 16 OTP
  • 4K × 16 Boot ROM
  • Code Security Module protects against unauthorized memory access
  • Clocking On-chip oscillator Clock-Fail-Detect mode
  • On-chip oscillator
  • Clock-Fail-Detect mode
  • Interrupts Support for up to three external core interrupts Peripheral Interrupt Expansion (PIE) block that supports all peripheral interrupts
  • Support for up to three external core interrupts
  • Peripheral Interrupt Expansion (PIE) block that supports all peripheral interrupts
  • High-speed, 12-bit ADC 80-ns (12.5-MSPS) conversion rate 16 channels Two sample-and-hold Single/simultaneous conversions Internal or external reference
  • 80-ns (12.5-MSPS) conversion rate
  • 16 channels
  • Two sample-and-hold
  • Single/simultaneous conversions
  • Internal or external reference
  • High-resolution PWM 16 outputs with 150-ps resolution 14.8 bits at 200-kHz switching 13.4 bits at 500-kHz switching 12.4 bits at 1-MHz switching
  • 16 outputs with 150-ps resolution
  • 14.8 bits at 200-kHz switching
  • 13.4 bits at 500-kHz switching
  • 12.4 bits at 1-MHz switching
  • Endianness: Little endian
  • Communications port peripherals Serial Peripheral Interface (SPI) module Serial Communications Interface (SCI) Inter-Integrated Circuit (I2C) bus
  • Serial Peripheral Interface (SPI) module
  • Serial Communications Interface (SCI)
  • Inter-Integrated Circuit (I2C) bus
  • Timers Three 32-bit CPU timers Up to 16 16-bit timers Watchdog Timer module
  • Three 32-bit CPU timers
  • Up to 16 16-bit timers
  • Watchdog Timer module
  • Up to 35 General-Purpose Input/Output (GPIO) pins with input filtering
  • On-chip JTAG emulation with real-time debug via hardware
  • JTAG boundary scan support IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
  • IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
  • Low-power IDLE, STANDBY, and HALT modes
  • Development tools Code Composer Studio™ IDE with flash programming plug-in C28x-optimized ANSI C/C++ compiler/assembler/linker SYS/BIOS real-time operating system USB-based JTAG debug probes IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
  • Code Composer Studio™ IDE with flash programming plug-in
  • C28x-optimized ANSI C/C++ compiler/assembler/linker
  • SYS/BIOS real-time operating system
  • USB-based JTAG debug probes IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
  • IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
  • Available Software C2000™ Digital Power Supply Software Library C28x IQ Math Library C28x header files with example programs for all peripherals C28x DSP Library C28x Digital Motor Control Software Library
  • C2000™ Digital Power Supply Software Library
  • C28x IQ Math Library
  • C28x header files with example programs for all peripherals
  • C28x DSP Library
  • C28x Digital Motor Control Software Library
  • Package options 100-pin Low-Profile Quad Flatpack (PZ) 100-pin MicroStar BGA™ (GGM, ZGM) RoHS-compliant, Green packaging
  • 100-pin Low-Profile Quad Flatpack (PZ)
  • 100-pin MicroStar BGA™ (GGM, ZGM)
  • RoHS-compliant, Green packaging
  • Temperature range: A: –40°C to 85°C (PZ, GGM, ZGM)

产品概述

The TMS320F28044 device, member of the TMS320C28x DSP generation, is a highly integrated, high-performance solution for demanding control applications. Throughout this document, TMS320F28044 is abbreviated as F28044.
查看全部

TMS320F28044PZA 数据手册

数据手册 说明 数量 操作
TMS320F28044PZA

Digital Signal Controller 100-LQFP -40 to 85

107页,922K 查看
TMS320F28044PZA

C28x C2000? C28x Piccolo? Microcontroller IC 32-Bit 100MHz 128KB (64K x 16) FLASH 100-LQFP (14x14)

 117页,898K 查看

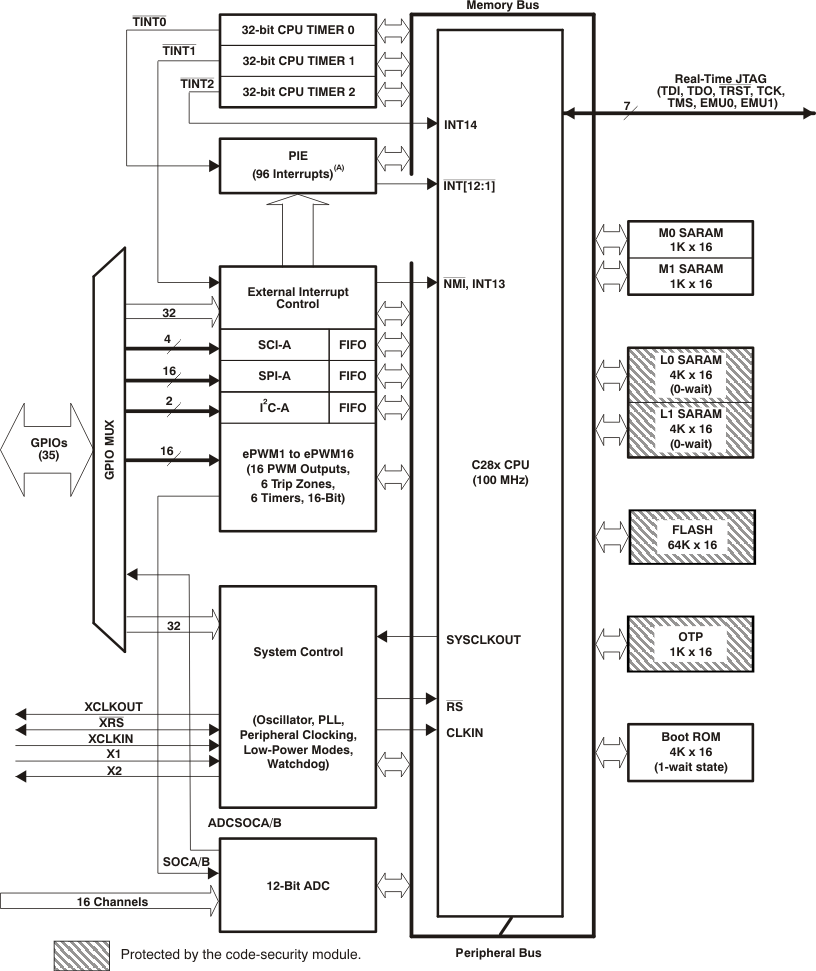

TMS320F28044PZA 电路图
