TMS320C6674ACYPA

Texas Instruments Embedded Controllers & Processors
  • 参考价格：￥1,402.01

更新日期：2024-04-01 00:04:00

TMS320C6674ACYPA

Texas Instruments Embedded Controllers & Processors

产品简介：高性能四核 C66x 定点和浮点 DSP- 高达 1.25GHz

查看详情
  • 参考价格：￥1,402.01

TMS320C6674ACYPA 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TMS320C6674ACYPA 中文资料属性参数

  • 制造商：Texas Instruments
  • 产品种类：数字信号处理器与控制器 (DSP, DSC)
  • 核心：C66x
  • 数据总线宽度：64 bit
  • 程序存储器大小：128 KB
  • 数据 RAM 大小：2 KB
  • 最大时钟频率：1.25 GHz
  • 可编程输入/输出端数量：16
  • 定时器数量：12
  • 工作电源电压：- 0.3 V to + 1.3 V
  • 最大工作温度：+ 85 C
  • 封装 / 箱体：FCBGA-841
  • 安装风格：SMD/SMT
  • 工厂包装数量：44

产品特性

  • Four TMS320C66x DSP Core Subsystems at 1.00 GHz and 1.25GHz 160 GMAC/80 GFLOP @ 1.25GHz 32KB L1P, 32KB L1D, 512KB L2 Per Core 4MB Shared L2
  • 160 GMAC/80 GFLOP @ 1.25GHz
  • 32KB L1P, 32KB L1D, 512KB L2 Per Core
  • 4MB Shared L2
  • Multicore Navigator and TeraNet Switch Fabric - 2 Tb
  • Network Coprocessors- Packet Accelerator, Security Accelerator
  • Four Lanes of SRIO 2.1 - 5 Gbaud Per Lane Full Duplex
  • Two Lanes PCIe Gen2 - 5 Gbaud Per Lane Full Duplex
  • HyperLink - 50Gbaud Operation, Full Duplex
  • Ethernet MAC Subsystem - Two SGMII Ports w/ 10/100/1000 Mbps operation
  • 64-Bit DDR3 Interface (DDR3-1600) - 8 GByte Addressable Memory Space
  • 16-Bit EMIF - Async SRAM, NAND and NOR Flash Support
  • Two Telecom Serial Ports (TSIP) - 2/4/8 Lanes at 32.768/16.384/8.192
  • UART Interface
  • I2C Interface
  • 16 GPIO Pins
  • SPI Interface
  • Sixteen 64-Bit Timers
  • Three On-Chip PLLs

产品概述

The TMS320C6674 Multicore Fixed and Floating Point Digital Signal Processor is based on TI's KeyStone multicore architecture. Integrated with four C66x CorePac DSPs, each core runs at 1.0 to 1.25 GHz enabling up to 5 GHz. The device supports high-performance signal processing applications such as mission critical, medical imaging, test, and automation. The C6674 platform is power efficient and easy to use. The C66x CorePac DSP is fully backward compatible with all existing C6000 family of fixed and floating point DSPs.
查看全部

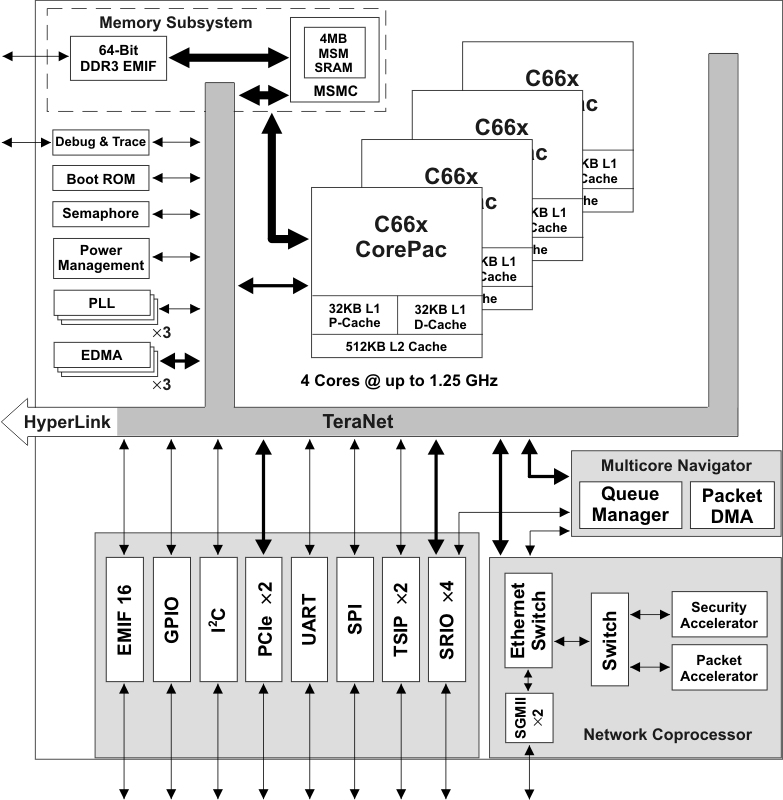

TMS320C6674ACYPA 电路图

TMS320C6674ACYPA 电路图

TMS320C6674ACYPA 电路图
