TLV320DAC3100IRHBR

Texas Instruments 数据采集 - ADCs/DAC - 专用型
  • 封装：32-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$2.088-$4.18

更新日期：2024-04-01 00:04:00

TLV320DAC3100IRHBR

Texas Instruments 数据采集 - ADCs/DAC - 专用型

产品简介：具有 2.5W 单声道 D 级扬声器放大器、60mW 耳机驱动器和音频处理功能的立体声音频 DAC

查看详情
  • 封装：32-VFQFN 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$2.088-$4.18

TLV320DAC3100IRHBR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TLV320DAC3100IRHBR 中文资料属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：数据采集 - ADCs/DAC - 专用型
  • 系列：-
  • 类型：DAC
  • 分辨率（位）：24 b
  • 采样率（每秒）：192k
  • 数据接口：I²C，串行
  • 电压电源：模拟和数字
  • 电源电压：1.8V, 3.3V
  • 工作温度：-40°C ~ 85°C
  • 安装类型：表面贴装
  • 封装/外壳：32-VFQFN 裸露焊盘
  • 供应商设备封装：32-QFN 裸露焊盘（5x5）
  • 包装：®
  • 其它名称：296-27216-6

产品特性

  • Stereo Audio DAC with 95-dB SNR
  • Supports 8-kHz to 192-kHz Sample Rates
  • Mono Class-D BTL Speaker Driver (2.5 W Into 4-Ω or 1.6 W Into 8-Ω)
  • Two Single-Ended Inputs With Mixing and Output Level Control
  • Stereo Headphone/Lineout and Mono Class-D Speaker Outputs Available
  • Microphone Bias
  • Headphone Detection
  • 25 Built-in Digital Audio Processing Blocks (PRB_P1 – PRB_P25) Providing Biquad and FIR Filters, DRC, and 3-D Structures
  • Digital Mixing Capability
  • Pin Control or Register Control for Digital-Playback Volume-Control Settings
  • Digital Sine-Wave Generator for Beeps and Key Clicks (PRB_P25)
  • Programmable PLL for Flexible Clock Generation
  • I2S, Left-Justified, Right-Justified, DSP, and TDM Audio Interfaces
  • I2C Control With Register Auto-Increment
  • Full Power-Down Control
  • Power Supplies: Analog: 2.7 V–3.6 V Digital Core: 1.65 V–1.95 V Digital I/O: 1.1 V–3.6 V Class-D: 2.7 V–5.5 V (SPKVDD ≥ AVDD)
  • Analog: 2.7 V–3.6 V
  • Digital Core: 1.65 V–1.95 V
  • Digital I/O: 1.1 V–3.6 V
  • Class-D: 2.7 V–5.5 V (SPKVDD ≥ AVDD)
  • 5-mm × 5-mm 32-VQFN Package

产品概述

The TLV320DAC3100 device is a low-power, highly integrated, high-performance stereo audio DAC with 24-bit stereo playback and digital audio processing blocks.The device integrates headphone drivers and speaker drivers. The mono speaker driver can drive loads down to 4 Ω. The TLV320DAC3100 device has a suite of built-in processing blocks for digital audio processing. The digital audio data format is programmable to work with popular audio standard protocols (I2S, left/right-justified) in master, slave, DSP, and TDM modes. Bass boost, treble, or EQ can be supported by the programmable digital signal-processing block. An on-chip PLL provides the high-speed clock needed by the digital signal-processing block. The volume level can be controlled either by pin control or by register control. The audio functions are controlled using the I2C serial bus.The TLV320DAC3100 device has a programmable digital sine-wave generator and is available in a 32-pin VQFN package.
查看全部

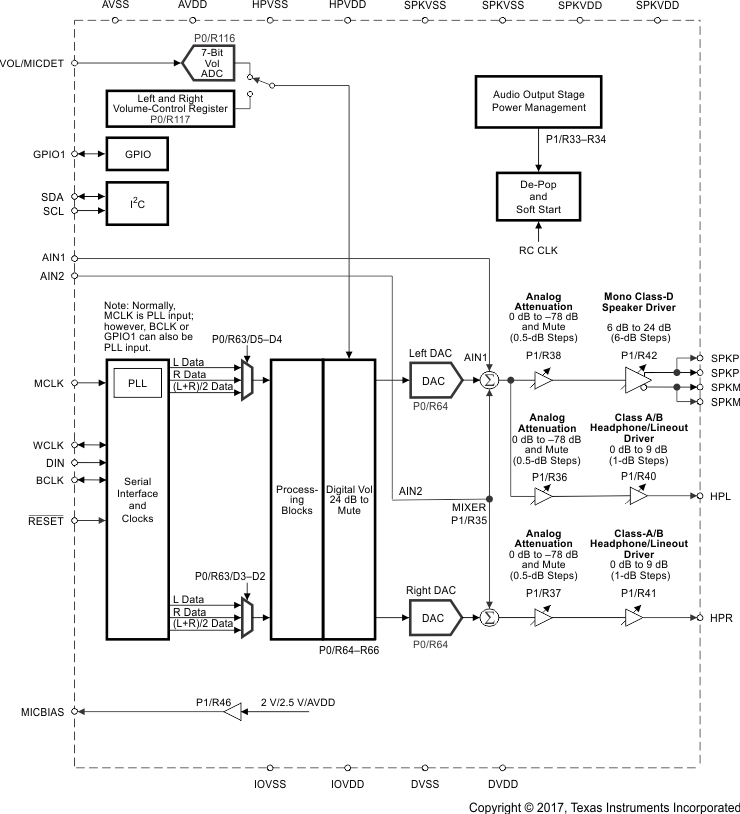

TLV320DAC3100IRHBR 电路图

TLV320DAC3100IRHBR 电路图

TLV320DAC3100IRHBR 电路图
