  • 封装:20-TSSOP(0.173",4.40mm 宽)
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:带卷 (TR)
  • 参考价格:$3.994

更新日期:2024-04-01 00:04:00

产品简介:具有内部参考的 12 位 200KSPS 11 通道低功耗串行 ADC

查看详情
  • 封装:20-TSSOP(0.173",4.40mm 宽)
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:带卷 (TR)
  • 参考价格:$3.994

TLV2556IPWRG4 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TLV2556IPWRG4 中文资料属性参数

  • 产品培训模块:Data Converter Basics
  • 标准包装:2,000
  • 类别:集成电路 (IC)
  • 家庭:数据采集 - 模数转换器
  • 系列:-
  • 位数:12
  • 采样率(每秒):150k,200k
  • 数据接口:串行,SPI?
  • 转换器数目:1
  • 功率耗散(最大):2.43mW
  • 电压电源:单电源
  • 工作温度:-40°C ~ 85°C
  • 安装类型:表面贴装
  • 封装/外壳:20-TSSOP(0.173",4.40mm 宽)
  • 供应商设备封装:20-TSSOP
  • 包装:带卷 (TR)
  • 输入数目和类型:11 个单端,单极
  • 配用:296-20581-ND - EVAL MOD FOR TLV2556

产品特性

  • 12-Bit Resolution Analog-to-Digital Converter (ADC)
  • Up to 200-kSPS (150-kSPS for 3 V) Throughput Over Operating Temperature Range With 12-Bit Output Mode
  • 11 Analog Input Channels
  • Three Built-In Self-Test Modes
  • Inherent Sample and Hold Function
  • Programmable Reference Source (2.048 / 4.096 V Internal or External)
  • Inherent Sample and Hold Function
  • Linearity Error of ±1 LSB (Maximum)
  • On-Chip Conversion Clock
  • Programmable Conversion Status Output: INT or EOC
  • Unipolar or Bipolar Output Operation
  • Programmable Most Significant Bit (MSB) or Least Significant Bit (LSB) First
  • Programmable Power Down
  • Programmable Output Data Length
  • SPI-Compatible Serial Interface With I/O Clock Frequencies Up to 15 MHz (CPOL = 0, CPHA = 0)

产品概述

The TLV2556 device is a 12-bit switched-capacitor successive-approximation analog-to-digital converter (ADC). The ADC has three control inputs: chip select (CS), the input-output clock, and the address and control input (DATAIN). These inputs communicate with the serial port of a host processor or peripheral through a serial 3-state output.In addition to the high-speed converter and versatile control capability, the device has an on-chip 14-channel multiplexer that can select any one of 11 inputs or any one of three internal self-test voltages using configuration register 1. The sample-and-hold function is automatic. At the end of conversion, when programmed as EOC, the pin 19 output goes high to indicate that conversion is complete. If pin 19 is programmed as INT, the signal goes low when the conversion is complete. The converter incorporated in the device features differential, high-impedance reference inputs that facilitate ratiometric conversion, scaling, and isolation of analog circuitry from logic and supply noise. A switched-capacitor design allows low error conversion over the full operating temperature range. An internal reference is available and its voltage level is programmable through configuration register 2 (CFGR2).The TLV2556 is characterized for operation from TA = –40°C to +85°C.

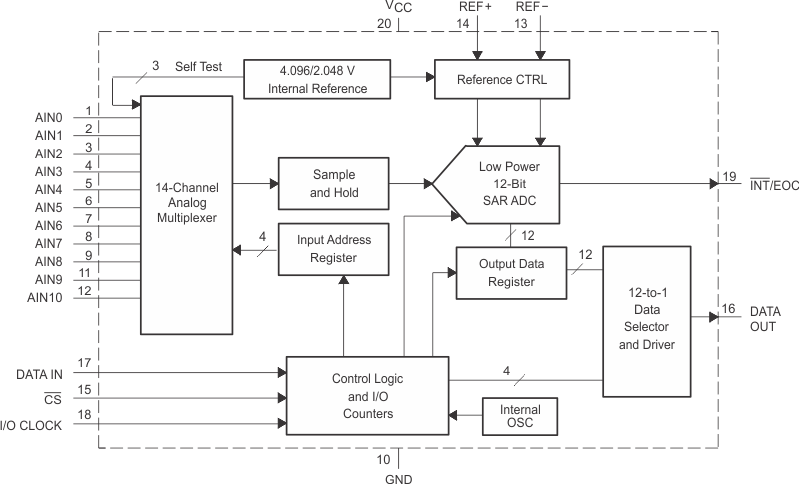

TLV2556IPWRG4 电路图

TLV2556IPWRG4 电路图

TLV2556IPWRG4 电路图
