更新日期:2024-04-01 00:04:00
产品简介:具有断电功能的汽车类 12 位 200KSPS 11 通道低功耗串行 ADC
查看详情TLV2553IPWRQ1 供应商
- 公司
- 型号
- 品牌
- 封装/批号
- 数量
- 地区
- 日期
- 说明
- 询价
-
TI
-
原厂原装
22+ -
3288
-
上海市
-
-
-
一级代理原装
-
TI
-
SOP
21+ -
5000
-
上海市
-
-
-
原装现货,品质为先!请来电垂询!
TLV2553IPWRQ1 中文资料属性参数
- 现有数量:2,200现货10,000Factory
- 价格:1 : ¥89.60000剪切带(CT)2,000 : ¥56.47611卷带(TR)
- 系列:Automotive, AEC-Q100
- 包装:卷带(TR)剪切带(CT)? 得捷定制卷带
- 产品状态:在售
- 位数:12
- 采样率(每秒):200k
- 输入数:11
- 输入类型:单端
- 数据接口:SPI
- 配置:MUX-S/H-ADC
- 比率 - S/H:ADC:1:1
- A/D 转换器数:1
- 架构:SAR
- 参考类型:外部
- 电压 - 供电,模拟:2.7V ~ 5.5V
- 电压 - 供电,数字:2.7V ~ 5.5V
- 特性:-
- 工作温度:-40°C ~ 85°C
- 封装/外壳:20-TSSOP(0.173",4.40mm 宽)
- 供应商器件封装:20-TSSOP
- 安装类型:表面贴装型
产品特性
- Qualified for Automotive Applications
- 12-Bit-Resolution Analog-to-Digital Converter (ADC)
- Up to 200-KSPS (150-KSPS for 3 V) Throughput Over Operating Temperature Range With 12-Bit Output Mode
- 11 Analog Input Channels
- Three Built-In Self-Test Modes
- Inherent Sample and Hold Function
- Linearity Error of +1 LSB (Max)
- On-Chip Conversion Clock
- Unipolar or Bipolar Output Operation
- Programmable Most Significant Bit (MSB) or Least Significant Bit (LSB) First
- Programmable Power Down
- Programmable Output Data Length
- SPI Compatible Serial Interface With I/O Clock Frequencies up to 15 MHz (CPOL = 0, CPHA = 0)
产品概述
The TLV2553-Q1 is a 12-bit switched-capacitor successive-approximation analog-to-digital
converter (ADC). The ADC has three control inputs [chip select (CS), the
input-output clock, and the address/control input (DATAIN)] designed for communication with the
serial port of a host processor or peripheral through a serial 3-state output.In addition to the high-speed converter and versatile control capability, the device has
an on-chip 14-channel multiplexer that can select any one of 11 inputs or any one of three internal
self-test voltages using configuration register 1. The sample-and-hold function is automatic. At
the end of conversion, when programmed as EOC, the pin 19 output goes high to indicate that
conversion is complete. The converter incorporated in the device features differential
high-impedance reference inputs that facilitate ratiometric conversion, scaling, and isolation of
analog circuitry from logic and supply noise. A switched-capacitor design allows low-error
conversion over the full operating temperature range.The TLV2553-Q1 is characterized for operation from TA = 40°C to
85°C.
TLV2553IPWRQ1 数据手册
数据手册 | 说明 | 数量 | 操作 |
---|---|---|---|
![]() |
12 Bit Analog to Digital Converter 11 Input 1 SAR 20-TSSOP |
38页,1.48M | 查看 |

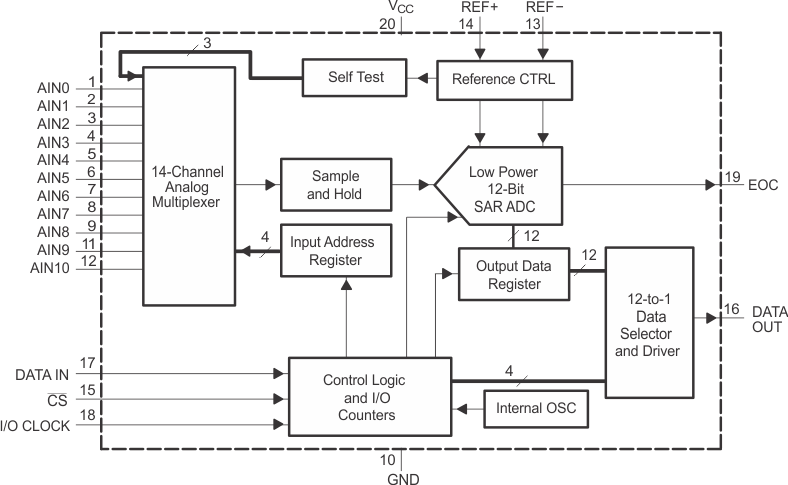

TLV2553IPWRQ1 电路图

TLV2553IPWRQ1 电路图
