THS7327PHPR

Texas Instruments 线性 - 放大器 - 视频放大器和频缓冲器
  • 封装：48-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$5.36-$8.64

更新日期：2024-04-01

THS7327PHPR

Texas Instruments 线性 - 放大器 - 视频放大器和频缓冲器

产品简介：具有 I2C 控制、可选滤波器、监控器直通、2:1 多路复用器的 3 通道 RGBHV 视频缓冲器

查看详情
  • 封装：48-TQFP 裸露焊盘
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：Digi-Reel®
  • 参考价格：$5.36-$8.64

THS7327PHPR 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

THS7327PHPR 中文资料属性参数

  • 标准包装：1
  • 类别：集成电路 (IC)
  • 家庭：线性 - 放大器 - 视频放大器和频缓冲器
  • 系列：-
  • 应用：缓冲器
  • 输出类型：满摆幅
  • 电路数：3
  • -3db带宽：500MHz
  • 转换速率：1150 V/µs
  • 电流 - 电源：118mA
  • 电流 - 输出 / 通道：115mA
  • 电压 - 电源，单路/双路(±)：2.7 V ~ 5.5 V
  • 安装类型：表面贴装
  • 封装/外壳：48-TQFP 裸露焊盘
  • 供应商设备封装：48-HTQFP（7x7）
  • 包装：®
  • 配用：296-31388-ND - EVAL MODULE FOR THS7327
  • 其它名称：296-20775-6

产品特性

  • 3-Video Amplifiers for CVBS, S-Video, SD/ED/HD Y'P'BP'R, G'B'R', and R'G'B' Video
  • HV Sync Paths With Adj. Schmitt Trigger
  • 2:1 Input MUX
  • I2C™ Control of All Functions
  • Integrated Low-Pass Filters on ADC Buffers 5th Order Butterworth Characteristics Selectable Corner Frequencies of 9-MHz, 16-MHz, 35-MHz, and 75-MHz with Bypass (500-MHz)
  • 5th Order Butterworth Characteristics
  • Selectable Corner Frequencies of 9-MHz, 16-MHz, 35-MHz, and 75-MHz with Bypass (500-MHz)
  • Selectable Input Bias Modes: AC-Coupled with Sync-Tip Clamp AC-Coupled with Bias DC-Coupled with Offset Shift DC-Coupled
  • AC-Coupled with Sync-Tip Clamp
  • AC-Coupled with Bias
  • DC-Coupled with Offset Shift
  • DC-Coupled
  • Monitor Pass-Thru Function: Passes the Input Signal With no Filtering 500-MHz BW and 1300 V/µs Slew Rate 6-dB Gain With SAG Correction Capable High Output Impedance in Disable State
  • Passes the Input Signal With no Filtering
  • 500-MHz BW and 1300 V/µs Slew Rate
  • 6-dB Gain With SAG Correction Capable
  • High Output Impedance in Disable State
  • 2.7-V to 5-V Single Supply Operation
  • Low 330 mW at 3.3-V Power Consumption
  • Disable Function Reduces Current to < 1 µA
  • Rail-to-Rail Output: Output Swings Within 0.1 V From the Rails Which Allows AC or DC Output Coupling
  • Output Swings Within 0.1 V From the Rails Which Allows AC or DC Output Coupling
  • RoHS TQFP Package

产品概述

Fabricated using the new complementary silicon-germanium (SiGe) BiCom-III process, the THS7327 is a low-power, single-supply 2.7-V to 5-V, 3-channel integrated video buffer with H and V Sync signal paths. It incorporates a selectable 5th order Butterworth anti-aliasing filter on each channel. The 9-MHz is a perfect choice for SDTV video including composite, S-Video™, and 480i/576i. The 16-MHz filter is ideal for EDTV 480p/576p and VGA signals. The 35-MHz filter is useful for HDTV 720p/1080i and SVGA signals. The 75-MHz filter is ideal for HDTV 1080p and XGA/SXGA signals. For UXGA/QXGA R’G’B’ signals, the filter can be bypassed allowing a 500-MHz bandwidth, 1150-V/µs amplifier to buffer the signal.
查看全部

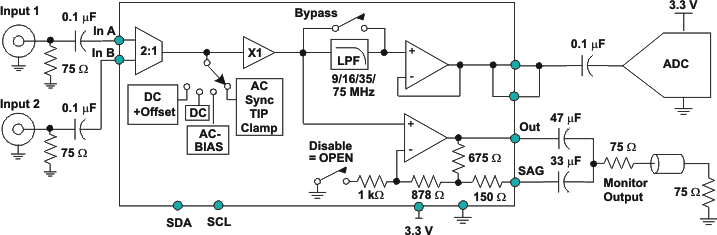

THS7327PHPR 电路图

THS7327PHPR 电路图

THS7327PHPR 电路图
