  • 封装:16-VFQFN 裸露焊盘
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:Digi-Reel®
  • 参考价格:$10.904-$9.9172

更新日期:2024-04-01

产品简介:1.6GHz、最小增益 1V/V、低噪声、低失真、全差分放大器

查看详情
  • 封装:16-VFQFN 裸露焊盘
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:Digi-Reel®
  • 参考价格:$10.904-$9.9172

THS4513RGTT 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

THS4513RGTT 中文资料属性参数

  • 标准包装:1
  • 类别:集成电路 (IC)
  • 家庭:Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
  • 系列:-
  • 放大器类型:差分
  • 电路数:1
  • 输出类型:差分
  • 转换速率:5100 V/µs
  • 增益带宽积:2.8GHz
  • -3db带宽:1.6GHz
  • 电流 - 输入偏压:8µA
  • 电压 - 输入偏移:1000µV
  • 电流 - 电源:37.7mA
  • 电流 - 输出 / 通道:96mA
  • 电压 - 电源,单路/双路(±):3 V ~ 5.5 V,±1.5 V ~ 2.75 V
  • 工作温度:-40°C ~ 85°C
  • 安装类型:表面贴装
  • 封装/外壳:16-VFQFN 裸露焊盘
  • 供应商设备封装:16-QFN-EP(3x3)
  • 包装:®
  • 配用:296-31387-ND - EVAL MODULE FOR THS4520296-21087-ND - EVALUATION MODULE FOR THS4513296-21086-ND - EVALUATION MODULE FOR THS4511296-21085-ND - EVALUATION MODULE FOR THS4508
  • 其它名称:296-18594-6

产品特性

  • Fully-Differential Architecture
  • Centered Input Common-Mode Range
  • Minimum Gain of 1 V/V (0 dB)
  • Bandwidth: 1600 MHz
  • Slew Rate: 5100 V/µs
  • 1% Settling Time: 2.9 ns
  • HD2: –75 dBc at 70 MHz
  • HD3: –86 dBc at 70 MHz
  • OIP2: 77 dBm at 70 MHz
  • OIP3: 42 dBm at 70 MHz
  • Input Voltage Noise: 2.2 nV/√Hz (f > 10 MHz)
  • Noise Figure: 19.8 dB
  • Output Common-Mode Control
  • Power Supply: Voltage: 3 V (±1.5 V) to 5 V (±2.5 V) Current: 37.7 mA
  • Voltage: 3 V (±1.5 V) to 5 V (±2.5 V)
  • Current: 37.7 mA
  • Power-Down Capability: 0.65 mA
  • APPLICATIONS 5-V Data Acquisition Systems, High Linearity ADC Amplifier Wireless Communication Medical Imaging Test and Measurement
  • 5-V Data Acquisition Systems, High Linearity ADC Amplifier
  • Wireless Communication
  • Medical Imaging
  • Test and Measurement

产品概述

The THS4513 is a wideband, fully-differential op amp designed for 3.3-V to 5-V data acquisition systems. It has very low noise at 2.2 nV/√Hz, and extremely low harmonic distortion of –75 dBc HD2 and –86 dBc HD3 at 70 MHz with 2-VPP output, G = 0 dB, and 200- load. Slew rate is very high at 5100 V/μs and with settling time of 2.9 ns to 1% (2-V step), it is ideal for pulsed applications. It is designed for a minimum gain of 0 dB.To allow for dc-coupling to analog-to-digital converters (ADCs), its unique output common-mode control circuit maintains the output common-mode voltage within 5-mV offset (typ) from the set voltage, when set within 0.5 V of midsupply, with less than 4-mV differential offset voltage. The common-mode set point is set to midsupply by internal circuitry, which may be overdriven from an external source. The input and output are optimized for best performance with their common-mode voltages set to midsupply. Along with high performance at low power-supply voltage, this design makes it ideal for extremely high-performance, single-supply 5-V data acquisition systems. The THS4513 is offered in a quad, leadless QFN-16 package (RGT), and is characterized for operation over the full industrial temperature range from –40°C to +85°C.

THS4513RGTT 数据手册

数据手册 说明 数量 操作
THS4513RGTT

WIDEBAND, LOW NOISE, LOW DISTORTION FULLY DIFFERENTIAL AMPLIFIER

34 Pages页,3.45M 查看
THS4513RGTT

Differential Amplifier 1 Circuit Differential 16-QFN (3x3)

41页,1.92M 查看

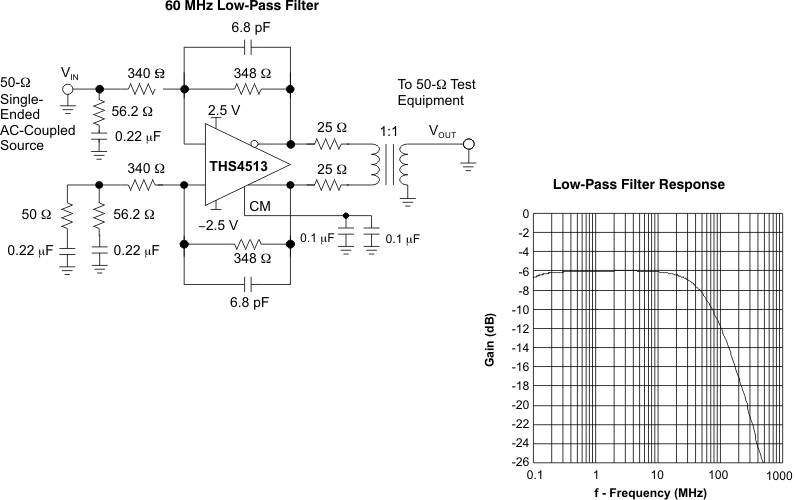

THS4513RGTT 电路图

THS4513RGTT 电路图

THS4513RGTT 电路图
