产品简介:1.9GHz、宽带、低噪声、低失真、全差分放大器

查看详情
  • 封装:16-VFQFN 裸露焊盘
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:带卷 (TR)
  • 参考价格:$7.395

THS4509RGTTG4 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

THS4509RGTTG4 中文资料属性参数

  • 标准包装:250
  • 类别:集成电路 (IC)
  • 家庭:Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
  • 系列:-
  • 放大器类型:差分
  • 电路数:1
  • 输出类型:差分
  • 转换速率:6600 V/µs
  • 增益带宽积:3GHz
  • -3db带宽:2GHz
  • 电流 - 输入偏压:8µA
  • 电压 - 输入偏移:1000µV
  • 电流 - 电源:37.7mA
  • 电流 - 输出 / 通道:96mA
  • 电压 - 电源,单路/双路(±):3 V ~ 5.25 V,±1.5 V ~ 2.625 V
  • 工作温度:-40°C ~ 85°C
  • 安装类型:表面贴装
  • 封装/外壳:16-VFQFN 裸露焊盘
  • 供应商设备封装:16-QFN-EP(3x3)
  • 包装:带卷 (TR)
  • 配用:296-31387-ND - EVAL MODULE FOR THS4520296-21087-ND - EVALUATION MODULE FOR THS4513296-21086-ND - EVALUATION MODULE FOR THS4511296-21085-ND - EVALUATION MODULE FOR THS4508296-18855-ND - EVAL MODULE FOR THS4509

产品特性

  • Fully-Differential Architecture
  • Centered Input Common-Mode Range
  • Output Common-Mode Control
  • Minimum Gain of 2 V/V (6 dB)
  • Bandwidth: 1900 MHz
  • Slew Rate: 6600 V/µs
  • 1% Settling Time: 2 ns
  • HD2: –75 dBc at 100 MHz
  • HD3: –80 dBc at 100 MHz
  • OIP3: 37 dBm at 70 MHz
  • Input Voltage Noise: 1.9 nV/√Hz (f > 10 MHz)
  • Power-Supply Voltage: 3 V to 5 V
  • Power-Supply Current: 37.7 mA
  • Power-Down Current: 0.65 mA
  • APPLICATIONS 5-V Data Acquisition Systems High Linearity ADC Amplifiers Wireless Communication Medical Imaging Test and Measurement
  • 5-V Data Acquisition Systems High Linearity ADC Amplifiers
  • Wireless Communication
  • Medical Imaging
  • Test and Measurement

产品概述

The THS4509 device is a wideband, fully-differential op amp designed for 5-V data acquisition systems. It has a low noise at 1.9 nV/√Hz, and low harmonic distortion of –75 dBc HD2 and –80 dBc HD3 at 100 MHz with 2 VPP, G = 10 dB, and 1-kΩ load. Slew rate is high at 6600 V/µs, and with settling time of 2 ns to 1% (2-V step), it is ideal for pulsed applications. It is designed for a minimum gain of 6 dB, but is optimized for gains of 10 dB.To allow for DC coupling to analog-to-digital converters (ADCs), its unique output common-mode control circuit maintains the output common-mode voltage within 3-mV offset (typical) from the set voltage, when set within 0.5-V of midsupply, with less than 4-mV differential offset voltage. The common-mode set point is set to midsupply by internal circuitry, which may be overdriven from an external source.The input and output are optimized for best performance with the common-mode voltages set to midsupply. Along with high performance at low power-supply voltage, this design makes it ideal for high-performance, single-supply 5-V data acquisition systems. The combined performance of the THS4509 in a gain of 10 dB driving the ADS5500 ADC, sampling at 125 MSPS, is 81-dBc SFDR and 69.1-dBc SNR with a –1 dBFS signal at 70 MHz.The THS4509 is offered in a quad, leadless VQFN-16 package (RGT), and is characterized for operation over the full industrial temperature range from –40°C to +85°C.

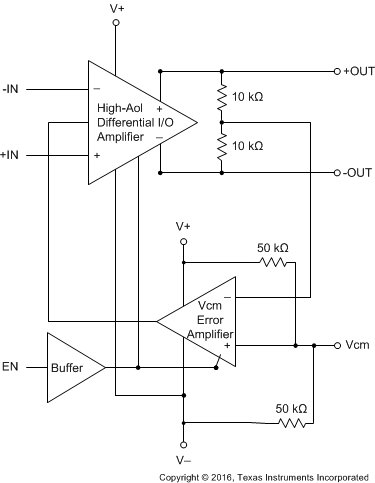

THS4509RGTTG4 电路图
