THS3125ID

Texas Instruments Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
  • 封装：14-SOIC（0.154"，3.90mm 宽）
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：管件
  • 参考价格：$10.35-$9.43

更新日期：2024-04-01

THS3125ID

Texas Instruments Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

产品简介：具有关断功能的双通道高输出电流 120MHz 放大器

查看详情
  • 封装：14-SOIC（0.154"，3.90mm 宽）
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：管件
  • 参考价格：$10.35-$9.43

THS3125ID 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

THS3125ID 中文资料属性参数

  • 标准包装：50
  • 类别：集成电路 (IC)
  • 家庭：Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
  • 系列：-
  • 放大器类型：电流反馈
  • 电路数：2
  • 输出类型：-
  • 转换速率：1550 V/µs
  • 增益带宽积：-
  • -3db带宽：160MHz
  • 电流 - 输入偏压：6µA
  • 电压 - 输入偏移：4400µV
  • 电流 - 电源：8.4mA
  • 电流 - 输出 / 通道：440mA
  • 电压 - 电源，单路/双路(±)：10 V ~ 30 V，±5 V ~ 15 V
  • 工作温度：-40°C ~ 85°C
  • 安装类型：表面贴装
  • 封装/外壳：14-SOIC（0.154"，3.90mm 宽）
  • 供应商设备封装：14-SOIC
  • 包装：管件
  • 配用：296-20544-ND - EVAL MOD FOR THS3112296-20547-ND - EVAL MOD FOR THS3125
  • 其它名称：296-13339-5

产品特性

  • Low Noise: 2.9-pA/√Hz Noninverting Current Noise 10.8-pA/√Hz Inverting Current Noise 2.2-nV/√Hz Voltage Noise 128-MHz , –3-dB BW (RL = 50 Ω, RF= 470 Ω) 1550-V/µs Slew Rate (G = 2, RL= 50 Ω)
  • 2.9-pA/√Hz Noninverting Current Noise
  • 10.8-pA/√Hz Inverting Current Noise
  • 2.2-nV/√Hz Voltage Noise
  • 128-MHz , –3-dB BW (RL = 50 Ω, RF= 470 Ω)
  • 1550-V/µs Slew Rate (G = 2, RL= 50 Ω)
  • High Output Current: 450 mA
  • High Speed: 128-MHz , –3-dB BW (RL = 50 Ω, RF= 470 Ω) 1550-V/µs Slew Rate (G = 2, RL= 50 Ω) 26-VPP Output Voltage, RL= 50 Ω –80 dBc (1 MHz, 2 VPP, G = 2)
  • 128-MHz , –3-dB BW (RL = 50 Ω, RF= 470 Ω)
  • 1550-V/µs Slew Rate (G = 2, RL= 50 Ω)
  • 26-VPP Output Voltage, RL= 50 Ω
  • –80 dBc (1 MHz, 2 VPP, G = 2)
  • Wide Output Swing: 26-VPP Output Voltage, RL= 50 Ω –80 dBc (1 MHz, 2 VPP, G = 2) 370-µA Shutdown Supply Current
  • 26-VPP Output Voltage, RL= 50 Ω
  • –80 dBc (1 MHz, 2 VPP, G = 2)
  • 370-µA Shutdown Supply Current
  • Low Distortion: –80 dBc (1 MHz, 2 VPP, G = 2) 370-µA Shutdown Supply Current
  • –80 dBc (1 MHz, 2 VPP, G = 2)
  • 370-µA Shutdown Supply Current
  • Low-Power Shutdown Mode (THS3125) 370-µA Shutdown Supply Current
  • 370-µA Shutdown Supply Current
  • Standard SOIC, HSOP PowerPAD™, and HTSSOP PowerPAD Packages

产品概述

The THS3122 and THS3125 are low-noise, high-speed current feedback amplifiers, with high output current drive. This makes them ideal for any application that requires low distortion over a wide frequency with heavy loads. The THS3122 and THS3125 can drive four serially-terminated video lines while maintaining a differential gain error less than 0.03%.The high output drive capability of the THS3122 and THS3125 enables the devices to drive 50-Ω loads with low distortion over a wide range of output voltages:The THS3122 and THS3125 operate from ±5-V to ±15-V supply voltages while drawing as little as 7.2 mA of supply current per channel. The THS3125 offers a low-power shutdown mode, reducing the supply current to only 370 µA. The THS3122 and THS3125 are packaged in SOIC, HSOP, and HTSSOP packages.
查看全部

THS3125ID 数据手册

数据手册 说明 数量 操作
THS3125ID

LOW-NOISE, HIGH-SPEED, 450 mA CURRENT FEEDBACK AMPLIFIERS

 20 Pages页,661K 查看
THS3125IDR

LOW-NOISE, HIGH-SPEED, 450 mA CURRENT FEEDBACK AMPLIFIERS

 20 Pages页,661K 查看
THS3125IDRG4

LOW-NOISE, HIGH-SPEED, 450 mA CURRENT FEEDBACK AMPLIFIERS

 20 Pages页,665K 查看

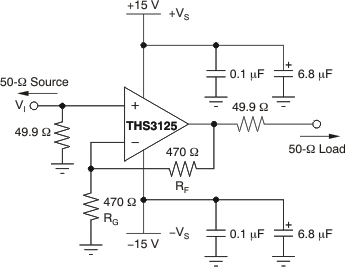

THS3125ID 电路图
