THS1408MPHPEP

Texas Instruments 数据转换 IC
  • 参考价格：￥270.07-￥286.28

更新日期：2024-04-01

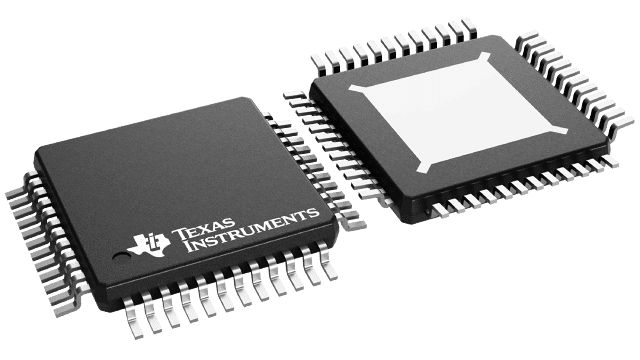

THS1408MPHPEP

Texas Instruments 数据转换 IC

产品简介：增强型产品 14 位 8Msps Adc，单通道，差动输入、Dsp/Up If、可编程增益放大器

查看详情
  • 参考价格：￥270.07-￥286.28

THS1408MPHPEP 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

THS1408MPHPEP 中文资料属性参数

  • 制造商：Texas Instruments
  • 产品种类：ADC（模数转换器）
  • 转换器数量：1
  • ADC 输入端数量：1
  • 结构：Pipelined
  • 转换速率：8000 KSPs
  • 分辨率：14 bit
  • 输入类型：Voltage
  • 接口类型：Parallel
  • 信噪比：72 dB
  • 电压参考：Internal, External
  • Supply Voltage - Max：3.6 V
  • Supply Voltage - Min：3 V
  • 最大功率耗散：360 mW
  • 最大工作温度：+ 125 C
  • 安装风格：SMD/SMT
  • 封装 / 箱体：HTQFP
  • 封装：Tray
  • 最小工作温度：- 55 C
  • 工作电源电压：3.3 V
  • 工厂包装数量：250

产品特性

  • Controlled Baseline One Assembly/Test Site, One Fabrication Site
  • One Assembly/Test Site, One Fabrication Site
  • Extended Temperature Performance up to –55°C to 125°C
  • Enhanced Diminishing Manufacturing Sources (DMS) Support
  • Enhanced Product Change Notification
  • Qualification Pedigree(1)
  • 14-Bit Resolution
  • 3- and 8-MSPS Speed Grade
  • Differential Nonlinearity (DNL) ±0.6 LSB Typ
  • Integral Nonlinearity (INL) ±1.5 LSB Typ
  • Internal Reference
  • Differential Inputs
  • Programmable Gain Amplifier
  • µP-Compatible Parallel Interface
  • Timing Compatible With TMS320C6000 DSP
  • 3.3-V Single Supply
  • Power-Down Mode
  • Monolithic CMOS Design
  • Applications xDSL Front Ends Communication Industrial Control Instrumentation Automotive and Selected Military
  • xDSL Front Ends
  • Communication
  • Industrial Control
  • Instrumentation
  • Automotive and Selected Military

产品概述

The THS1408 is a 14-bit, 3/8-MSPS single-supply analog-to-digital converter (ADC), with an internal reference, differential inputs, programmable input gain, and an on-chip sample and hold amplifier.Implemented with a CMOS process, the device has outstanding price/performance and power/speed ratios. The THS1408 is designed for use with 3.3-V systems, and with a high-speed µP-compatible parallel interface, making it the first choice for solutions based on high-performance DSPs like the TI TMS320C6000 series.
查看全部

THS1408MPHPEP 数据手册

数据手册 说明 数量 操作
THS1408MPHPEP

14 Bit Analog to Digital Converter 1 Input 1 Pipelined 48-HTQFP (7x7)

 27页,487K 查看

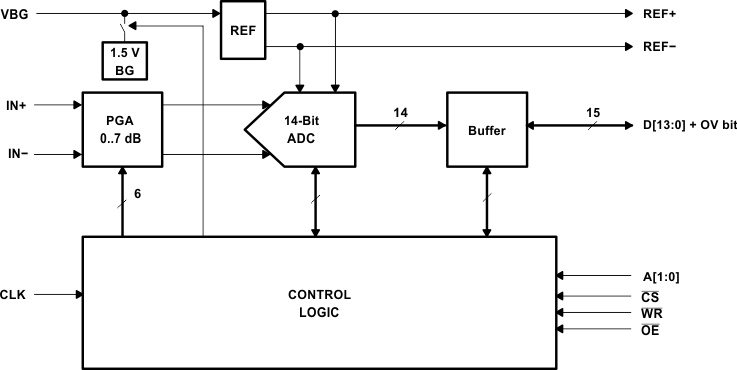

THS1408MPHPEP 电路图

THS1408MPHPEP 电路图

THS1408MPHPEP 电路图
