TCA6507PWRG4

Texas Instruments PMIC - LED 驱动器
  • 封装：14-TSSOP（0.173"，4.40mm 宽）
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：带卷 (TR)
  • 参考价格：$1.013

更新日期：2024-04-01

TCA6507PWRG4

Texas Instruments PMIC - LED 驱动器

产品简介：具有强度控制、关断和配置寄存器的 7 位 1.65V 至 5.5V I2C/SMBus LED 驱动器

查看详情
  • 封装：14-TSSOP（0.173"，4.40mm 宽）
  • RoHS：无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式：带卷 (TR)
  • 参考价格：$1.013

TCA6507PWRG4 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

TCA6507PWRG4 中文资料属性参数

  • 标准包装：2,000
  • 类别：集成电路 (IC)
  • 家庭：PMIC - LED 驱动器
  • 系列：-
  • 恒定电流：-
  • 恒定电压：-
  • 拓扑：开路漏极，PWM
  • 输出数：7
  • 内部驱动器：是
  • 类型 - 主要：通用
  • 类型 - 次要：-
  • 频率：400kHz
  • 电源电压：1.65 V ~ 3.6 V
  • 输出电压：5.5V
  • 安装类型：表面贴装
  • 封装/外壳：14-TSSOP（0.173"，4.40mm 宽）
  • 供应商设备封装：14-TSSOP
  • 包装：带卷 (TR)
  • 工作温度：-40°C ~ 85°C

产品特性

  • Seven LED Driver Outputs: ON, OFF, Blinking, Fading at Programmable Rates
  • Open-Drain Outputs Directly Drive LEDs to 40-mA Maximum
  • Two Independent Banks of LED Drivers
  • Widely Programmable Blink Rates, Fade-ON and Fade-OFF Rates and Maximum Intensity
  • Outputs Not Used as LED Drivers Can Be Used as Regular General-Purpose Open-Drain Outputs
  • 16 Steps of Maximum Intensity Control from Fully-OFF to Fully-ON States
  • Smooth Perceived Transitions for Fade-ON and Fade-OFF
  • Operating Power-Supply Voltage Range of 1.65 V to 3.6 V
  • 5.5-V Tolerant Open-Drain Outputs
  • Low Standby Current With Shutdown Capability for Additional Power Savings
  • Programmed Through I2C Bus Interface Logic Compatible With SMBus
  • No Glitch on Power Up
  • ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
  • 2000-V Human-Body Model (A114-A)
  • 200-V Machine Model (A115-A)
  • 1000-V Charged-Device Model (C101)
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

产品概述

This 7-bit LED dimmer for the two-line bidirectional bus (I2C) is designed to control (or dim) LEDs through the I2C interface. Without this device, the microcontroller must be actively involved in turning on and off the LEDs (per the required dimming rate), which uses valuable processor time. The TCA6507 alleviates this issue by limiting the number of operations required by the processor in blinking LEDs and helps to create a more efficient system. The TCA6507 handles all pulse width modulation (PWM) logic, allowing the processor to use its cycles for more important tasks.
查看全部

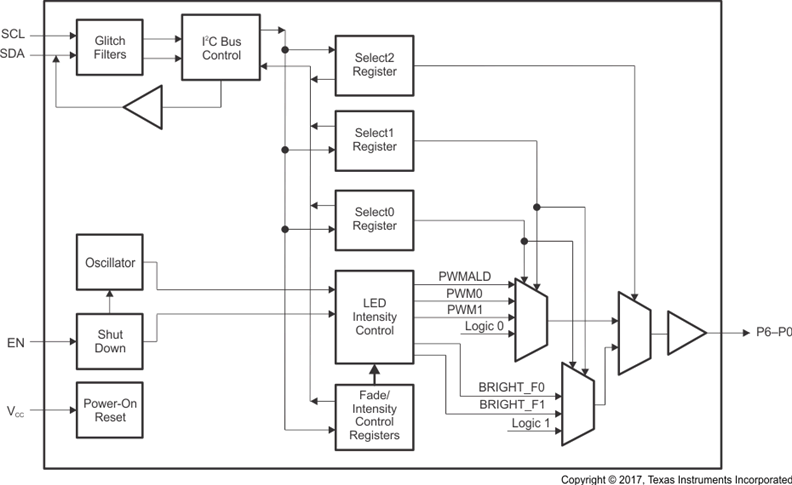

TCA6507PWRG4 电路图
