  • 封装:28-SSOP(0.209",5.30mm 宽)
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:Digi-Reel®
  • 参考价格:$10.324-$9.3896

更新日期:2024-04-01 00:04:00

产品简介:汽车类 192kHz 立体声异步采样速率转换器

查看详情
  • 封装:28-SSOP(0.209",5.30mm 宽)
  • RoHS:无铅 / 符合限制有害物质指令(RoHS)规范要求
  • 包装方式:Digi-Reel®
  • 参考价格:$10.324-$9.3896

SRC4190IDBRQ1 供应商

  • 公司
  • 型号
  • 品牌
  • 封装/批号
  • 数量
  • 地区
  • 日期
  • 说明
  • 询价

SRC4190IDBRQ1 中文资料属性参数

  • 标准包装:1
  • 类别:集成电路 (IC)
  • 家庭:线性 - 音频处理
  • 系列:-
  • 类型:采样率转换器
  • 应用:广播,控制台,接收器
  • 安装类型:表面贴装

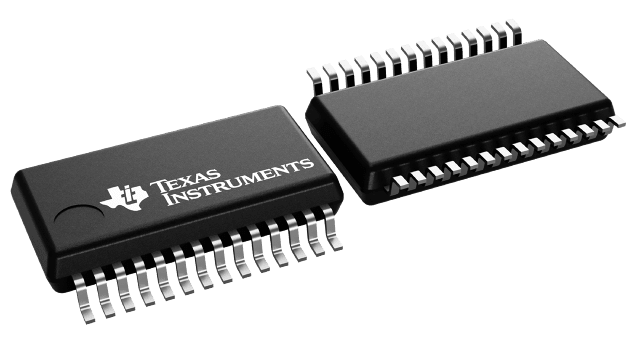

  • 封装/外壳:28-SSOP(0.209",5.30mm 宽)
  • 供应商设备封装:28-SSOP
  • 包装:®
  • 其它名称:296-23954-6

产品特性

  • Qualified for Automotive Applications
  • Automatic Sensing of the Input-To-Output Sampling Ratio
  • Wide Input-to-Output Sampling Range: 16:1 to 1:16
  • Supports Input and Output Sampling Rates up to 212 kHz
  • Dynamic Range: 128 dB (–60 dBFS Input, BW = 20 Hz to fS/2, A-Weighted)
  • THD+N: –125 db (0 dBFS Input, BW = 20 Hz to fS/2)
  • Attenuates Sampling and Reference Clock Jitter
  • High Performance, Linear Phase Digital Filtering
  • Flexible Audio Serial Ports
  • Master or Slave Mode Operation
  • Supports I2S, Left Justified, Right Justified, and TDM Data Formats
  • Supports 16, 18, 20, or 24-Bit Audio Data
  • TDM Mode Allows Daisy Chaining of up to Eight Devices
  • Supports 24-, 20-, 18-, or 16-Bit Input and Output Data
  • All Output Data Is Dithered From the Internal 28-Bit Data Path
  • Low Group Delay Option for Interpolation Filter
  • Soft Mute Function
  • Bypass Mode
  • Power Down Mode
  • Operates From a Single 3.3-V Power Supply
  • Small SSOP-28 Package
  • Pin Compatible With the SRC4192, AD1895, and AD1896
  • APPLICATIONS Digital Mixing Consoles Digital Audio Workstations Audio Distribution Systems Broadcast Studio Equipment High-End A/V Receivers General Digital Audio Processing
  • Digital Mixing Consoles
  • Digital Audio Workstations
  • Audio Distribution Systems
  • Broadcast Studio Equipment
  • High-End A/V Receivers
  • General Digital Audio Processing

产品概述

The SRC4190 is an asynchronous sample rate converter designed for professional and broadcast audio applications. The SRC4190 combines a wide input-to-output sampling ratio with outstanding dynamic range and low distortion. Input and output serial ports support standard audio formats, as well as a Time Division Multiplexed (TDM) mode. Flexible audio interfaces allow the SRC4190 to connect to a wide range of audio data converters, digital audio receivers and transmitters, and digital signal processors.The SRC4190 is a standalone pin-programmed device, with control pins for mode, data format, mute, bypass, and low group delay functions.The SRC4190 may be operated from a single 3.3-V power supply. A separate digital I/O supply (VIO) operates over the 1.65-V to 3.6-V supply range, allowing greater flexibility when interfacing to current and future generation signal processors and logic devices. The SRC4190 is available in an SSOP-28 package.

SRC4190IDBRQ1 数据手册

数据手册 说明 数量 操作
SRC4190IDBRQ1

IC 192KHZ SAMPL RATE CONV 28SSOP

30页,1.24M 查看
